Service Manual for WP6 Diesel Engine
50
335 Disassembly, Inspection, Maintenance and Assembly of Oil Sump
3351 Exploded View of Oil Sump

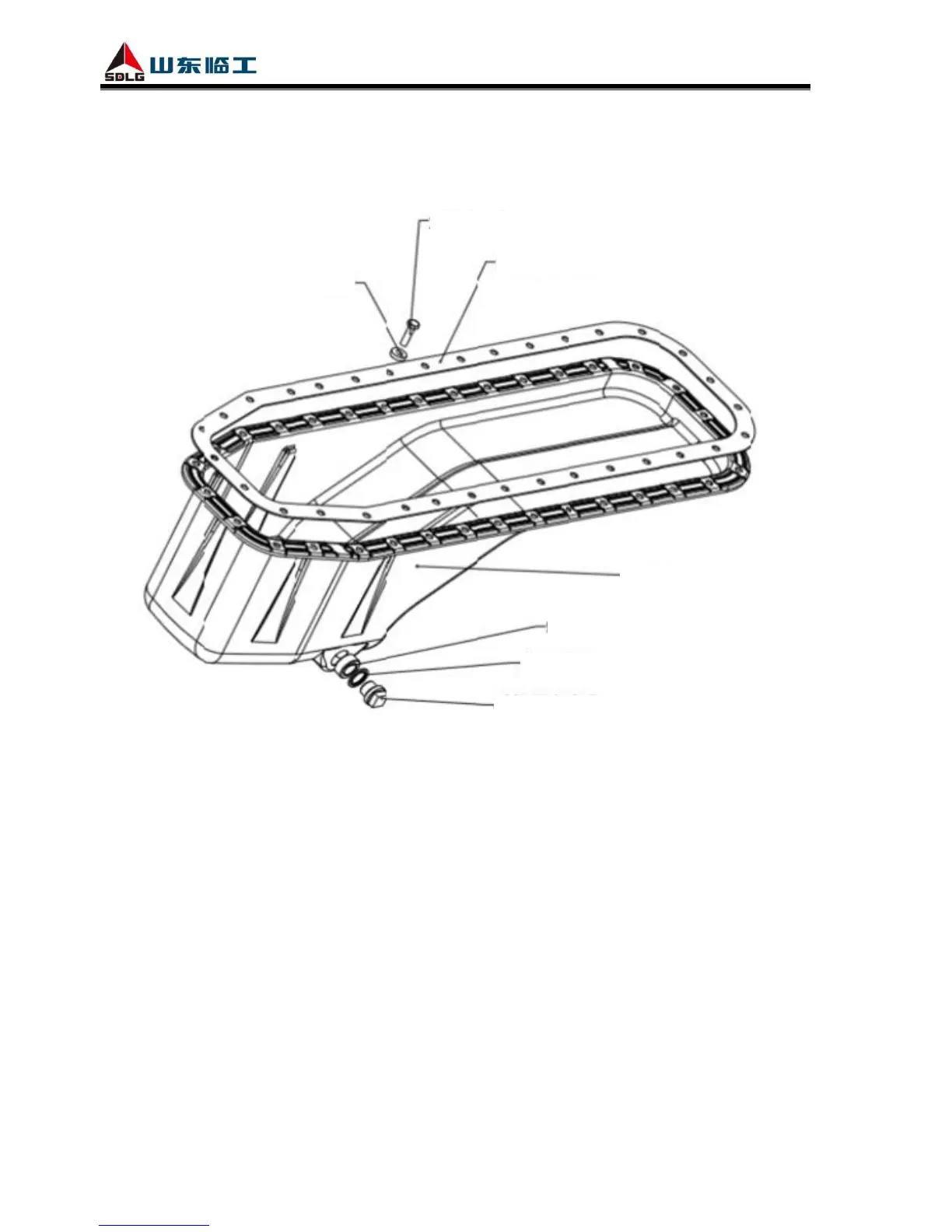

Fig. 3-21 Exploded view of oil sump
3352 Steps to Disassemble Oil Sump
(1) Turn over the engine to keep oil sump upward (key point 1);
(2) Remove oil sump fastening bolts (key point 2);
(3) Take down oil sump and sealing gaskets;
(4) Remove the combination gasket and magnetic screw plug assembly.
3353 Inspection and Maintenance of Oil Sump
Key point 1:
Disassembling:
Before the disassembling, all engine oil should be drained out. Put an engine oil container under
drain screw plug of oil sump, screw off the plug with a plug wrench to drain oil out.
To Next Page
