Service Manual for WP6 Diesel Engine
89
39 Lubricating System
391 Disassembly and Assembly of Lubricating System
3911 Exploded View of Lubricating System
Main oil gallery pressure limiting
valve
Engine oil filter
Engine oil cooler
Engine oil filter seat
Engine oil pump
Engine oil sump
Lubricating oil inlet pipe assembly

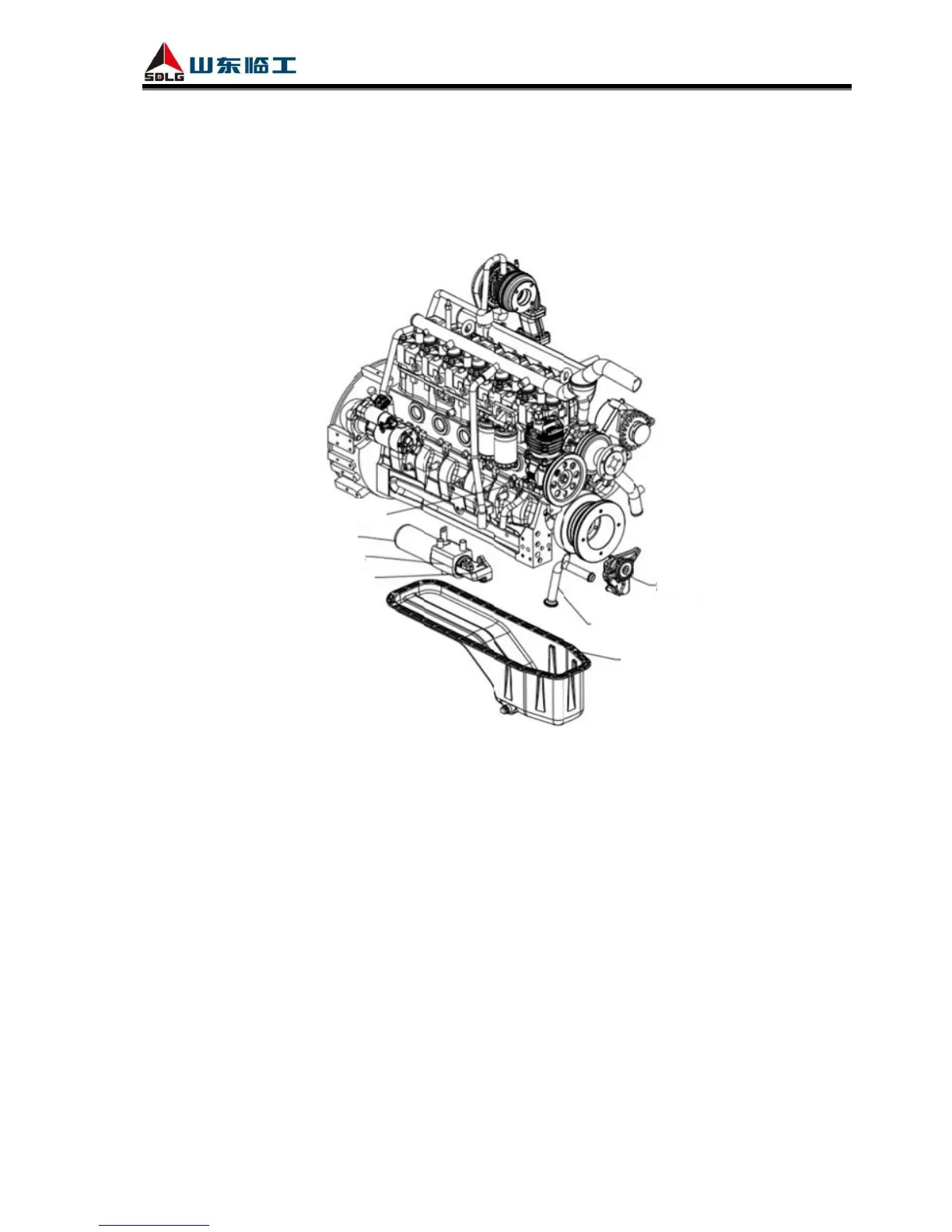

Fig. 3-52 Exploded view of lubricating system
3912 Steps to Disassemble Lubricating System
(1) Remove oil sump, refer to disassembly of oil sump for details.
(2) Remove crankshaft pulley, damper and the hexagonal head plug on gear room, refer to
disassembly of crank-rod mechanism for details.
(3) Remove engine oil pump.
(4) Remove main oil gallery pressure limiting valve.
(5) Remove engine oil filter.
(6) Remove engine oil cooler.
3913 Steps to Assemble Lubricating System
Assembling steps are contrary to disassembling ones.
