Service Manual for WP6 Diesel Engine
73
(6) Remove intake pipe fixing bolts, take down the pipe and gaskets, refer to 362 Disassembly,
Inspection, Maintenance and Assembly of Intake Pipe for details.
3613 Steps to Assemble Intake and Exhaust System
Assembling steps are contrary to disassembling ones.
362 Disassembly, Inspection, Maintenance and Assembly of Intake Pipe
3621 Exploded View of Intake Pipe

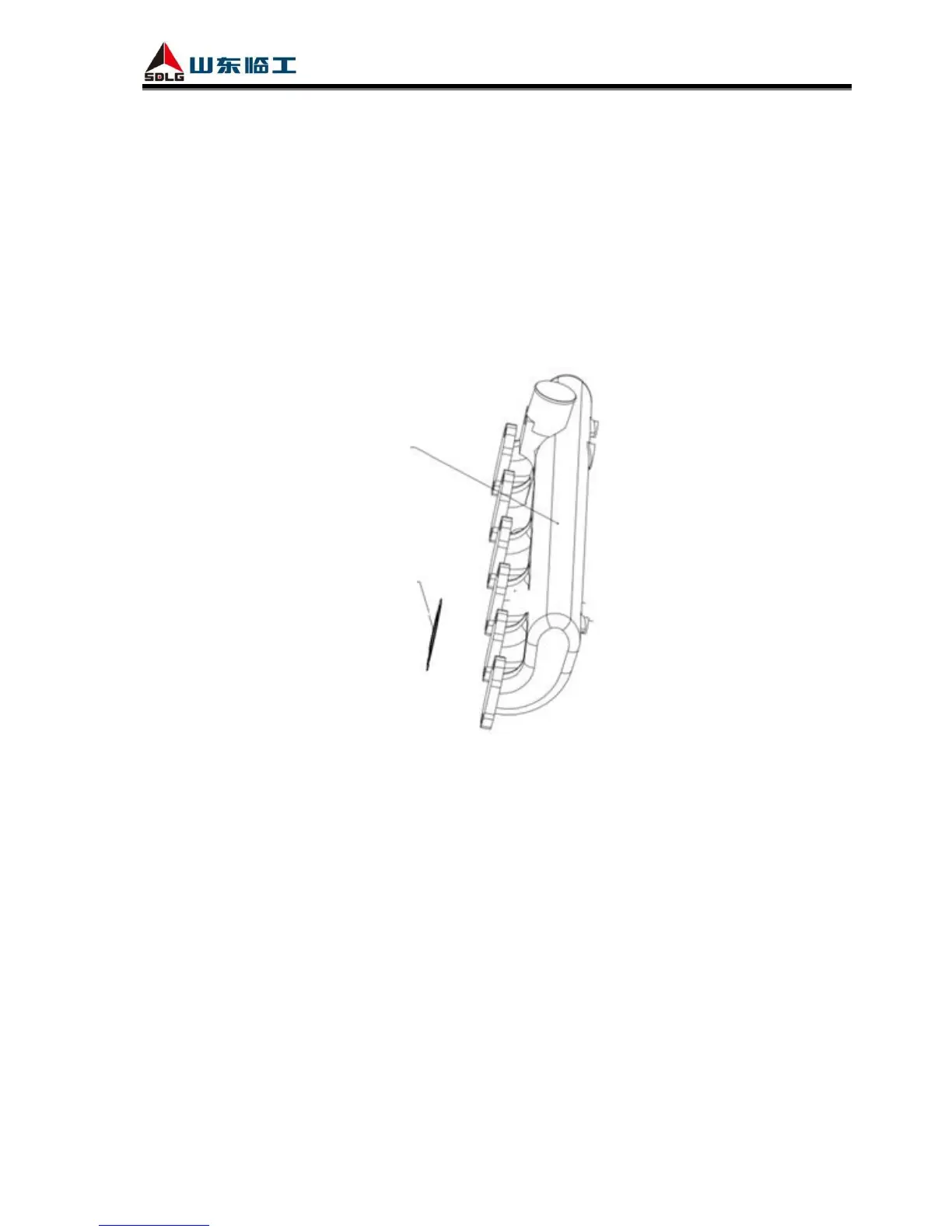

Fig. 3-40 Exploded view of intake pipe
3622 Steps to Disassemble Intake Pipe
(1) Remove intake pipe fixing bolts, take down the pipe and gaskets.
3623 Inspection and Maintenance of Intake Pipe
(1) Check whether there is weld defect on intake pipe, replace the pipe if necessary.
(2) Check intake pipe gasket for deformation and dilaceration, replace it if necessary.
3624 Steps to Assemble Intake Pipe
Assembling steps are contrary to disassembling ones. Recommended tightening torque for intake
pipe fixing bolts is 23Nm.
To Next Page
