Service Manual for WP6 Diesel Engine

325 Disassembly, Inspection, Maintenance and Assembly of Oil-Gas

Separator

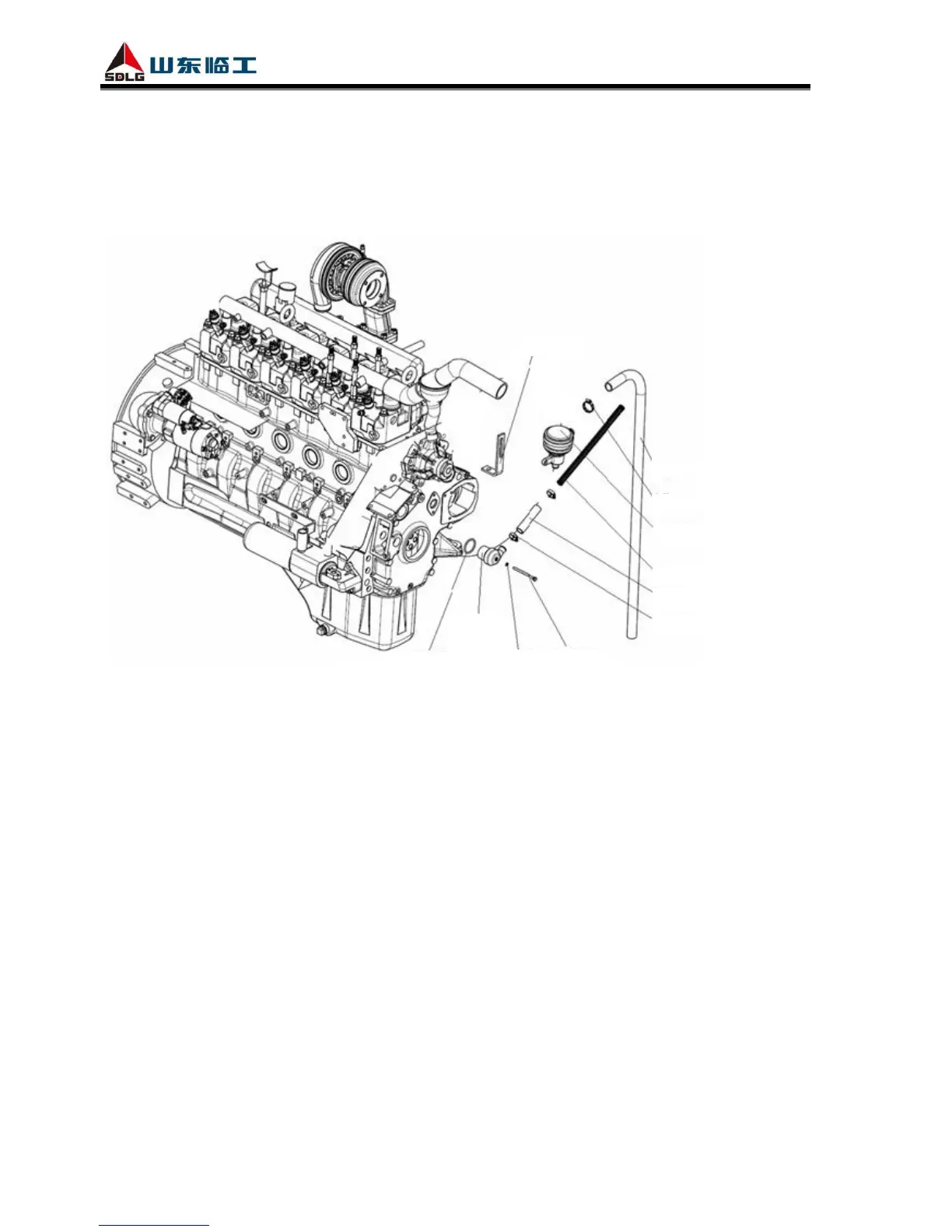

3251 Exploded View of Oil-Gas Separator

Support

Oil connecting

hose

Clamp

Oil-gas separator

module

Spring

Hose

Hose clamp

O-shape

seal ring

Breather

Sealing

gasket

Hexagon

bolt

Fig. 3-8 Exploded view of oil-gas separator

3252 Steps to Disassemble Oil-Gas Separator

(1) Loosen all clamps;

(2) Disconnect oil connecting hose;

(3) Remove fixing bolts of oil-gas separator;

(4) Remove oil-gas separator and its support, take the spring out;

(5) Disconnect the hose that used to connect oil-gas separator and breather;

(6) Screw off hexagon bolt, and remove breather, O-shape seal ring, etc.

3253 Inspection and Maintenance of Oil-Gas Separator

(1) Check each rubber hose for aging crack, replace the cracked hose;

(2) Check external surface of breather and oil-gas separator for crack, if the crack is very deep that

already or may lead to leakage, then the cracked part should be replaced;
