Service Manual for WP6 Diesel Engine
78
37 Fuel System
371 Disassembly and Assembly of Fuel System
3711 Exploded View of Fuel System

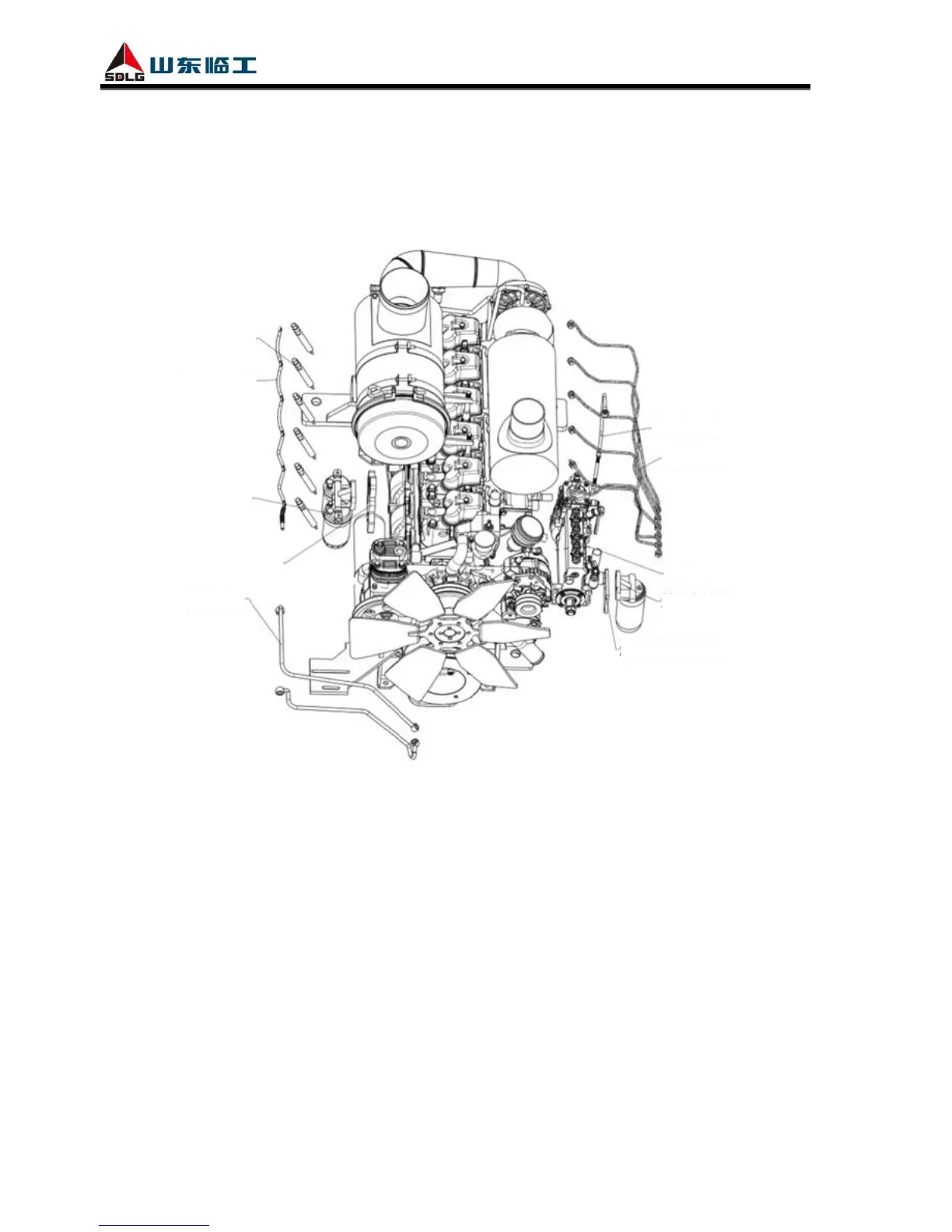

Fig. 3-45 Exploded view of fuel system
3712 Steps to Disassemble Fuel System
(1) Disconnect all external pipes and wiring harnesses of fuel system
(2) Remove low pressure fuel pipe module, refer to disassembly of low pressure fuel pipe for
details.
(3) Remove air pipe of smoke limiter.
(4) Remove intake and exhaust pipe module, refer to disassembly of intake and exhaust pipe for
details.
(5) Remove high pressure fuel pipe module.
(6) Remove filter module, refer to disassembly of filter for details.
(7) Remove injector module, refer to disassembly of injector for details.
