Service Manual for WP6 Diesel Engine
72
36 Intake and Exhaust System
361 Disassembly and Assembly of Intake and Exhaust System
3611 Exploded View of Intake and Exhaust System

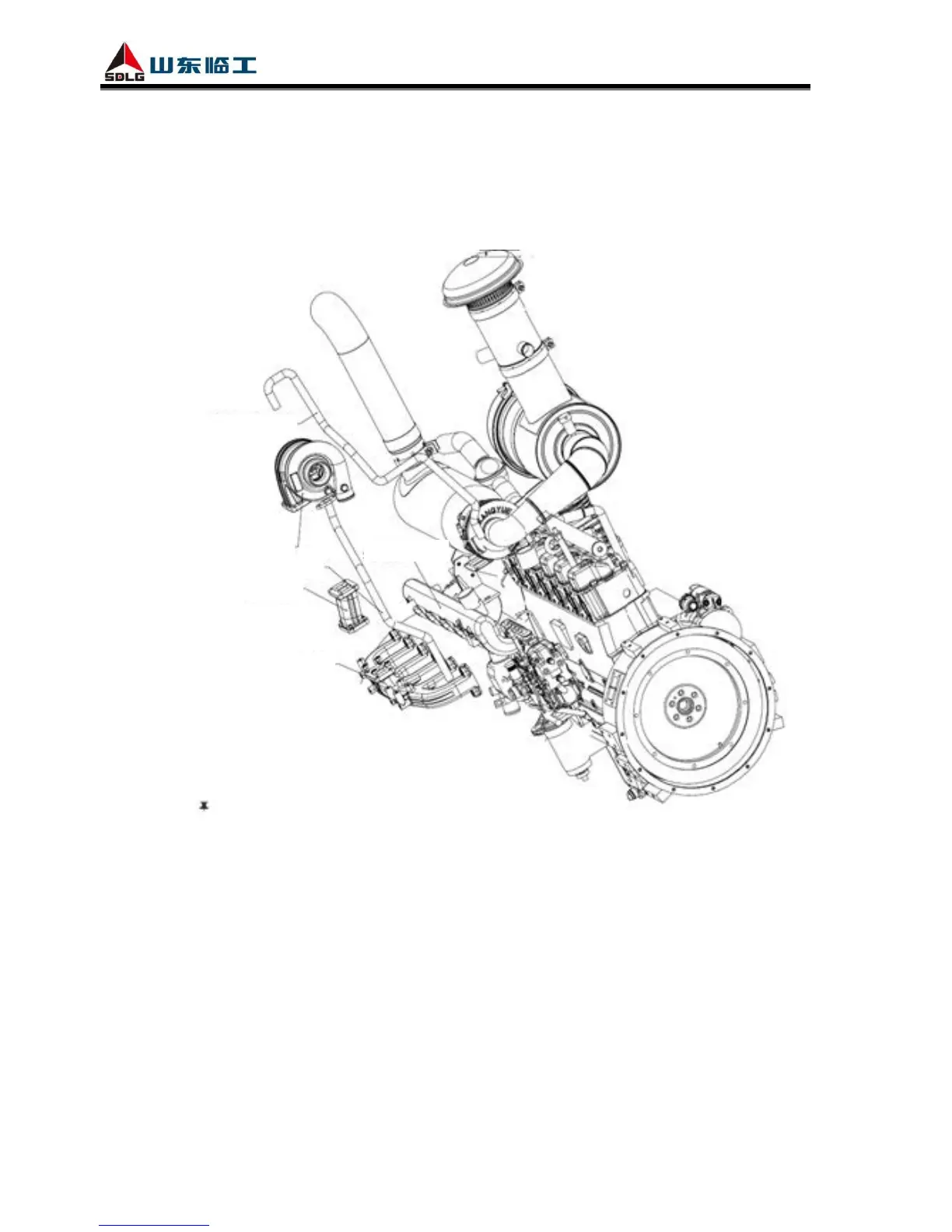

Fig. 3-39 Exploded view of valve intake and exhaust system
3612 Steps to Disassemble Intake and Exhaust System
(1) Loosen air filter fixing bolts and hose clamps, take down air filter and hoses.
(2) Loosen clamps of air circuit connecting hose, take down turbocharger compressor outlet hose.
(3) Remove fixing bolts of turbocharger oil inlet and outlet pipes, take down the pipes and gaskets.
(4) Remove tail pipe fixing bolts and turbocharger fixing bolts, take down turbocharger.
(5) Remove heat shield bolts and heat shield orderly; Screw off exhaust pipe fixing bolts, take
down the pipe and gaskets, refer to 363 Disassembly, Inspection, Maintenance and
Assembly of Exhaust Pipe for details.
