Service Manual for WP6 Diesel Engine
97
3112 Disassembly, Inspection, Maintenance and Assembly of Generator
31121 Exploded View of Generator

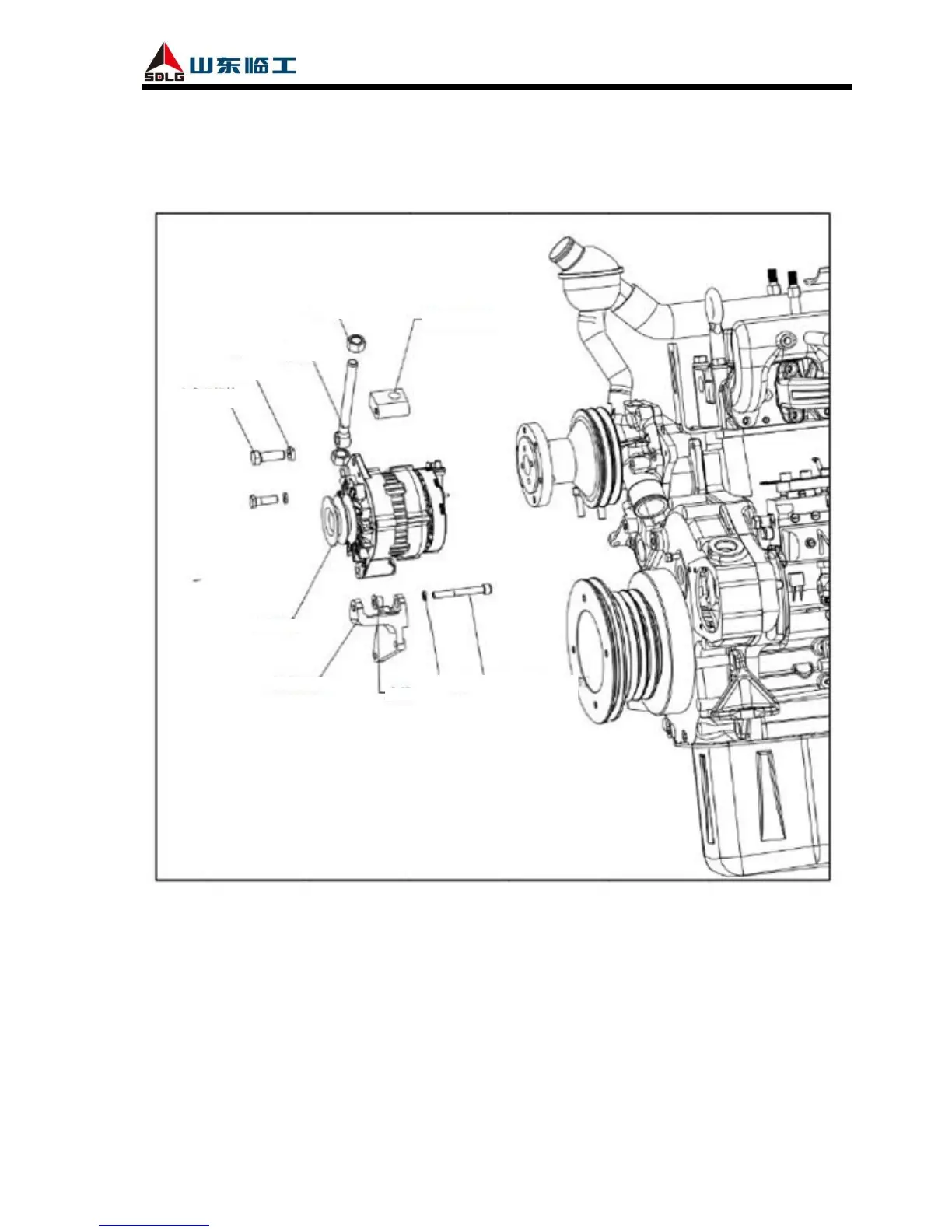

Fig. 3-60 Exploded view of generator
31122 Steps to Disassemble Generator
(1) Remove generator draw-in nut and connecting bolt and nut of draw-in bolt pad, take down the
nuts, draw-in bolt and draw-in bolt pad;
(2) Remove the other generator fixing bolt, rotate the generator to remove the belt, take down the
generator.
