Service Manual for WP6 Diesel Engine
30
323 Disassembly, Inspection, Maintenance and Assembly of Cylinder
Cover
3231 Exploded View of Cylinder Cover
Cylinder cover shield
Cylinder cover shield gasket
Cylinder cover bolt
Cylinder cover
Rocker seat module
Pipe joint module
Bowl shape plug
Exhaust valve
Intake valve
Cylinder cover gasket
Valve rod seal cartridge

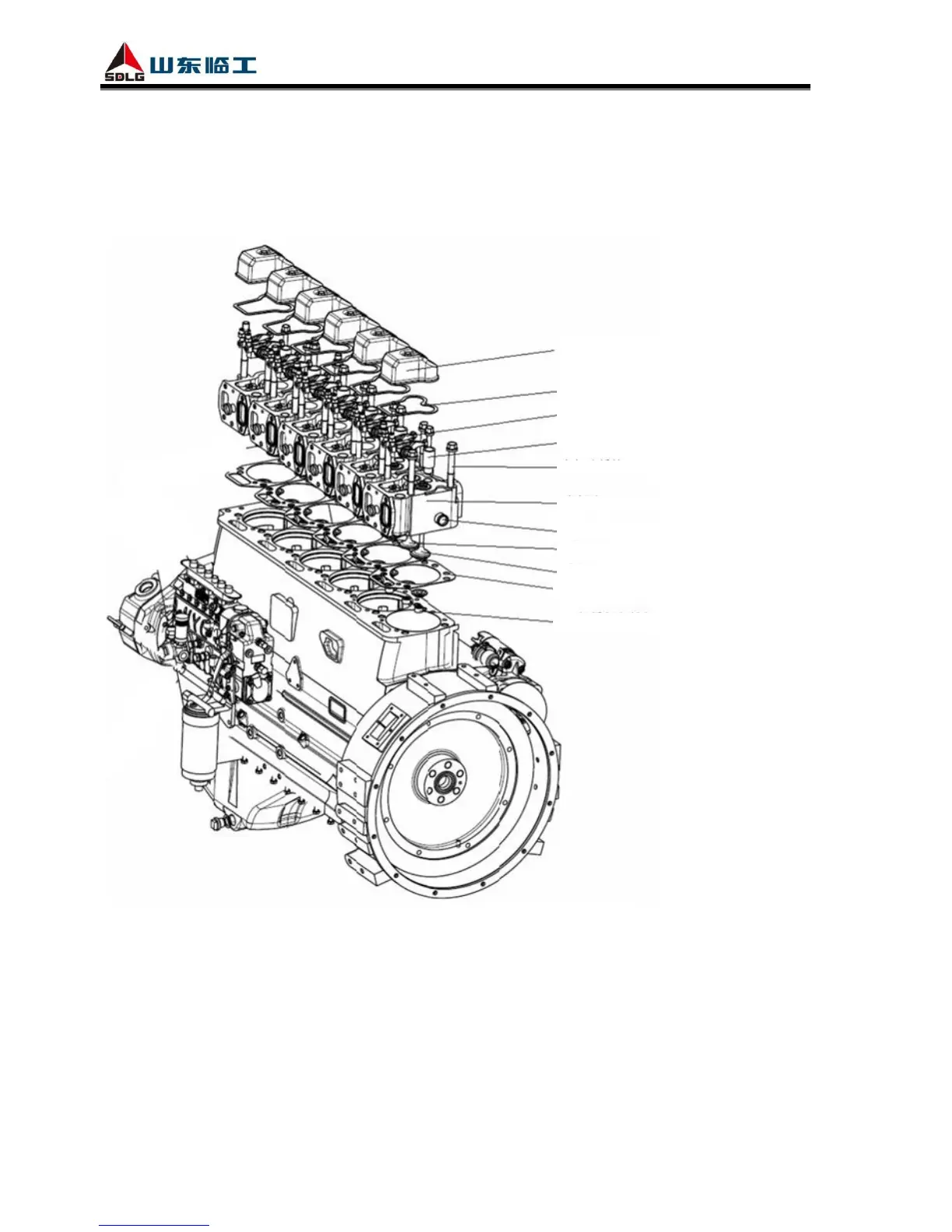

Fig. 3-3 Exploded view of cylinder cover
3232 Steps to Disassemble Cylinder Cover
(1) Remove cylinder cover shield, refer to disassembly of cylinder cover shield for details;
(2) Remove the injectors, refer to disassembly of fuel system for details;
(3) Screw off cylinder cover bolts, removal is the reverse of installation (refer to Fig. 3.6);
(4) Pull the cover vertically up to take it down (the injectors must be removed in advance to
