Service Manual for WP6 Diesel Engine
28
322 Disassembly, Inspection, Maintenance and Assembly of Cylinder
Cover Shield

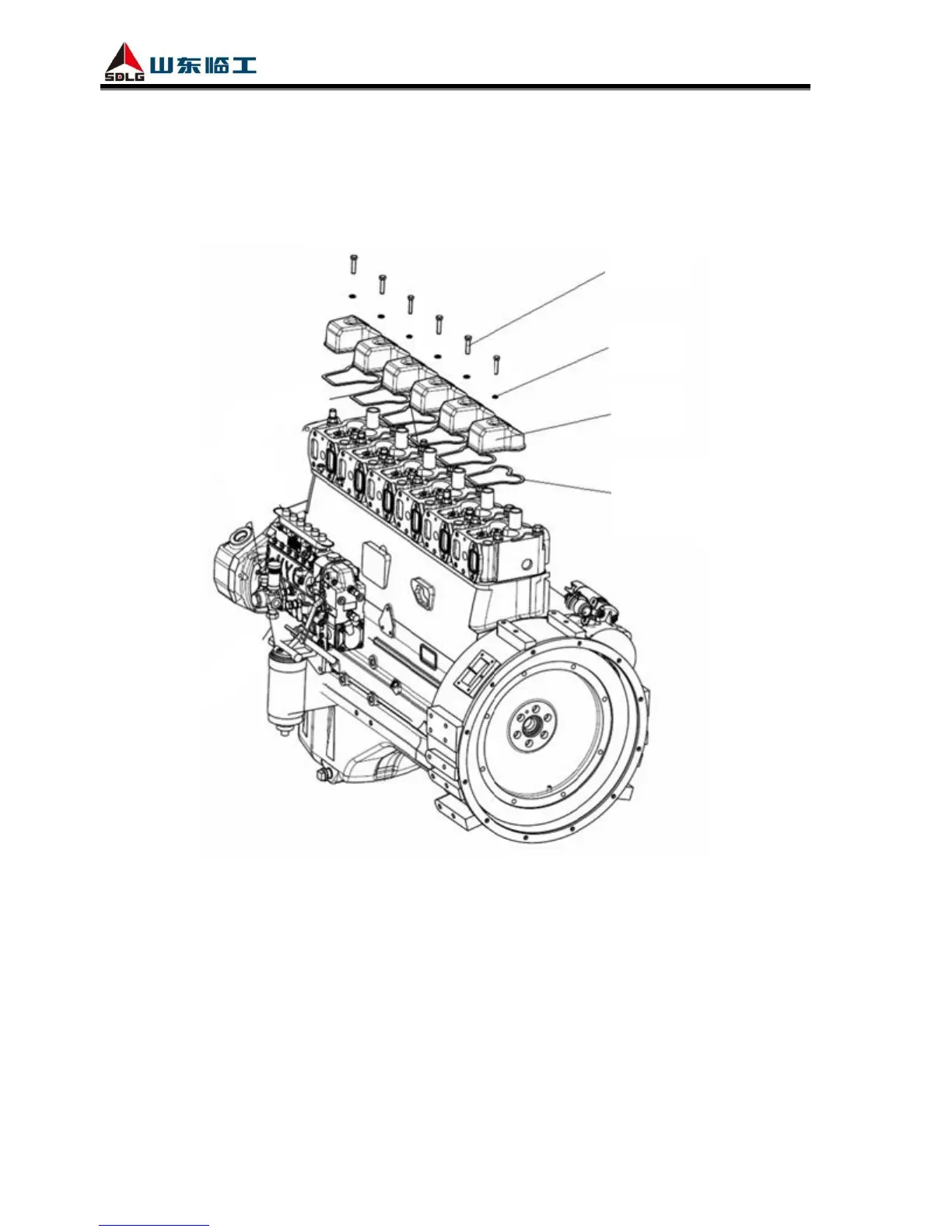

3221 Exploded View of Cylinder Cover Shield
Fig. 3-2 Exploded view of cylinder cover shield
3222 Steps to Disassemble Cylinder Cover Shield
(1) Screw off cylinder cover shield bolts orderly;
(2) Pull the shield vertically up to take it and its gaskets down.
3223 Inspection and Maintenance of Cylinder Cover Shield
(1) Check whether there is damage like crack on the shield, a cracked shield must be replaced;
(2) If there is leakage in cylinder cover shield gasket, then the gaskets should be checked and all
To Next Page
