3113 Disassembly, Inspection, Maintenance and Assembly of Air
Compressor
31131 Exploded View of Air Compressor

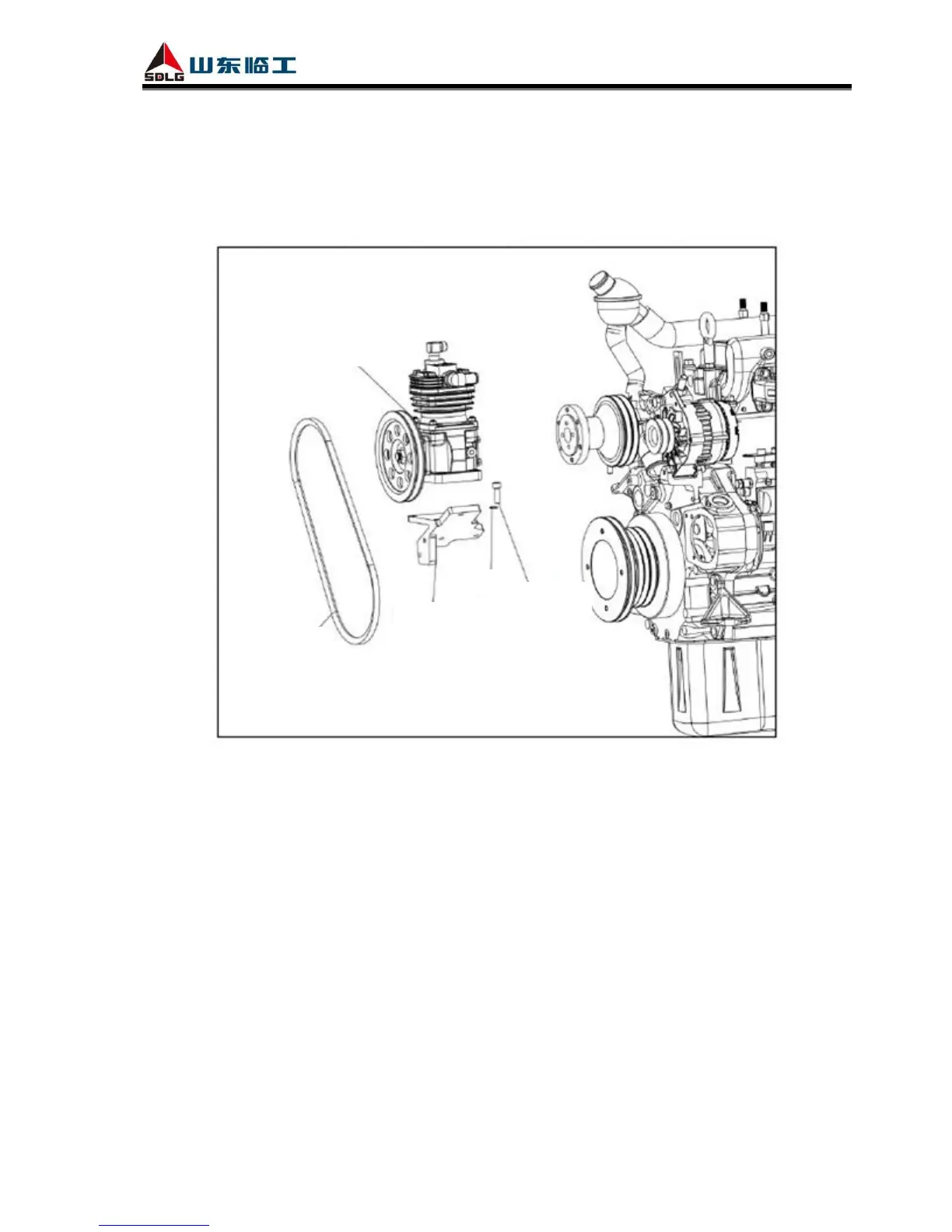

Fig. 3-62 Exploded view of air compressor
31132 Steps to Disassemble Air Compressor
(1) Remove air compressor belt;
(2) Remove the four bolts and gaskets that used to fix air compressor on support.
(3) Take down air compressor and remove air compressor support.
31133 Inspection and Maintenance of Air Compressor
(1) Air compressor doesn’t produce compressed air.
Fault phenomenon: No compressed air comes out from air compressor.
Possible causes:
1) Compressor relief valve is jammed, valve plate is deformed or broken.
To Next Page
