SDLG WP6 User Manual

Service Manual for WP6 Diesel Engine
45
333 Disassembly, Inspection, Maintenance and Assembly of Engine Front
Cover
3331 Exploded View of Engine Front Cover
Engine front cover
Plug
O-shape seal ring
Breather
O-shape seal ring
Spring washer
Shaft
Radial seal ring (front oil seal)
Hexagon bolt
Cover plate
Hexagon bolt
Hexagon bolt
Hexagon bolt
Hexagon bolt

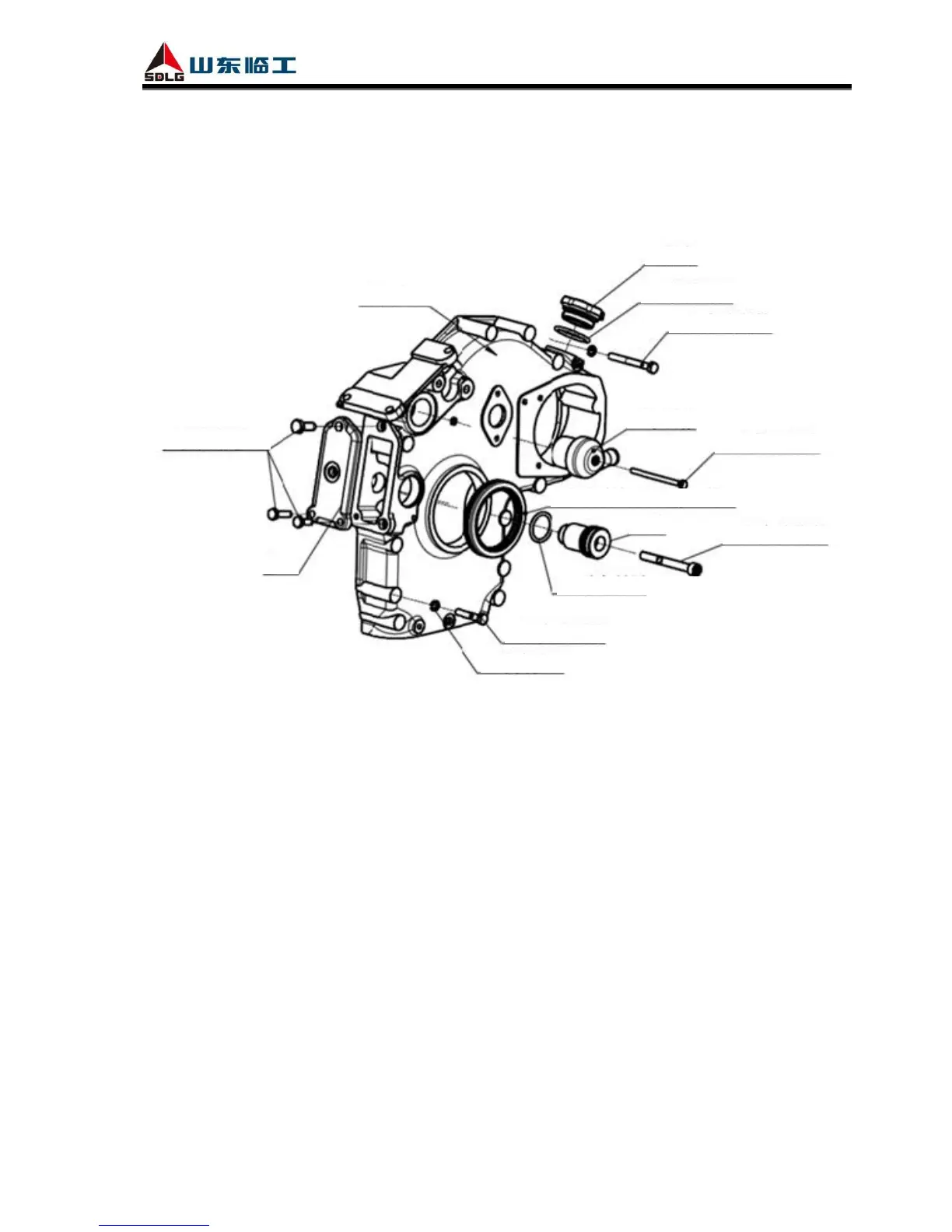

Fig. 3-14 Exploded view of engine front cover
3332 Steps to Disassemble Engine Front Cover
(1) Remove breather;
(2) Remove cover plate;
(3) Remove the plug;
(4) Remove engine front cover (key point 1);
(5) Remove radial seal ring (key point 2).
3333 Inspection and Maintenance of Engine Front Cover
Key point 1:
Inspection:
Check and make sure engine front cover is clean, no crash damage and burr on the fitting surface,
ensure the seal rings are in good condition.
