354 Disassembly, Inspection, Maintenance and Assembly of Valve Tappet

and Pushrod

3541 Exploded View of Valve Tappet and Pushrod

Cylinder cover

Engine block

Tappet

Pushrod

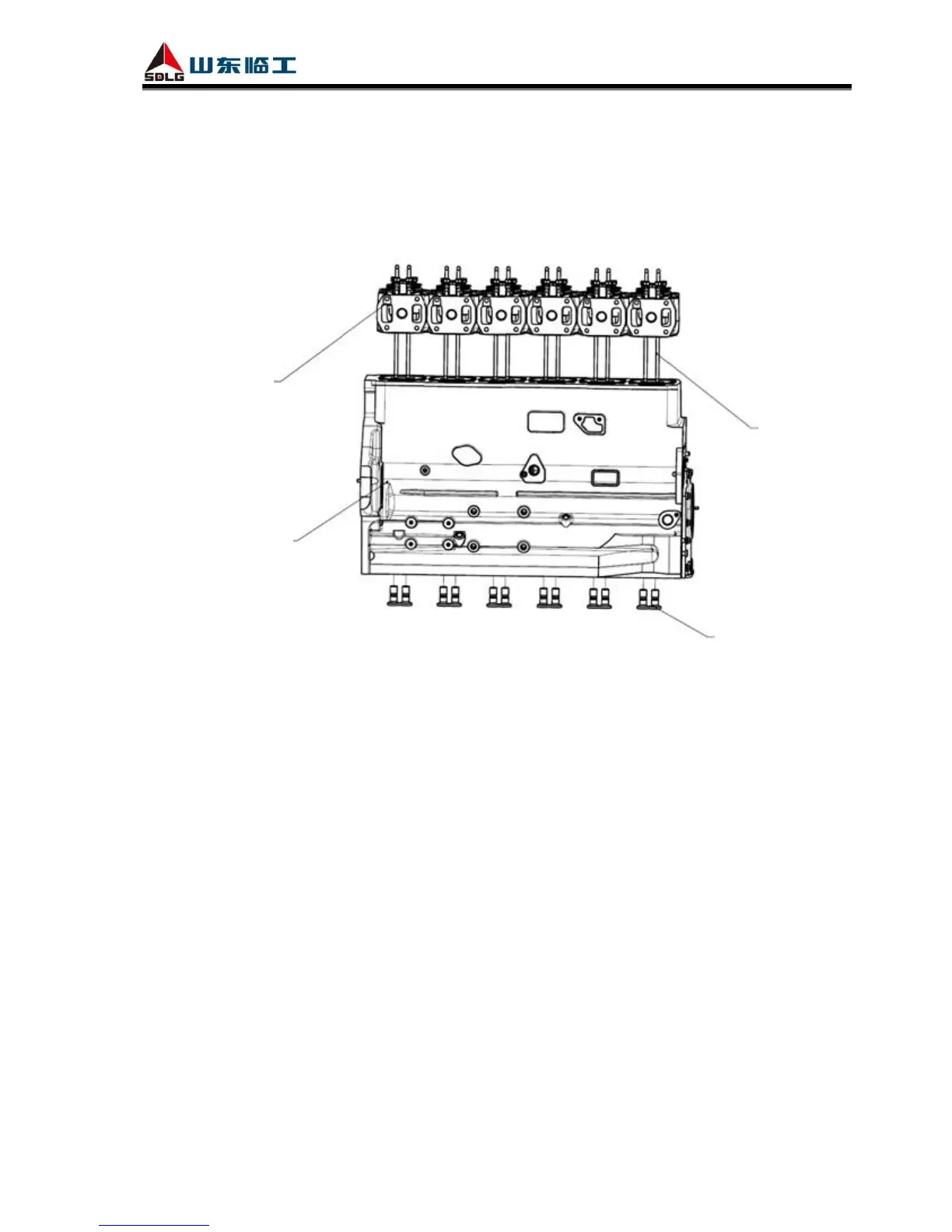

Fig. 3-37 Exploded view of valve tappet and pushrod

3542 Steps to Disassemble Valve Tappet and Pushrod

(1) After removing rockers and rocker shafts, directly take out pushrod, place them orderly;

(2) After removing camshaft, directly take out valve tappet, place them orderly;

3543 Inspection and Maintenance of Valve Tappet and Pushrod

(1) Clean up valve tappet and pushrod;

(2) Check whether oil channels of valve tappet and pushrod are smooth;

(3) Check whether pushrod is crooked, check wear condition of its outside surface;

(4) Check whether pushrod two ends are worn;

(5) Check whether valve tappet surface and undersurface are worn;

(6) Check whether valve tappet inner socket head is worn.
