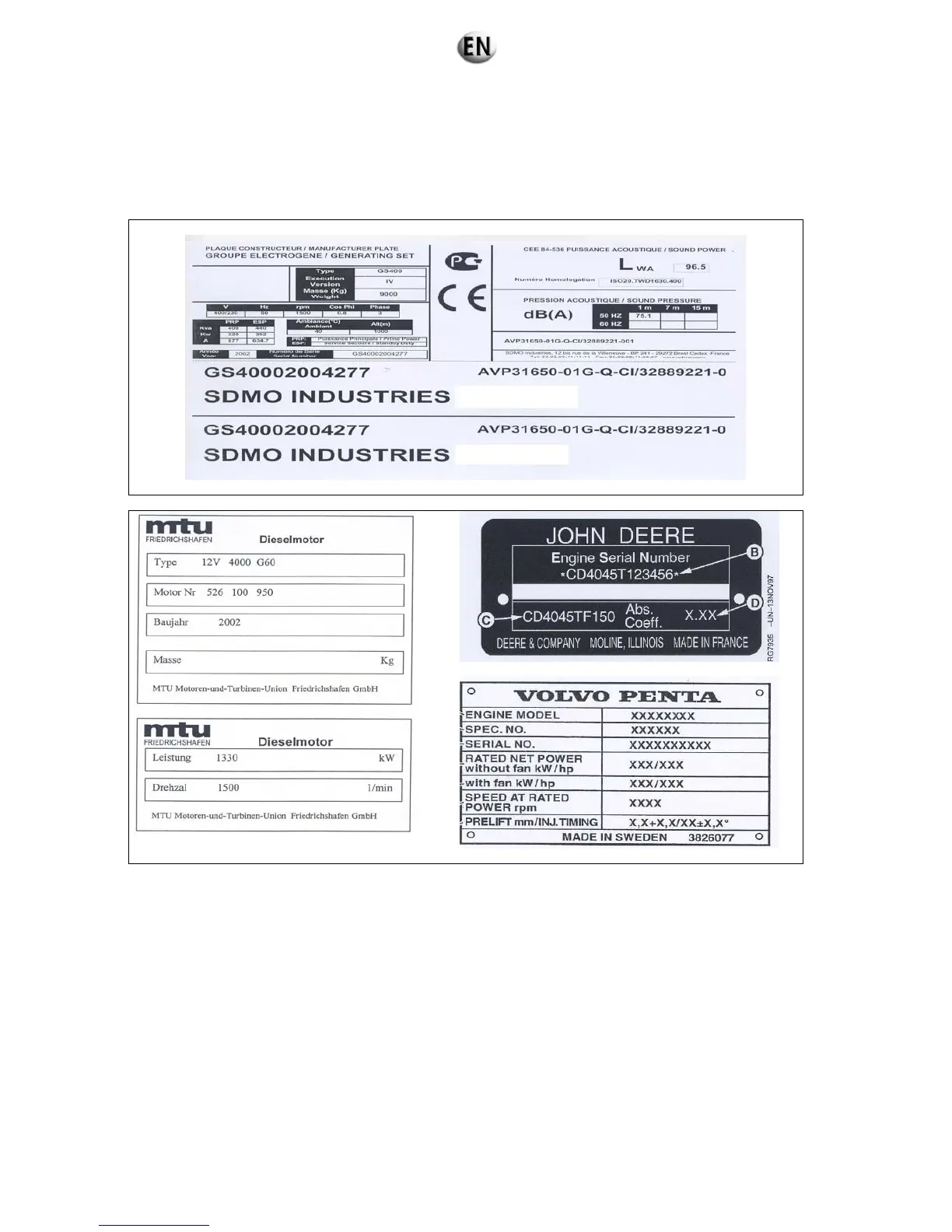

1.4. Identifying
sets
Generating sets and their com
ponents are i
dentified by means
of identification plates.
The precise rules for i
dentifying each major compo
nent (engine,
alternator etc.) are s
et out
in each manufacturer's documents
contained in this manual.
Examples of identification p
lates
Generating set
Engines
Figure 1.2
: Examples of identificatio
n plates
12/285
13
15
