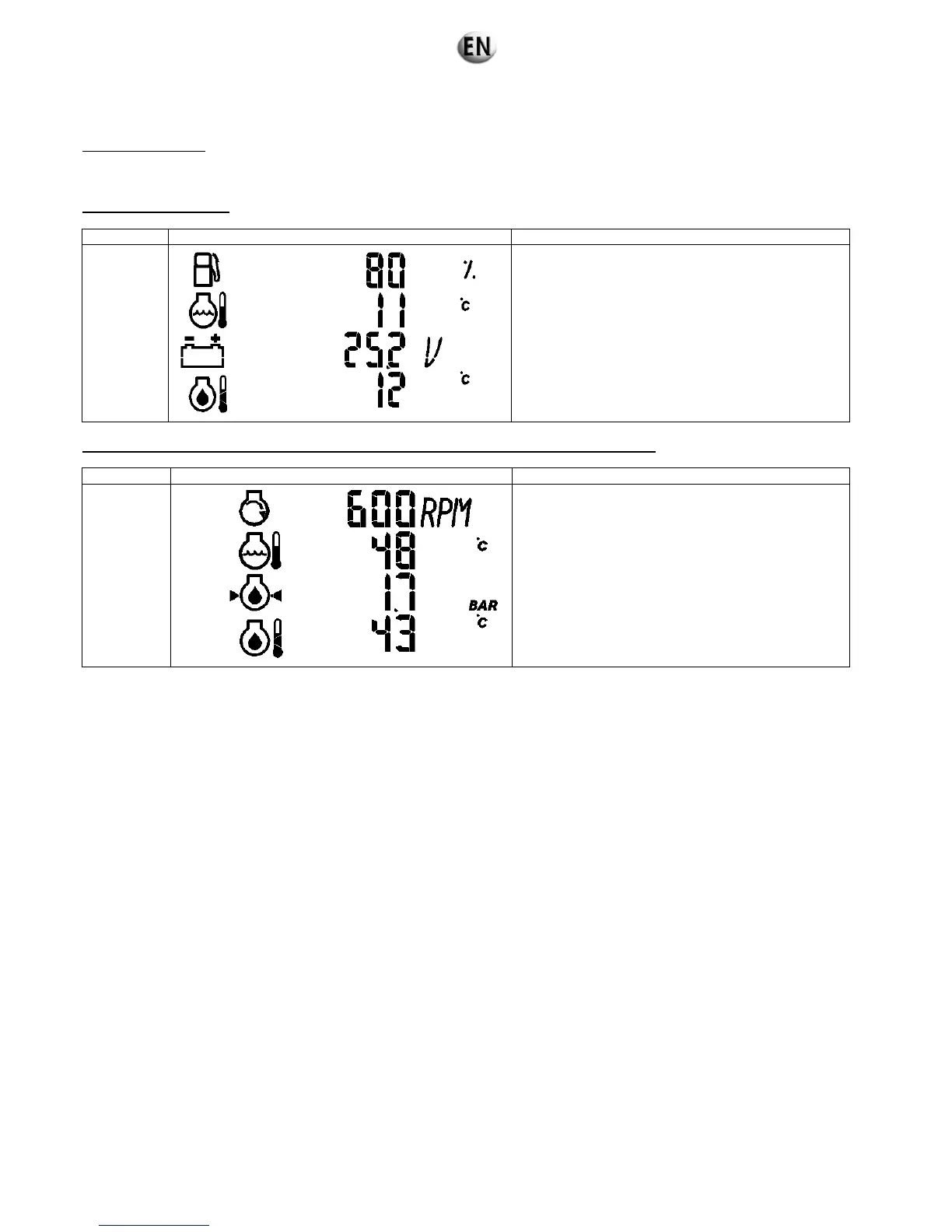

6.2.1.5. Description of the pictograms in zone 3
Pictograms in zone 3
All the pictograms in these zones are activated when TELYS is initialised. The pictograms below are given as examples.
Generating set stopped
Screen no. Pictograms Data displayed
P1
Fuel Level Indicator
Indication of Temperature of High Temperature coolant
(HT) (units according to settings menu)
Indication of Battery Voltage
Indication of Oil Temperature (units according to
settings menu)
Generating set start-up or generating set started or generating set switching off in progress
Screen no. Pictograms Data displayed
P2
Engine Speed Indication
Indication of Temperature of High Temperature coolant
(units according to settings menu)
Indication of Oil Pressure (units according to settings)
Indication of Oil Temperature (units according to
settings menu)
