4
LEROY-SOMER
2011.01/ h
Installation and maintenance
LSA 46.2 - 4 POLES
ALTERNATORS
3856 en -
1 - RECEIPT
1.1 - Standards and safety
measures
Our alternators comply with most
international standards.
See the EC Declaration of Incorporation on
the last page.
1.2 - Inspection
On receipt of your alternator, check that it
has not suffered any damage in transit. If
there are obvious signs of knocks, contact
the transporter (you may be able to claim
on their insurance) and after a visual
check, turn the machine by hand to detect
any malfunction.
1.3 - Identication
The alternator is identied by means of a
nameplate xed on the machine (see
drawing).
Make sure that the nameplate on the
machine conforms to your order.
The machine name is dened according to
various criteria, for example :
LSA 46.2 M5 C6/4 -
• LSA : name used in the PARTNER range
M : Marine
C : Cogeneration
T : Telecommunications
• 46.2 : machine type
• M5 : model
• C : excitation system
(C : AREP / J : SHUNT or PMG / E :
COMPOUND)
• 6/4 : winding number / number of poles.

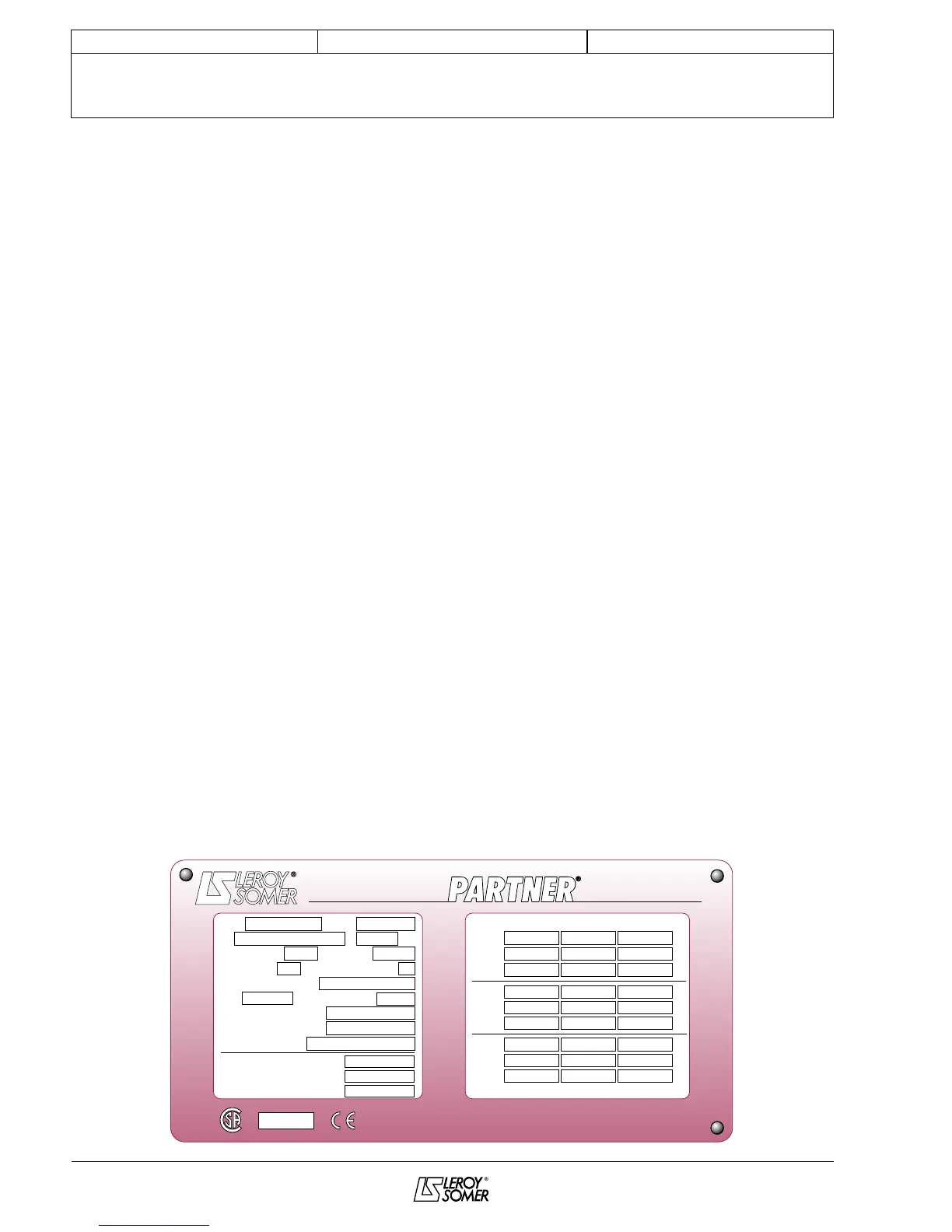

1.3.1 - Nameplate
So that you can identify your machine
quickly and accurately, we suggest you
write its specications on the nameplate
below.
1.4 - Storage
Prior to commissioning, machines should
be stored :
- Away from humidity (< 90%); after a long
period of storage, check the machine
insulation (section 3.2.1). To prevent the
bearings from becoming marked, do not
store in an environment with signicant
vibration.
1.5 - Application
These alternators are mainly designed to
produce electricity in the context of
applications involving the use of
generators.
1.6 - Contraindications to use
Use of the machine is restricted to operating
conditions (environment, speed, voltage,
power, etc) compatible with the characteri-
stics indicated on the nameplate.
ALTERNATEURS ALTERNATORS
LSA Date
N 5700 125897 A15 Hz
Min
-1
/R.P.M. 1500 Protection
Cos Ø /P.F. 0,8 Cl. ther. / Th.class
Régulateur/A.V.R. R 438 B
Altit. m Masse / Weight
Rlt AV/D.E bearing 6302 2 RS C3
Rlt AR/N.D.E bearing 6303 2 RS C3
Graisse / Grease 45g / 3600 h
Valeurs excit / Excit. values
en charge / full load
à vide / at no load
Made in France - 1 024 959/a
Tension
Voltage
Secours
Std by
40C
(*) Tension maxi. / maximum voltage
27C
PUISSANCE / RATING
Co nform e à C .E.I 60034-1. Acco rding to I .E.C 60034-1.
166631
Connex.
kVA
kW
A
kVA
kW
A
V
Ph.
Continue
Continuous
USC
216/285
