6.3.3.2. Navigation in the screens
There are three types:
the home screen,
the navigation screens,
the operation and configuration screens.

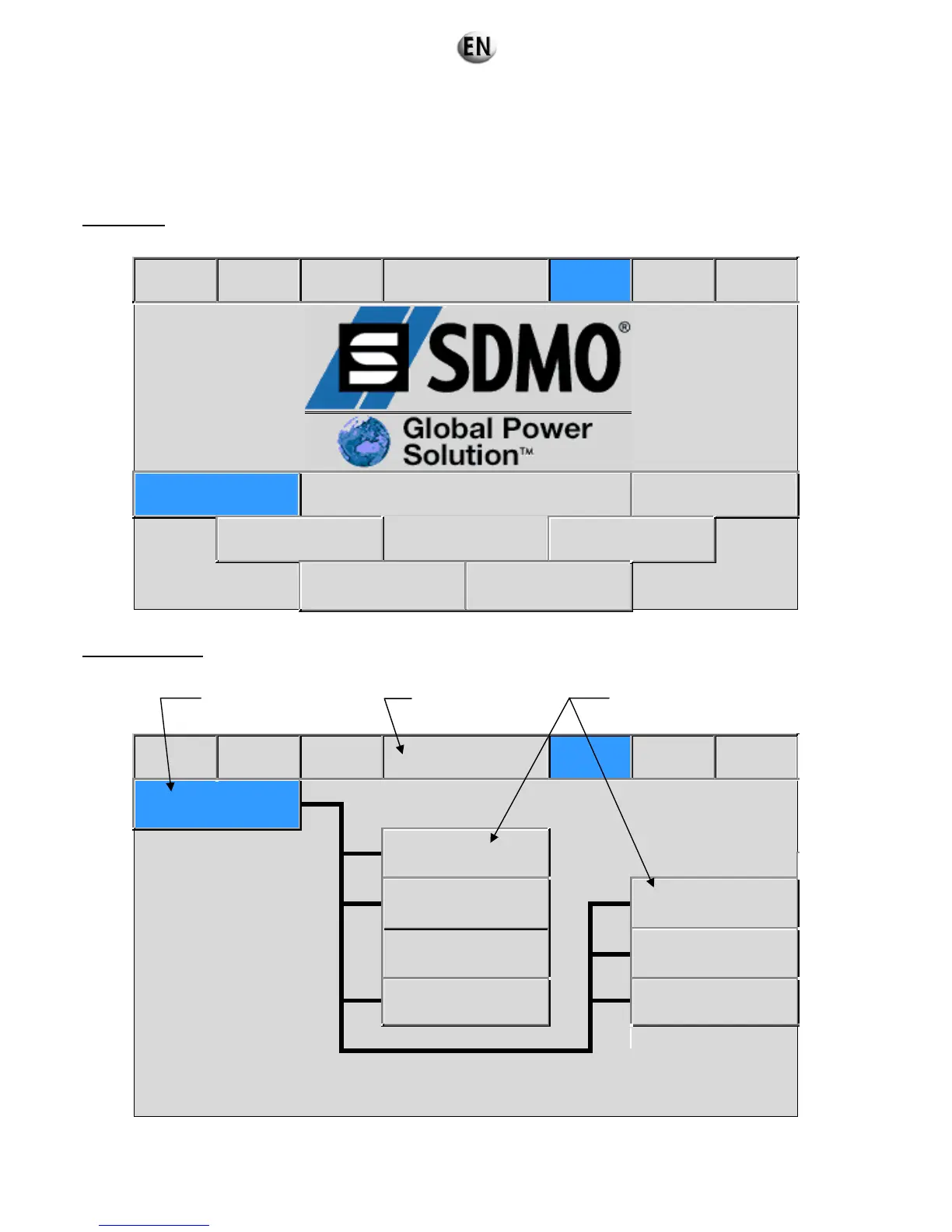

Home screen
This screen is the entry point to the system. It enables the main functions of the navigation to be accessed.
15/10/03 19:10 :00 GS 1 Home Auto Faults Alarms
- 1 -
Operation
- 6 -
System
- 2 -
Fault finding
- 5 -
Configuration
- 3 -
Archiving/Metering
-4 -
Maintenance
Navigation screens
These screens enable the various sub-menus to be accessed.
15/07/09 19:10 :00 GS 1 System Auto Faults Alarms
- 0 -
Welcome
- 1 -
Operation
- 2 -
Function keys
- 7 -
User adjustments
- 3 -
Synchro. column
- 6 -
Alarms & Faults
- 4 -
Central measurements
summary
- 5 -
Measurements
When a key is selected the lower level sub-menu appears if available or the allocated operation screen.
A sub-menu can also be accessed by pressing the corresponding key.
E.g.: by pressing key “1” on the alphanumeric keypad, you can directly access the "Operation” screen.
Title of the active menu Upper level
Lower levels
To Next Page
