6.3.6.4. Operating menus
Operation

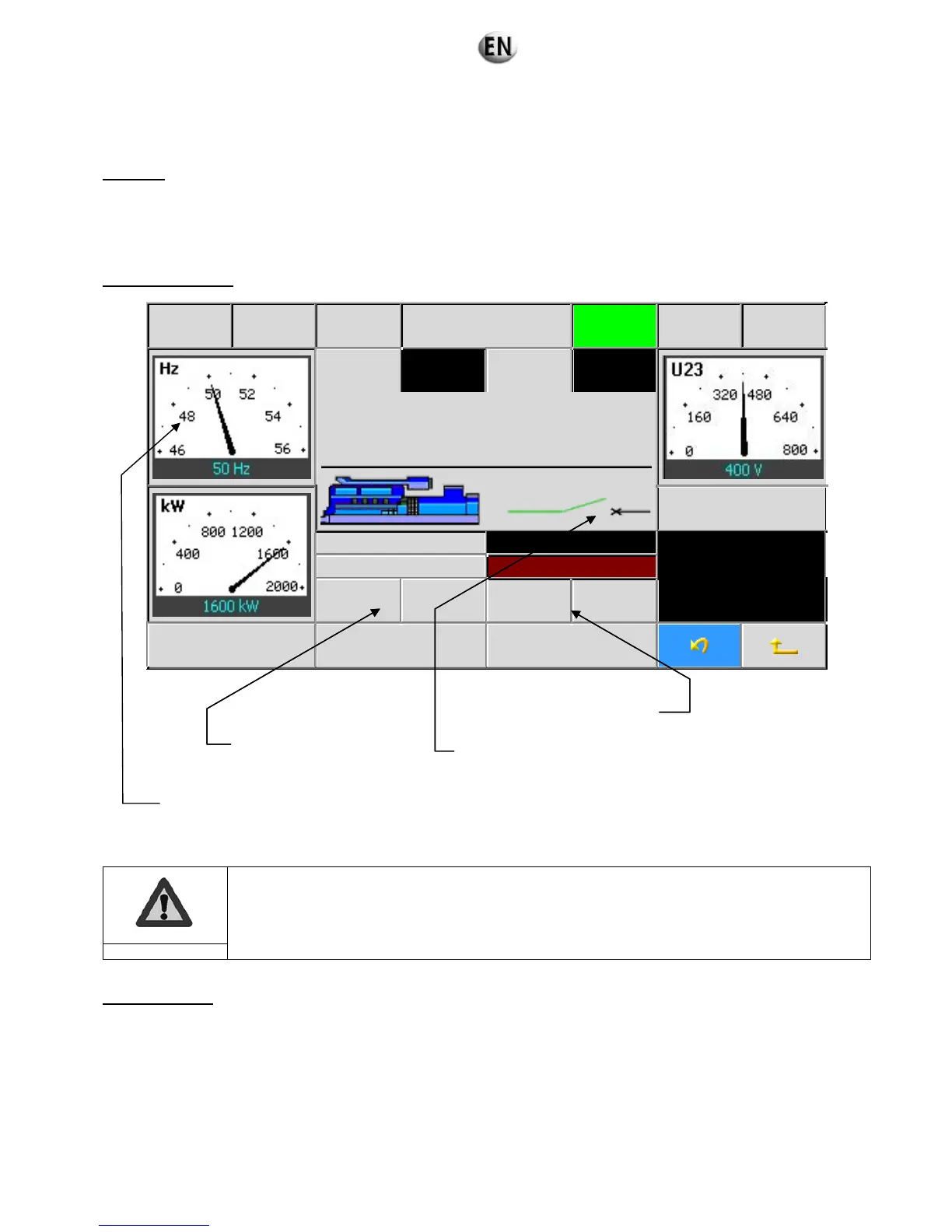

This main screen displays all the main electrical parameters of the generating set.
It is the general operating and monitoring screen for the generating set.
This screen can also be displayed by pressing the indicator displaying the operation mode of the generating set.
The frequency, U23 voltage, active and reactive power indicators, can be displayed in analog or digital form. Switching from one
mode to another is performed by pressing the desired indicator.
Navigation reference: 1.1
15/07/09 19:10 :00 GS 1 Operation Manu Faults Alarms
I1 (A) 2701 P.F. 0,9 L
Status messages
Q (kVAr)
Speed (rpm) 1505
765
Operating time: 10 :05
+ F - F + U -U
- 1 -
Function keys
- 2 -
Synchro. column
- 3 -
Central unit measure.
summary
In the needle dials the nominal values are in blue
The speed and voltage adjustment keys are only displayed for coupled applications in manual mode.
Important
Alarms and faults
This menu can also be called directly by pressing the flashing “Alarms” and “Faults” keys on the upper band.
This screen allows the user to view the list of faults present on the installation.
The first two columns give details of the date and time that the fault appeared.
The
“Status” column indicates whether the fault is still present “1”, or not present “0”.
The “
@” column gives the address of the variable associated with the fault.
The
“Text” column identifies the type of fault.
A line with a red background characterises a fault and a line with an orange background characterises an alarm.
The dial is automatically scaled beyond 46Hz
Indication de la position du départ groupe
Commande de la vitesse de
rotation du moteur
Commande de la tension de
l’alternateu
