SDMO R 340 U User Manual

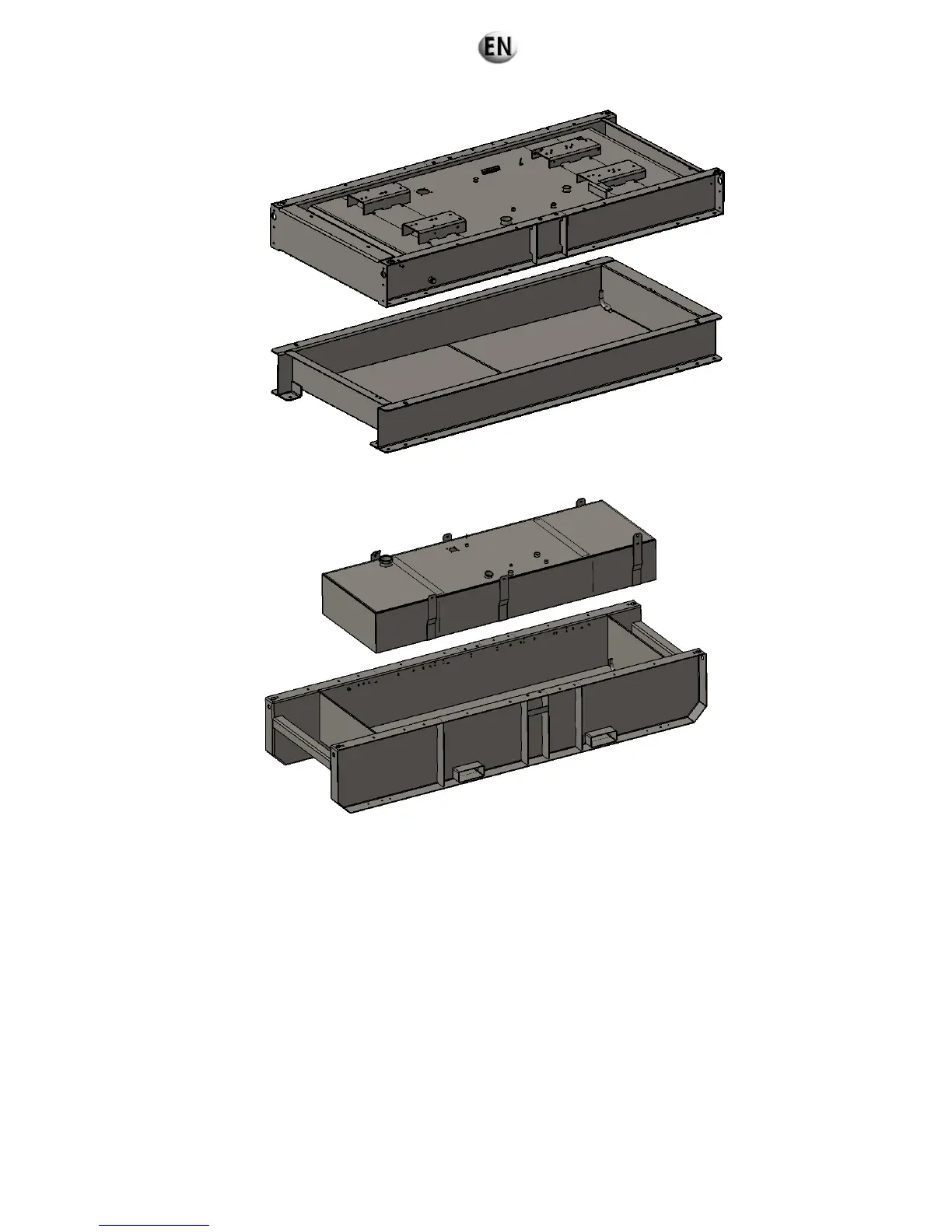

Figure 3.3: Offset fluid retention container underneath the generating set chassis.
Figure 3.4: Offset fluid retention container integrated into the chassis and tank.
Generating sets fitted with the offset tank option (DW) above also have a high level indicator in the retention container.
In all cases, the retention containers must be regularly checked to ensure they contain no fluid (fuel, oil and coolant, or rainwater or
condensation). If necessary, drain the containers either via the drain port or by using the drain pump (for containers fitted with this
pump).
 Note: Never allow these fluids to drain onto the ground; ensure they are collected in a designated container.
23/285
