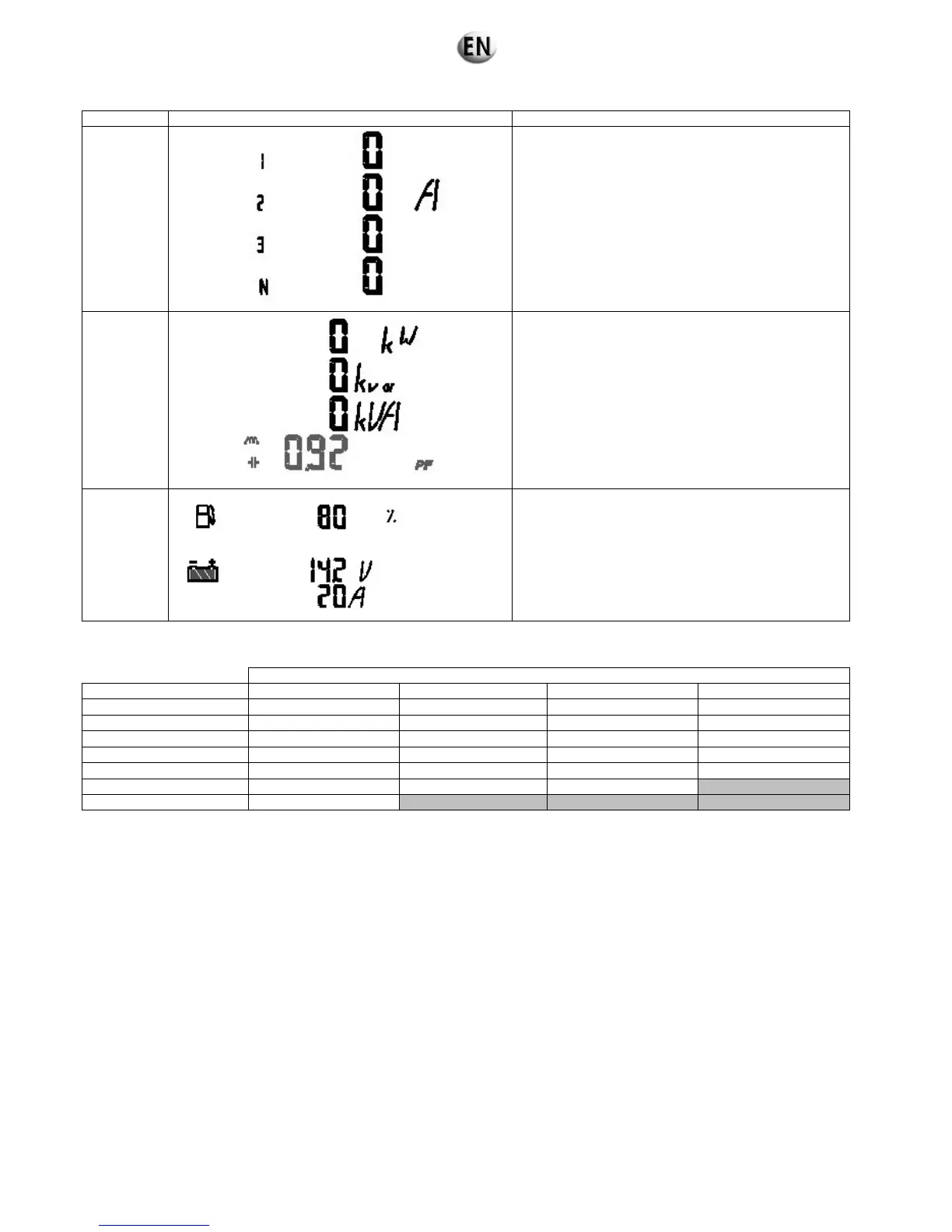

Screen no. Pictograms Data displayed
P8
Single phase Alternator current indicator
Two phase Alternator current indicator
Three phase Alternator current indicator
Neutral Alternator current indicator
P9
Total Active Power Indicator
Total Reactive Power Indicator
Total Effective Power Indicator
Total Power Factor Indicator (lagging or leading)
P10
Fuel Level Indicator
Indication of Battery Voltage
Indication of Battery Amps
Screen order of appearance according to network type with the generating set on.
Type of network
Order of appearance 3P+N 3P 2P+N 1P+N
1 P3 P3 P3 P3
2 P4 P4 P6 P7
3 P5 P8 P8 P9
4 P8 P9 P9 P2
5 P9 P2 P2 P10
6 P2 P10 P10
7 P10
Change screens by using the scrolling and selection wheel.
When the wheel is rotated clockwise, the screens scroll upwards and vice-versa.
The screens scroll in a loop.
E.g.: On three-phase + neutral network, then screen 7, then screen 1 and vice-versa.
