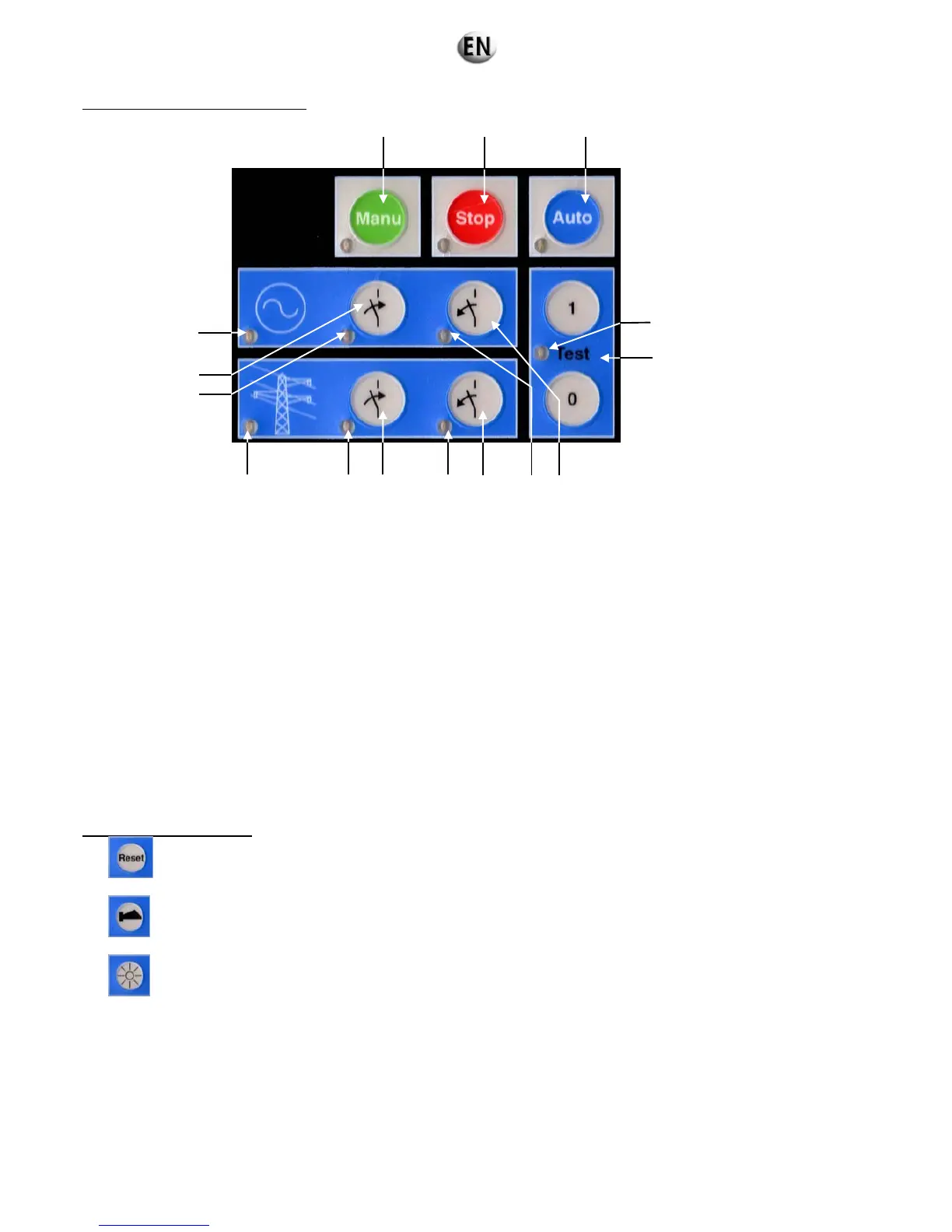

The generating set operational keys
1 Manual mode selection. The illuminated led indicates that the mode is active
2 Selecting stop mode. The illuminated led indicates that the mode is active
3 Automatic mode selection. The illuminated led indicates that the mode is active
4 Test in progress LED.
5 In auto mode: test sequence control (off load test / load test) (*)
In manual mode: engine start-up and stop
6 Generating set circuit breaker opening control
7 Led indicating that generating set circuit breaker is open
8 Grid circuit breaker opening control
9 Led indicating that grid circuit breaker is open
10 Grid circuit breaker closing control
11 Led indicating that grid circuit breaker is closed
12 Led indicating the presence of grid voltage
13 Led indicating that grid circuit breaker is closed
14 Closing control for generating set circuit breaker
15 Led indicating the presence of generating set voltage
(*) The test request brings up a screen which offers a choice between “load test” and “off load test”.
The signalling control keys
The
key clears the faults.
The
key stops the buzzer.
The
key commands testing of the LED’s on the front of the MMI.
3
2
1
4
5
678
10
9
11
12
15
14
13
