SEAWARD PRIMETEST SERIES USER MANUAL
TESTED. TRUSTED… WORLD WIDE Page 14 of 77

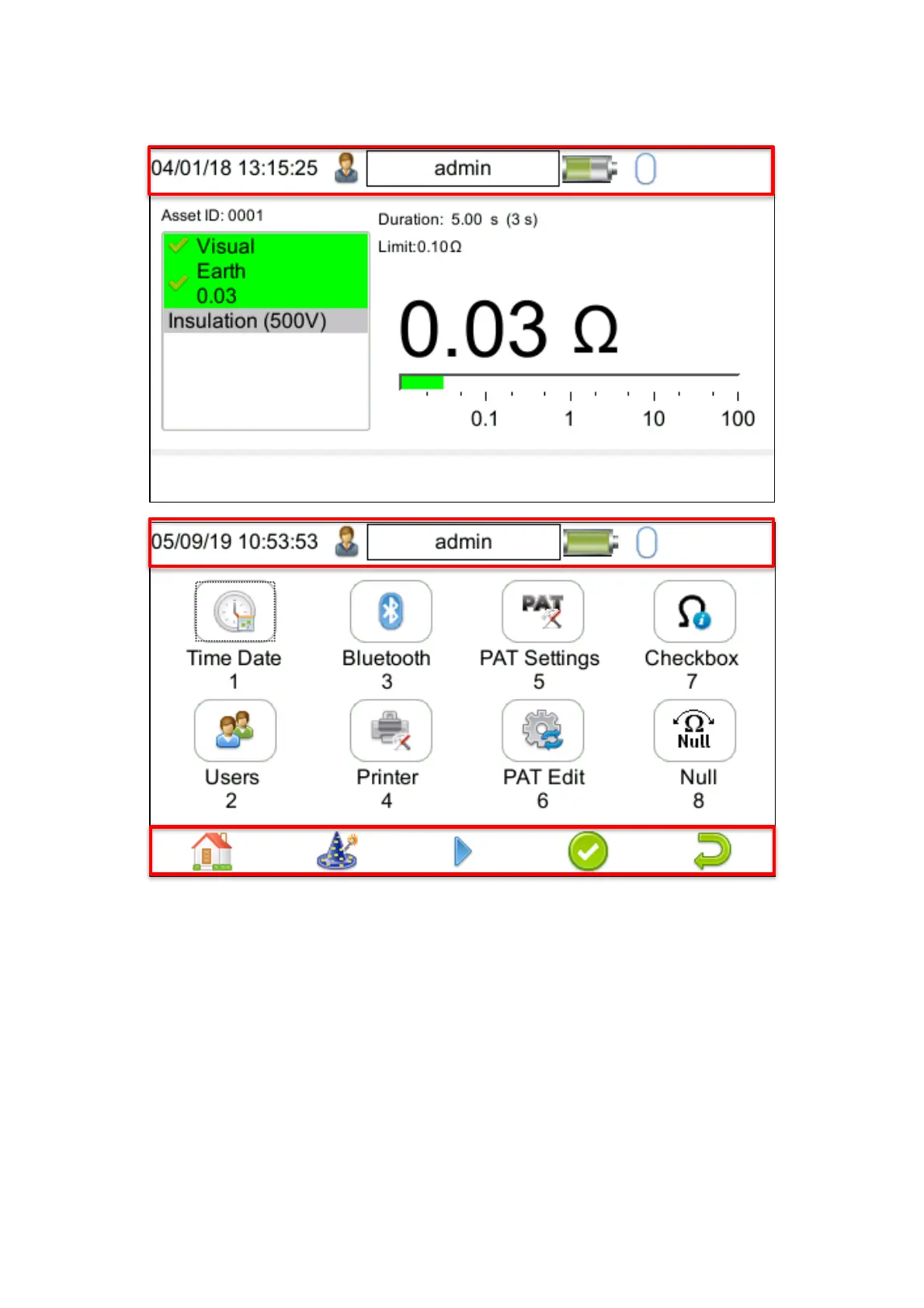

5.7 Getting To Know the User Interface
1) Information bar - This area of the screen shows the Date, Time, Current User, Battery Status and
connection Status.
Test sequence table - This area is only displayed in test mode showing the tests within the selected test
sequence. This will also display the results and status of the results that have been performed. Generally,
in manual mode, this table will only show one test.
2) Test details - This area is only displayed in test mode showing the details specific to the active test. This
includes the measurement, an analogue measurement graph, the duration and limit. Some tests may
show more than one measurement.
3) Main area - This area is used to display menu items, text fields or forms.
4) Function key icons - This area of the screen is used to identify the current action assigned to each
function key (F1 to F5).
