SEAWARD PRIMETEST SERIES USER MANUAL
TESTED. TRUSTED… WORLD WIDE Page 19 of 77
This field can set to “Last” where the last reading taken during the measurement period is compared with
the pass/fail limit or “Worst” where the highest reading taken during the measurement period is compared
with the pass/fail limit.
Setting the field to “Worst” will cause the earth continuity test to fail if the reading exceeds the limit value at
any point during the measurement period, for example if there is a momentary break in the protective
conductor when the mains cable is flexed.
Earth Reverse:
Off / On
This field is used to enable or disable automatic reversal of the earth continuity test current polarity. “Off”
sets the earth continuity test current to +200mA and “On” sets the earth continuity test current to +200mA
followed by -200mA.
Sub Lkg Factor:
0% / 6% / 10%
This field is used to set the substitute (alternative) leakage scale factor to 0%, 6% or 10%. The substitute
(alternative) leakage reading is then calculated for 230V (0%), 244V (6%) or 253V (10%).

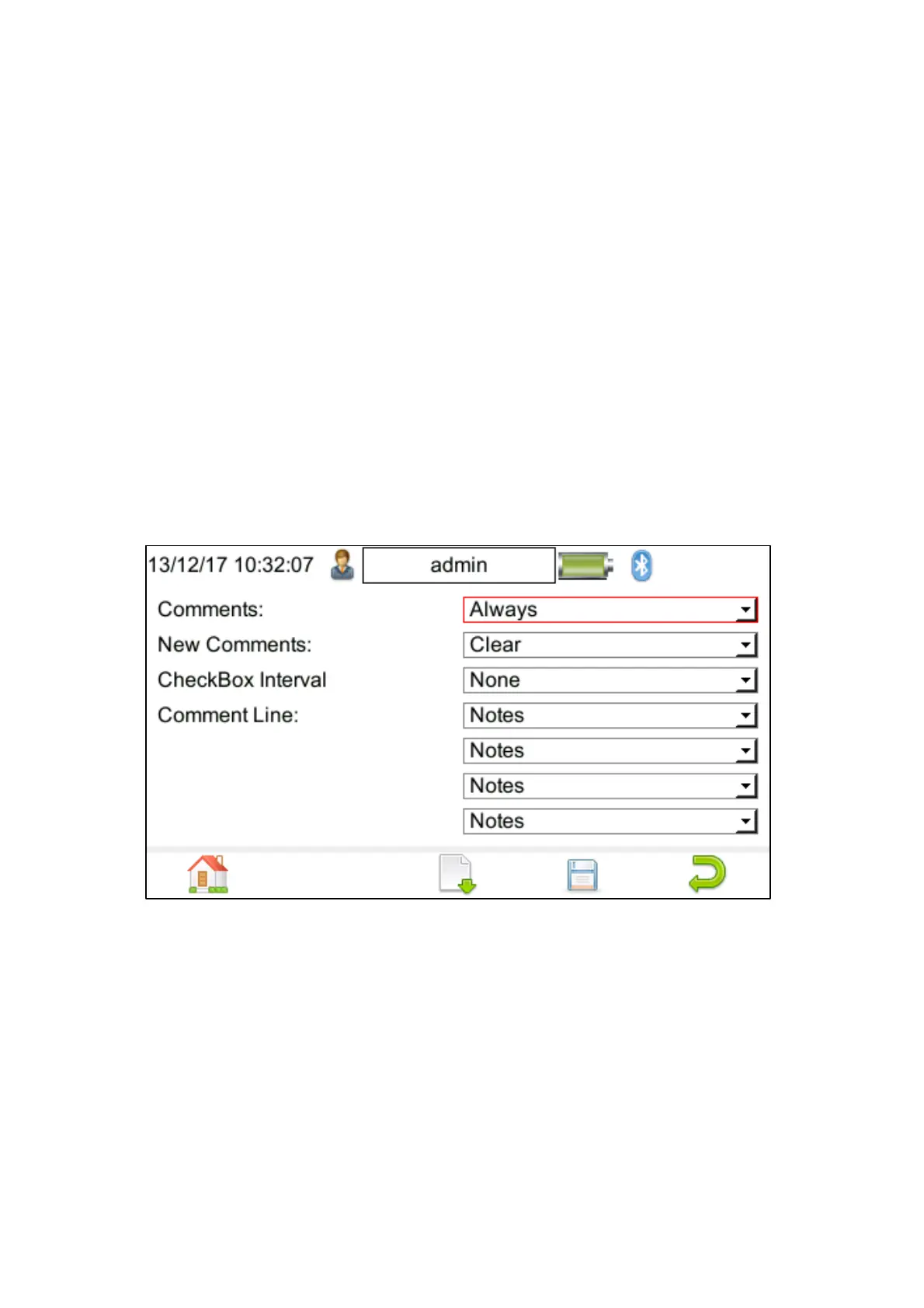

7.2 User Options / PAT Settings - Options Page 2
Comments:
Always / On Pass / On Fail / Never/ Never on retest
Can be set to open the comment window: Always (after every test sequence), if the test result is a Pass, if
the test result is a Fail, Never or Never on retest.
New Comments:
Clear / Same as Last / Same as previous test
This field can be set to Clear where previous comments are removed from the comments fields or Same as
Last where the previous remain in the comments fields. This can be useful when performing repeated tests
on the same type of appliance or Same as previous which is from the last time it was tested.
Checkbox Interval (Elite+ Only):
None / Daily / Weekly / Monthly
This field is used to set the frequency of the Checkbox reminder to None, Daily, Weekly or Monthly.
