SEAWARD PRIMETEST SERIES USER MANUAL
TESTED. TRUSTED… WORLD WIDE Page 58 of 77

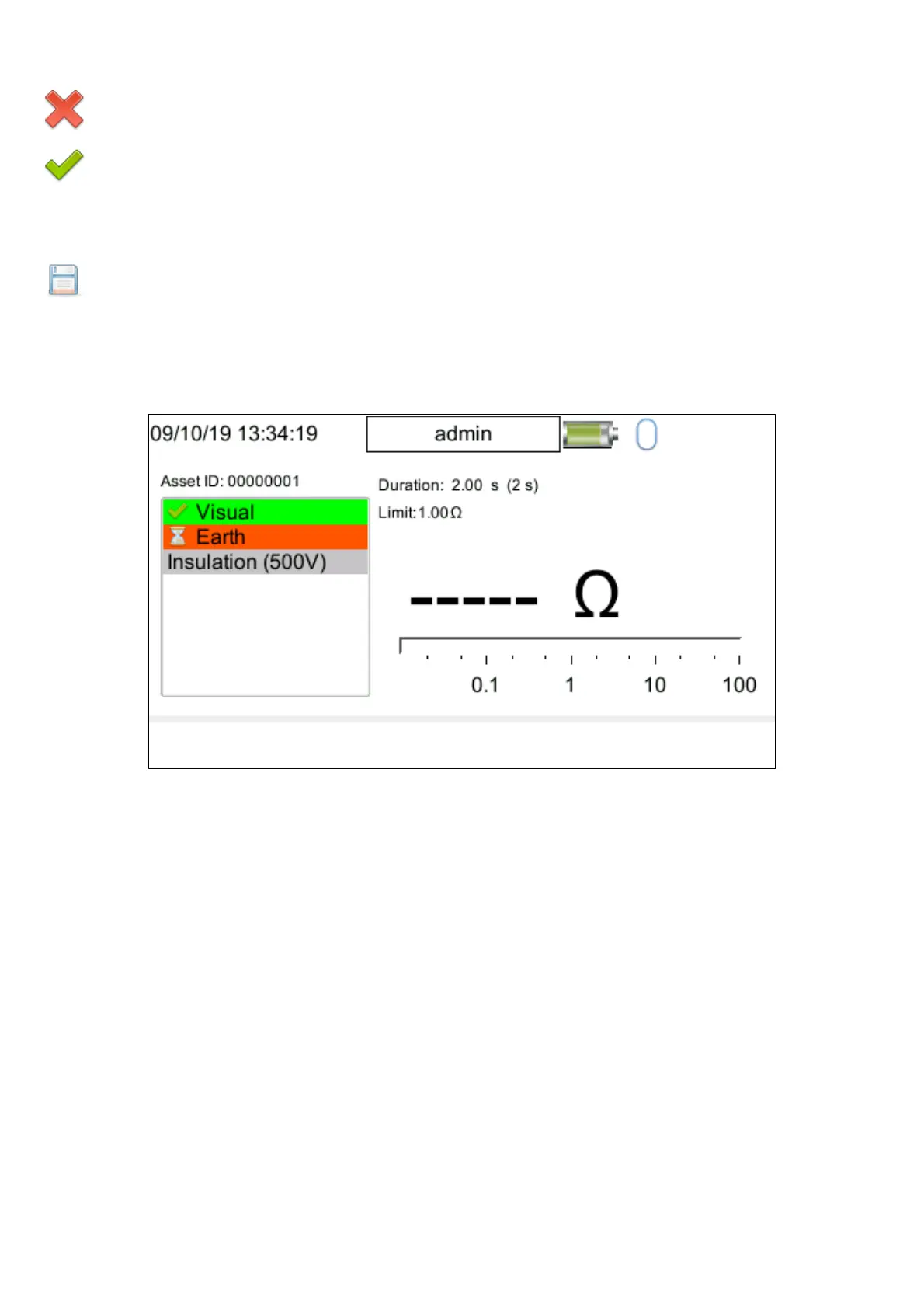

This is the Fail icon – use the keyboard arrow keys to highlight the parameter and F2 to Fail this part
of the test.
This is the Pass icon – use the keyboard arrow keys to highlight the parameter and F3 to Pass this
part of the test.
Pass
All Use F4 to Pass All parameters and move on to the next test in the Test Sequence.
Use F5 to Save the elements of the Visual Inspection performed (using F2 and F3) and move onto
the next test in the Test Sequence.
11.3 Auto Mode – The Electrical Tests
In general, the second stage of the Auto-Portable Appliance Test (PAT) are the practical electrical tests.
The PrimeTest has probe detection that will automatically flag up if you do not have the correct probe
configuration for the test you are trying to perform.
During the tests you can see the test duration, limit and result on screen, see Getting To Know The User
Interface, 5.7.
