SEAWARD PRIMETEST SERIES USER MANUAL
TESTED. TRUSTED… WORLD WIDE Page 38 of 77
8.8 Main Menu Window –Check Box

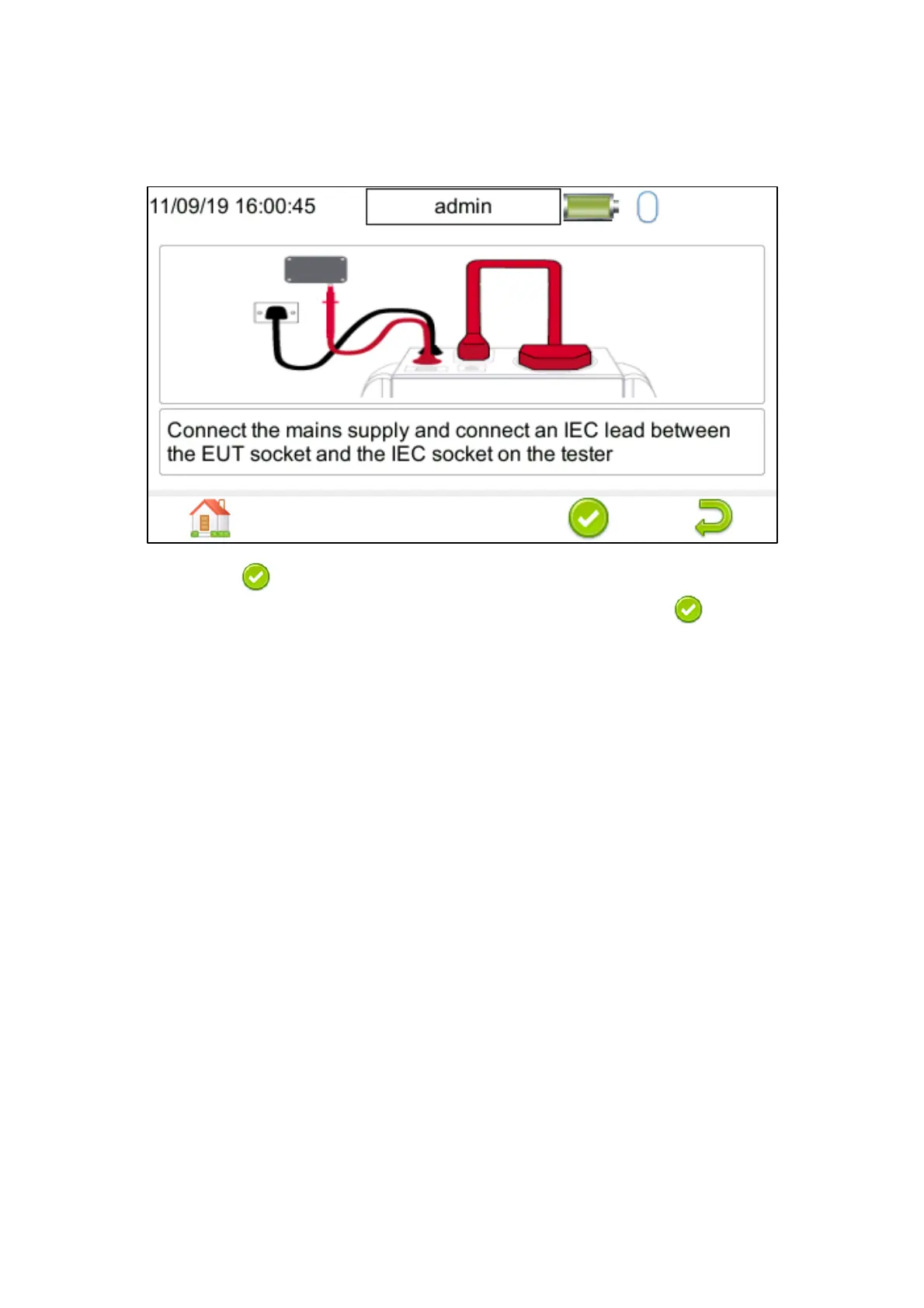

Select Check Box 7 and the PrimeTest Elite+ will display the screen below to indicate how you should
connect the tester and checkbox
Once this has been done will start the test sequence and the PrimeTest Elite+ will prompt you to
disconnect the IEC end and connect that to the checkbox once done confirm by and the sequence will
continue.
Note: The check box facility is only available on the PrimeTest Elite+ and requires an optional accessory.
