BGX501-742-R01, APEX 100 User Manual
Page 45 of 104

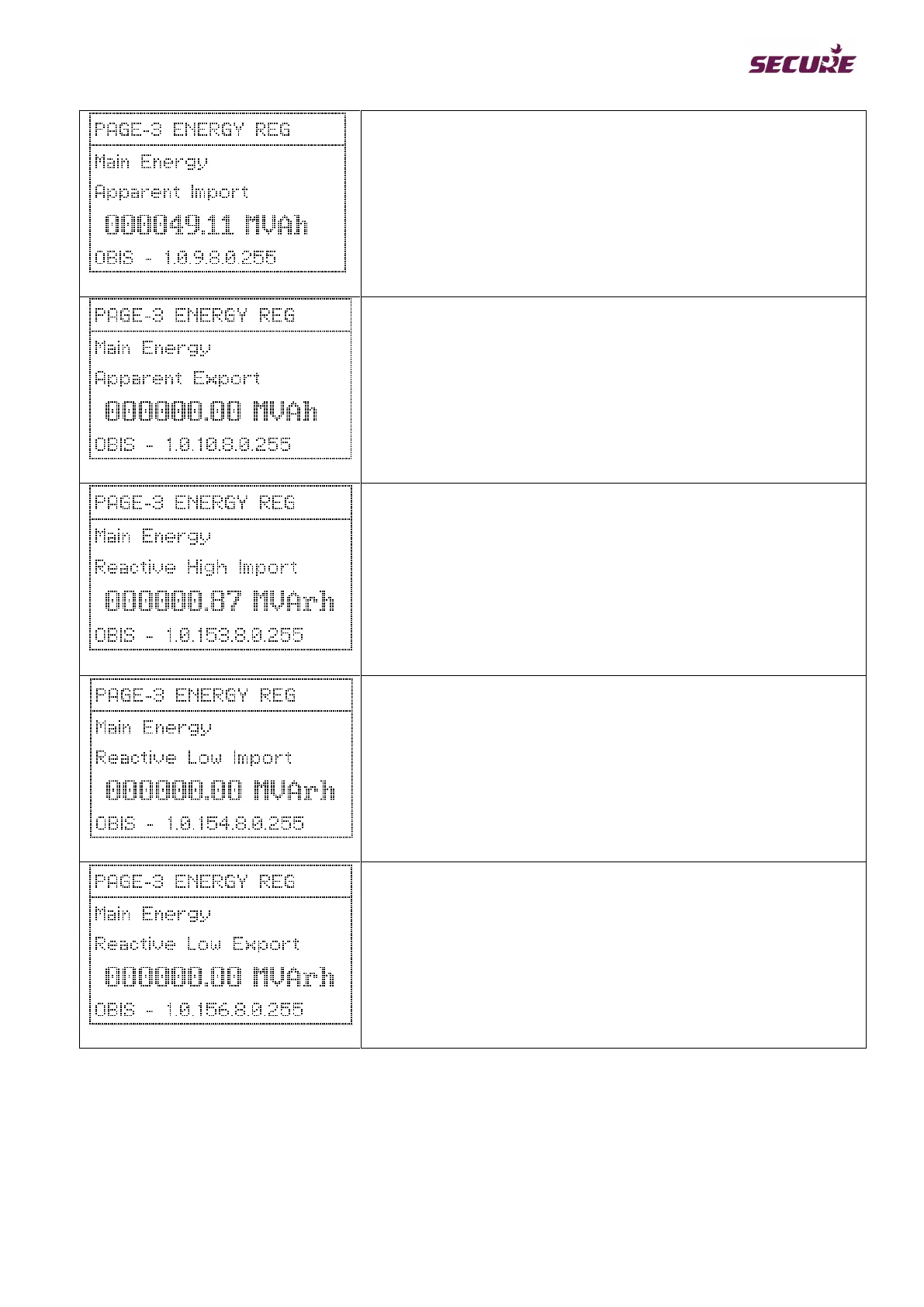

Main Energy Register for apparent energy imported in megavolt
ampere hours (MVAh).
The example shows that 49.11 MVAh of apparent energy was
imported.
Main Energy Register for apparent energy exported in megavolt
ampere hours (MVAh).
The example shows that no apparent energy was exported.
Main Energy Register for reactive energy (High) imported in megavolt
ampere reactive hours (MVArh).
The example shows that 0.87 MVArh of reactive energy was imported.
Main Energy Register for reactive energy (Low) imported in megavolt
ampere reactive hours (MVArh).
The example shows that no reactive energy was imported.
Main Energy Register for reactive energy (Low) exported in megavolt
ampere reactive hours (MVArh).
The example shows that no reactive energy was imported.
