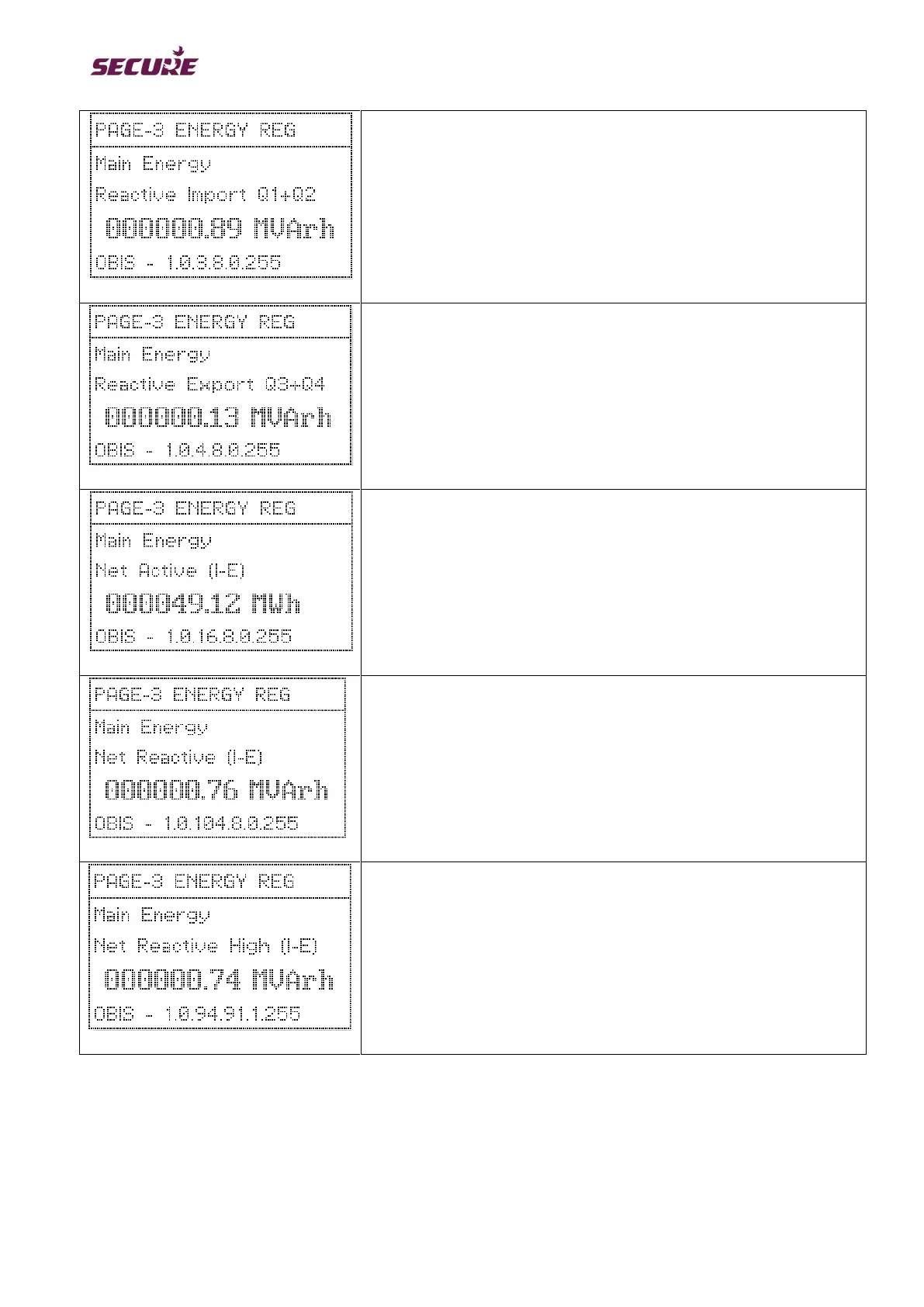

Main Energy Register for reactive energy (Q1+Q2) imported in
megavolt ampere reactive hours (MVArh).
The example shows that 0.89 MVArh of reactive energy was imported.
Main Energy Register for reactive energy (Q3+Q4) exported in
megavolt ampere reactive hours (MVArh).
The example shows that 0.13 MVArh of reactive energy was exported .
Main Energy Register for Net Active energy (I-E) in megawatt hours
(MWh).
The example reading is 49.12 MWh.
Main Energy Register for net reactive energy (I-E) in megavolt ampere
reactive hours (MVArh).
The example reading is 0.76 MVArh.
Main Energy Register for net reactive energy high (I-E) in megavolt
ampere reactive hours (MVArh).
The example reading is 0.74 MVArh.
