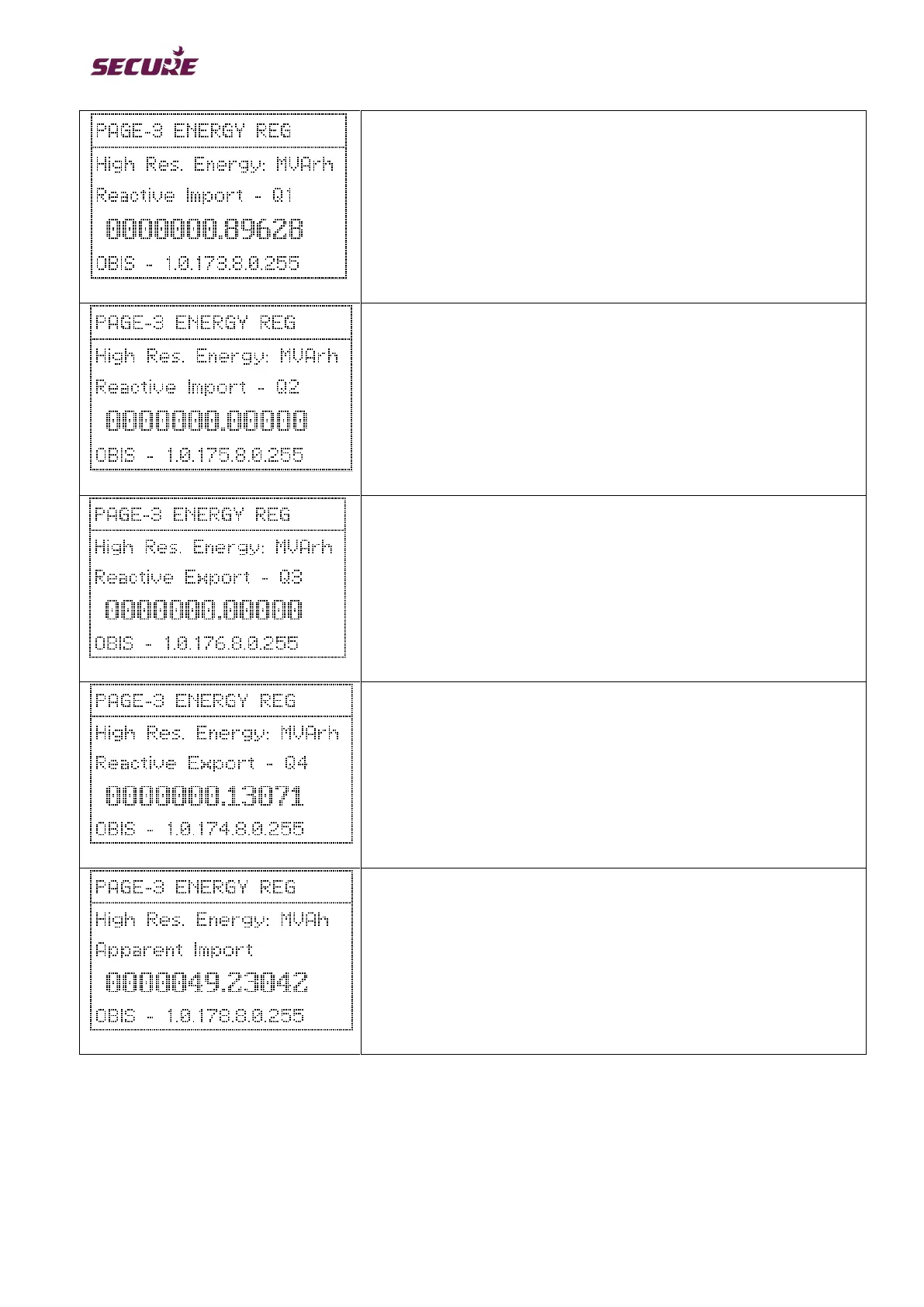

High resolution energy register for reactive import (Q1) displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that 0.89628 MVArh was registered.
High resolution energy register for reactive import (Q2) displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that no energy was registered.
High resolution energy register for reactive export (Q3) displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that no energy was registered.
High resolution energy register for reactive export (Q4) displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that 0.13701 MVArh energy was
exported.
High resolution energy register for apparent import displayed in
megavolt ampere hours (MVAh).
The example reading shows that 49.23042 MVAh energy was
imported.
