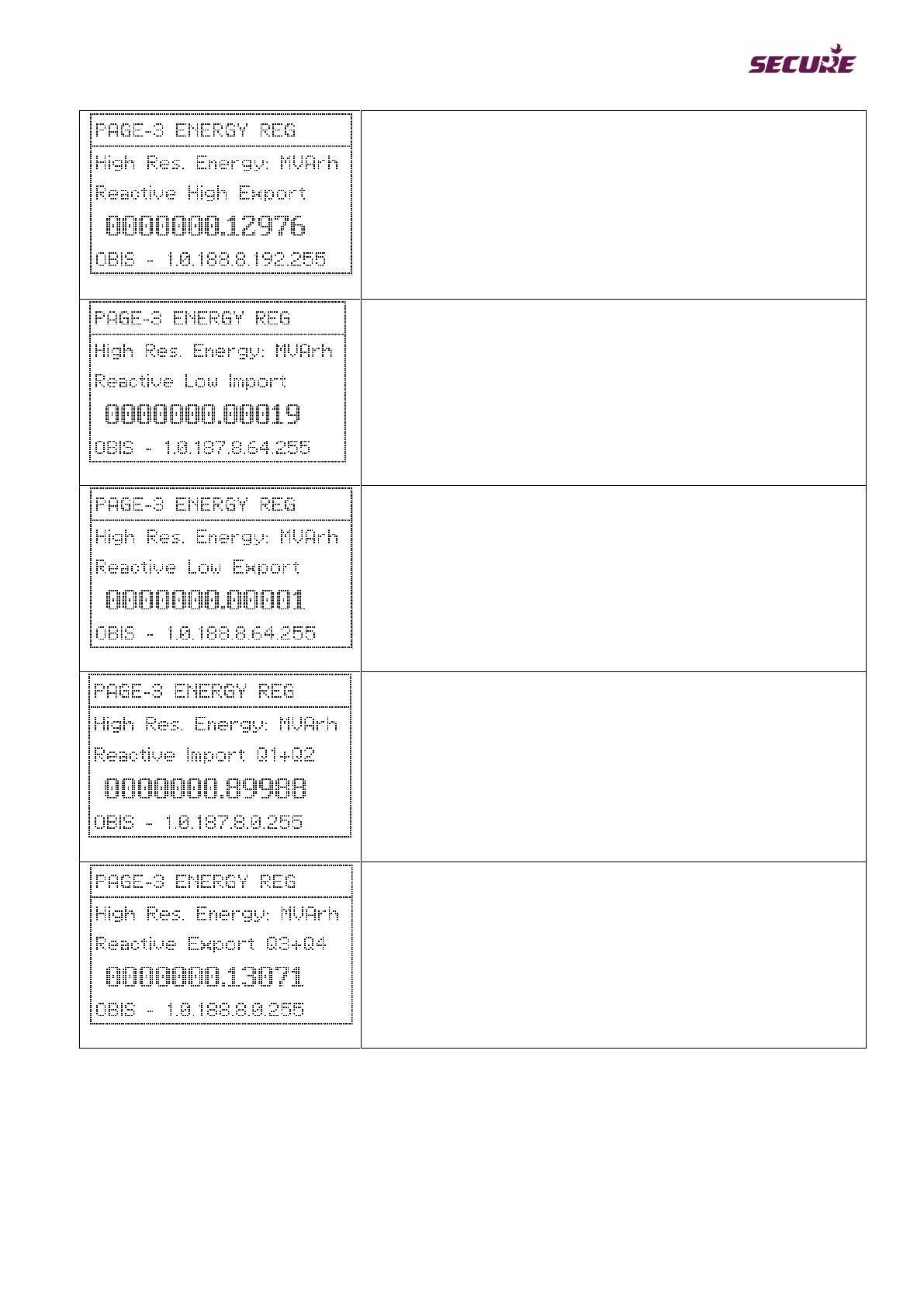

High resolution energy register for reactive high export displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that 0.12976 MVArh energy was
exported.
High resolution energy register for reactive low import displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that 0.00019 MVArh energy was
imported.
High resolution energy register for reactive low export displayed in
megavolt ampere reactive hours (MVArh).
The example reading shows that 0.00001 MVArh energy was
exported.
High resolution energy register for reactive import (Q1+Q2) displayed
in megavolt ampere reactive hours (MVArh).
The example reading shows that 0.89988 MVArh energy was
imported.
High resolution energy register for reactive export (Q3+Q4) displayed
in megavolt ampere hours (MVArh).
The example reading shows that 0.13071 MVArh energy was
exported.
