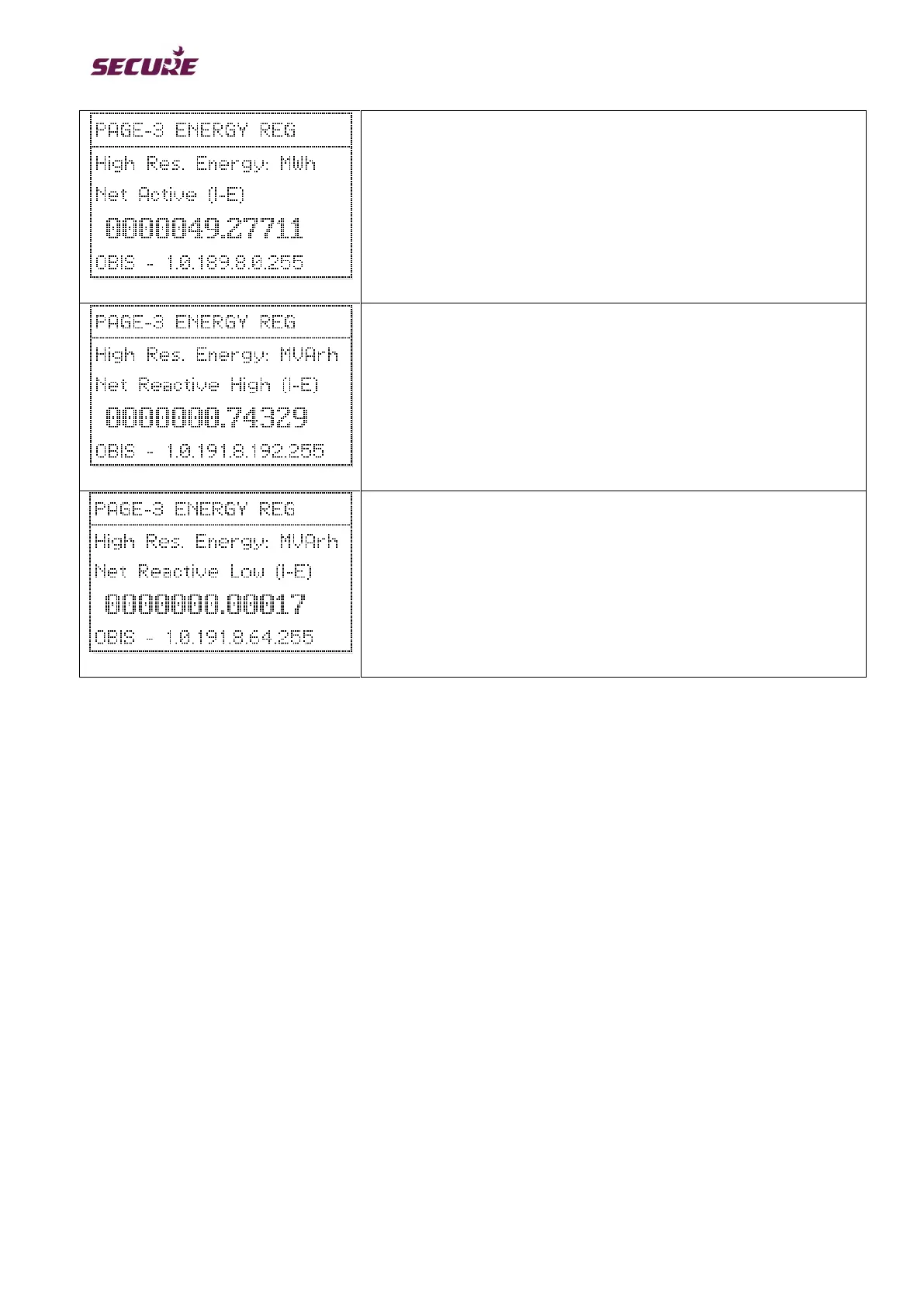

High resolution energy register for net active (I-E) displayed in
megawatt hours (MWh).
The example reading shows that 49.27711 MWh energy was
registered.
High resolution energy register for net reactive high (I-E) displayed in
megawatt hours (MVArh).
The example reading shows that 0.74329 MVArh energy was
registered.
High resolution energy register for net reactive low (I-E) displayed in
megawatt hours (MVArh).
The example reading shows that 0.00017 MVArh energy was
registered.
Page-4 Midnight Snap
Page-4 has been set up to capture midnight values.
