4.5 MAGNETIC SWITCHES
Verify that the magnet (1) has the countersink for the self-threading screw on the side of the magnetic switch (2).
Open and close the door by means of the controller or manually and make sure that the magnetic switches work
correctly.
For K1-2-3R
For K1-2-3L and K2-4-6
These are the operations of the magnetic switches:
• Closed door - the door close limit (pre-adjusted by the manufacturer) must operate when the carriage has
already stopped but the retractable skate is not closed;
• Open door - the door open limit (pre-adjusted by the manufacturer) must operate approx 5 mm before the
door is totally open; (note: not used for DIGIDOOR operator compatibility);
• The closing slow down limit causes the doors to slow down before they are totally closed;
• The opening slow down limit causes the doors to slow down before they are totally open.
Attention: the distance between the slowing limits can be adjusted according to specific needs.

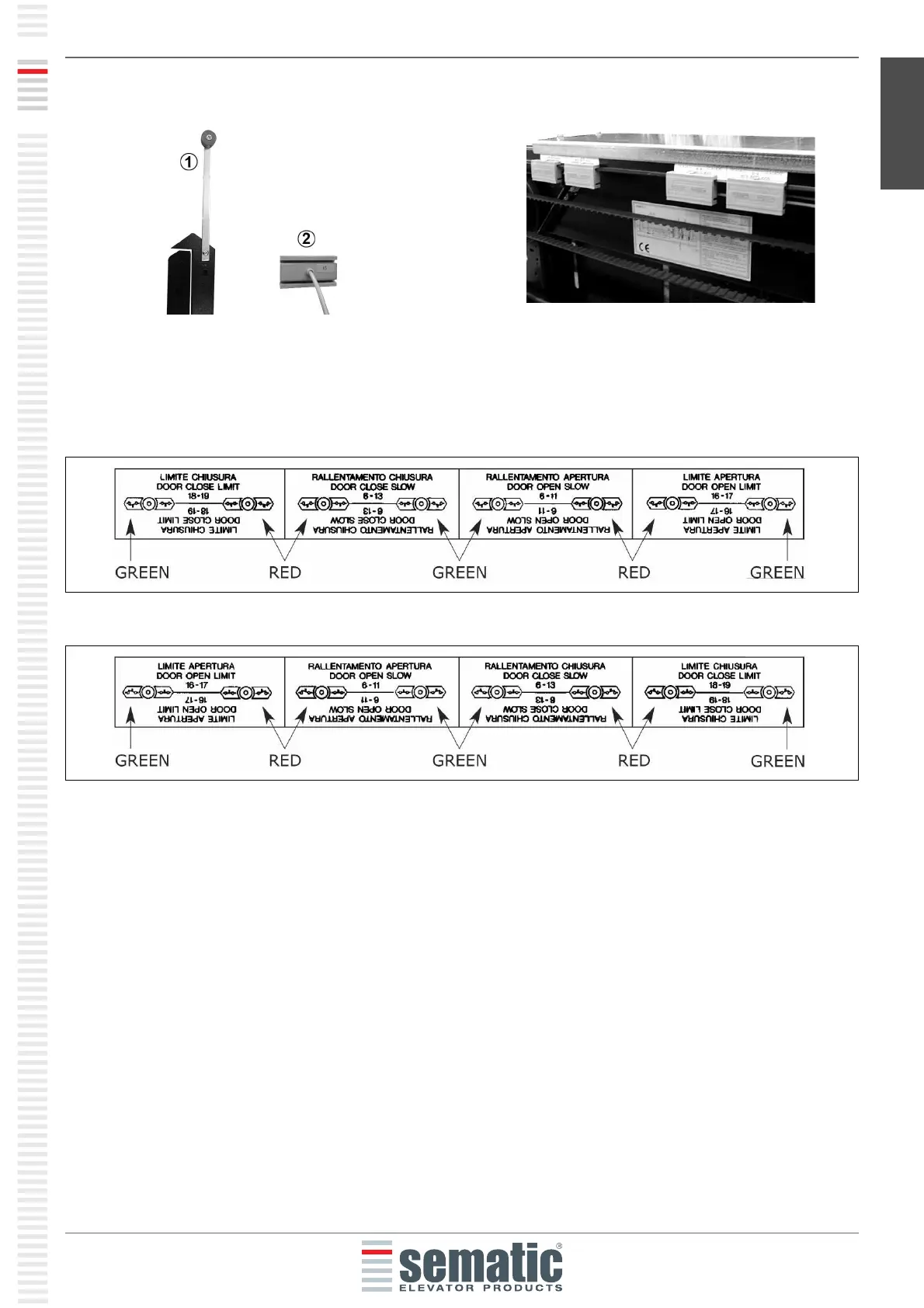

Fig. 1 Looking from the landing the switches are marked this way.
