Upgrade from controllers previous to F28/F29 controller (Controller type: ASC 10/20, ADC10/11, SEM10/11,
37
811-000-000 SDS© DC-PWM Compatible • Edition 25 March 2016

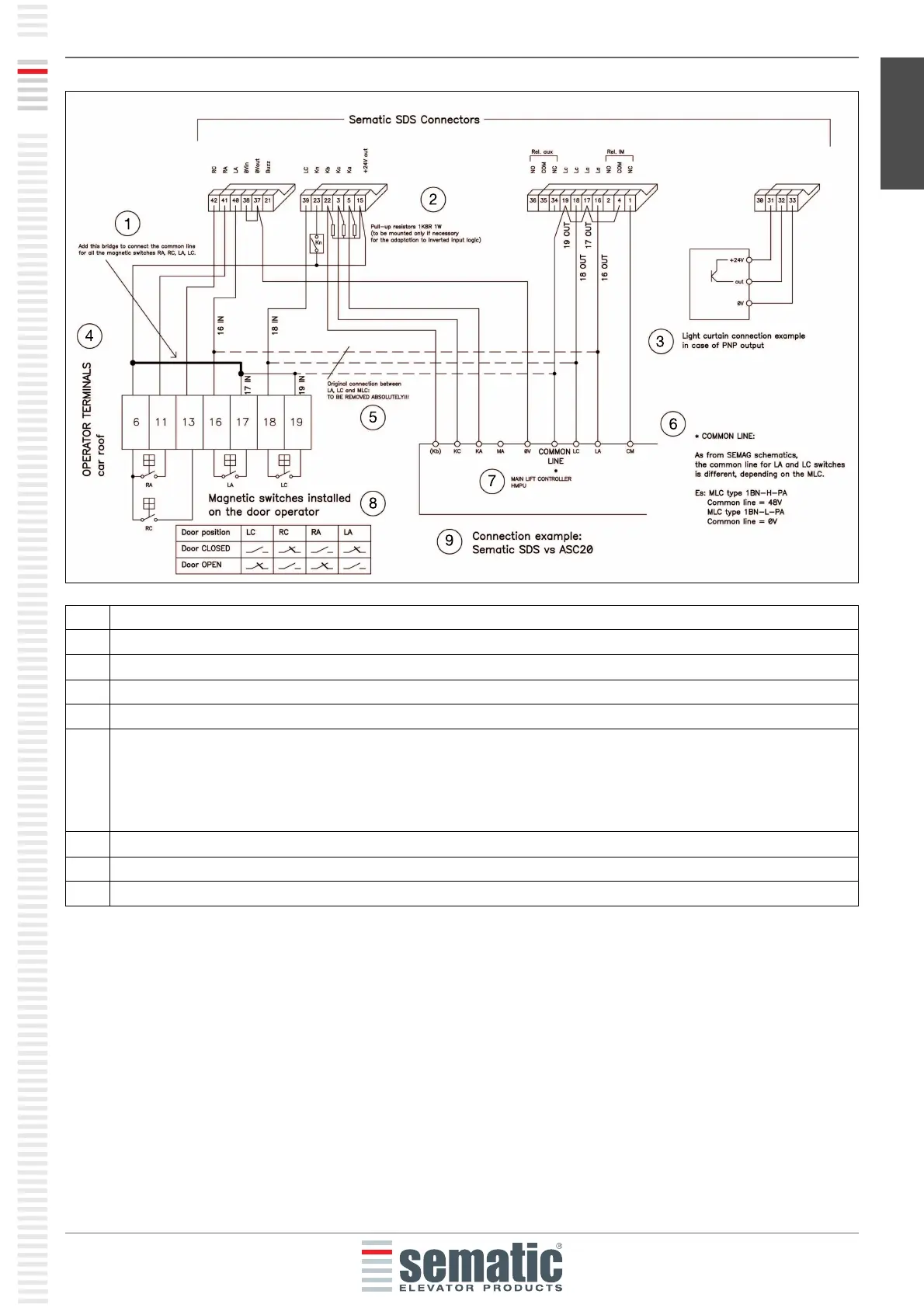

This schematic example shows the connection between SDS DC-compatible and ASC10/20.
Due to the variety of lift controllers and connections, it may be necessary to modify this schematics, to adapt to
the particular situation.
In the specific manual, it is possible to find (§ 11 (pg. 36)), all the interface different systems. In case of difficulty,
please contact Sematic support.
1 Add this bridge to connect the common line for all magnetic switches RA, RC, LA, LC.
2 Pull-up resistors 1K8R 1W (to be mounted only if necessary for the adaptation to inverted input logic)
3 Light curtain connection example in case of PNP output
4 OPERATOR TERMINALS car roof
5 Original connection between LA, LC, and MLC: TO BE REMOVED ABSOLUTELY!!!
6 * COMMON LINE
As from SEMAG schematics, the common line for LA and LC switches is different, depending on the MLC.
Es. MLC type 1BN-H-PA
Common line = 48V
MLC type 1BN-L-PA
Common line = 0V
7 MAIN LIFT CONTROLLER HMPU
8 Magnetic switches installed on the door operator
9 Connection examples: Sematic SDS vs ASC20
