Signals to/from the door controller
811-000-000 SDS© DC-PWM Compatible • Edition 25 March 2016
4 SIGNALS TO/FROM THE DOOR CONTROLLER

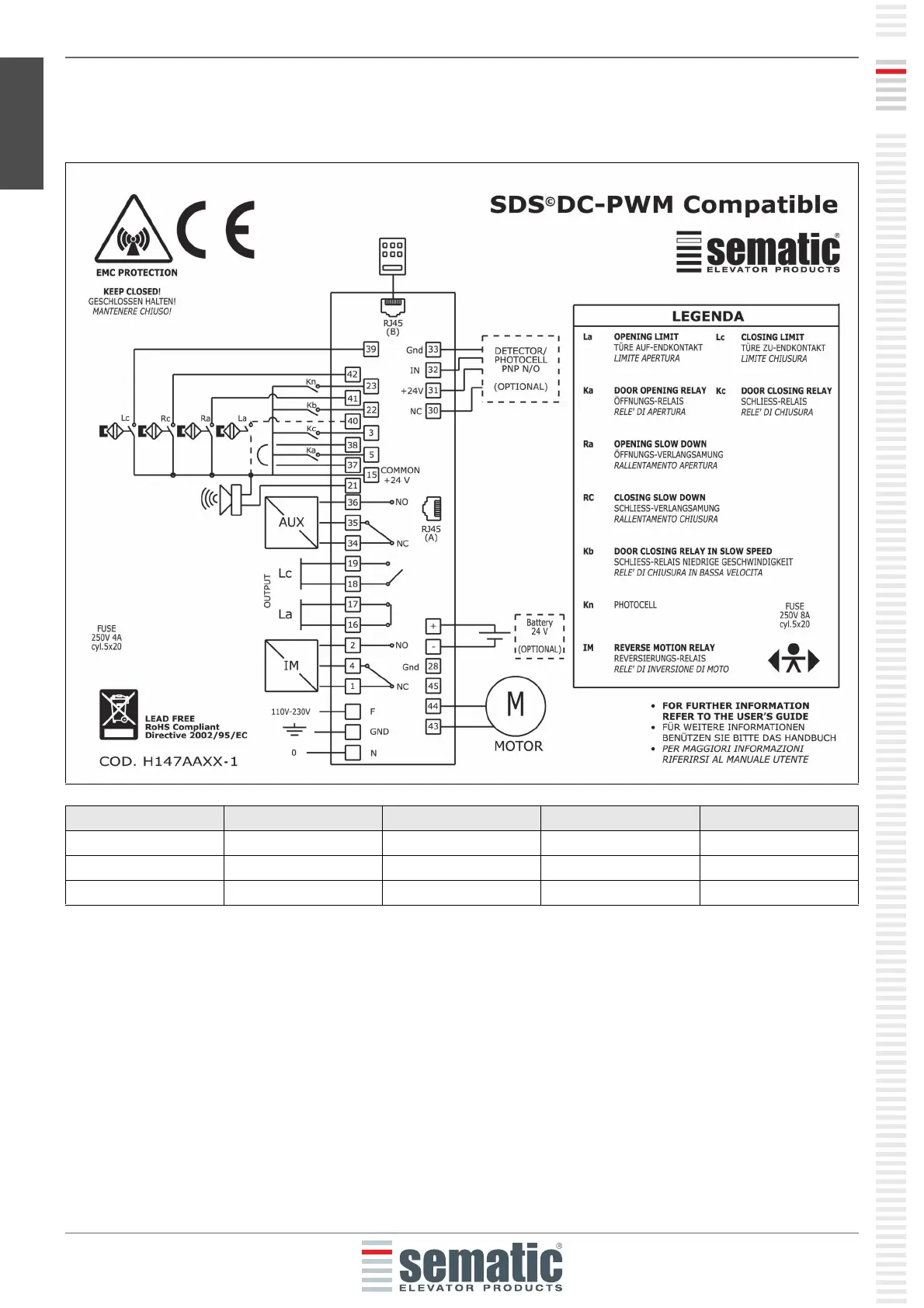

4.1 SEMATIC DRIVE SYSTEM© (DC-PWM) COMPATIBLE CONNECTIONS
DOOR POSITION LC SWITCH STATE RC SWITCH STATE RA SWITCH STATE LA SWITCH STATE
Door closed OPEN CLOSED OPEN CLOSED
Door mid travel CLOSED OPEN OPEN CLOSED
Door open CLOSED OPEN CLOSED OPEN
