1. Introduction
1.1 Scope
This document aims at providing complete information on how to use the LR1110 transceiver in an application. It covers
both hardware and software aspects. For a definition of the LR1110 functionalities and circuit specifications, please refer to
the LR1110 Datasheet.

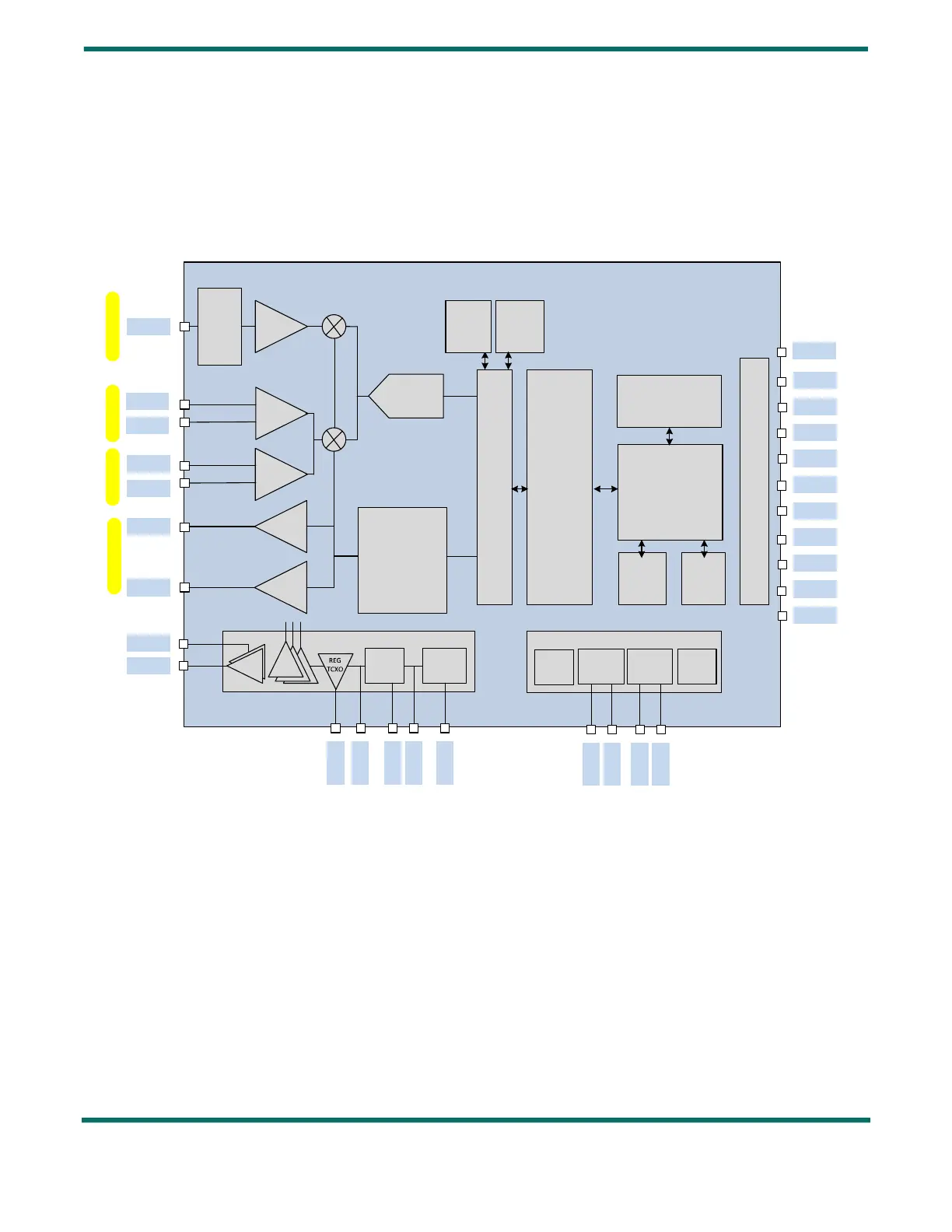

Figure 1-1: LR1110 Block Diagram
1.2 Overview
LR1110 is a long range, ultra-low power transceiver aimed to enhance LoRa®-based geolocation applications. It supports
LoRa® and (G)FSK modulations for LPWAN use cases. The device is highly configurable over the 150MHz-960MHz ISM bands
to meet different application requirements utilizing the global LoRaWAN® standard or proprietary protocols.
Besides the world-wide sub-GHz transceiver capabilities, the device feature a very low power multi-band front-end that can
acquire several signals of opportunity for geolocation purposes (802.11b/g/n Wi-Fi AP MAC addresses, GNSS (GPS, BeiDou)
satellites signals). The acquired information is transmitted using a LPWAN network to a geolocation server, which computes
the position of the object.
LNA
LF0
LNA
LF1
PA
HP LF
PA
LP LF
RFO_HP_LF
RFO_LP_LF
RFI_P_LF0
RFI_N_LF0
RFI_P_LF1
RFI_N_LF1
LNA
HF
Balun
&
Match
RFIO_HF
ADC
PLL
VBAT_RF
VR_PA
VREG
DCC_SW
VBAT
VBAT_RF
DC-DC
LDO
BG/IREF
POR/
BRN
PDS
REGs
HFXOSC
32MHz
CKS
LFXOSC
32kHz
HFRC
32MHz
LFRC
32kHz
XTA
XTB
DIO11/
32k_P
DIO10/
32k_N
VTCXO
DIO0/ BUSY
DIO1
DIO2
DIO3
DIO4
DIO9
DIO8
DIO7
DIO6
DIO5
150 – 960 MHz, TX
150 – 960 MHz,
RX
2.412 – 2.484 GHz,
RX
REG_PA
Digital Baseband
+ DSP
CPU
RAMROM
NVM
IO SWM
Digital Front-End
LoRa
modem
(G)FSK
modem
NRESET
1.5 – 1.6 GHz,
RX
