7. Sub GHz Radio
7.1 Description
The LR1110 is a half-duplex RF transceiver capable of handling constant envelope modulation schemes such as LoRa®, and
(G)FSK. It is fully compatible with the SX1261/62/68 family.
The sub-GHz radio system is shown in figure Figure 7-1: Sub-GHz Radio here below. It is composed of the frequency
synthesizer (also referred as PLL), two TX paths (High Power and Low Power), and a RX path, followed by a high-bandwidth
ADC. Both the ADC and the PLL are tied to the digital subsystem and to the LoRa® and (G)FSK modems.
The High Power and the Low Power PA are described in a dedicated section, as well as the LoRa® and (G)FSK modems.

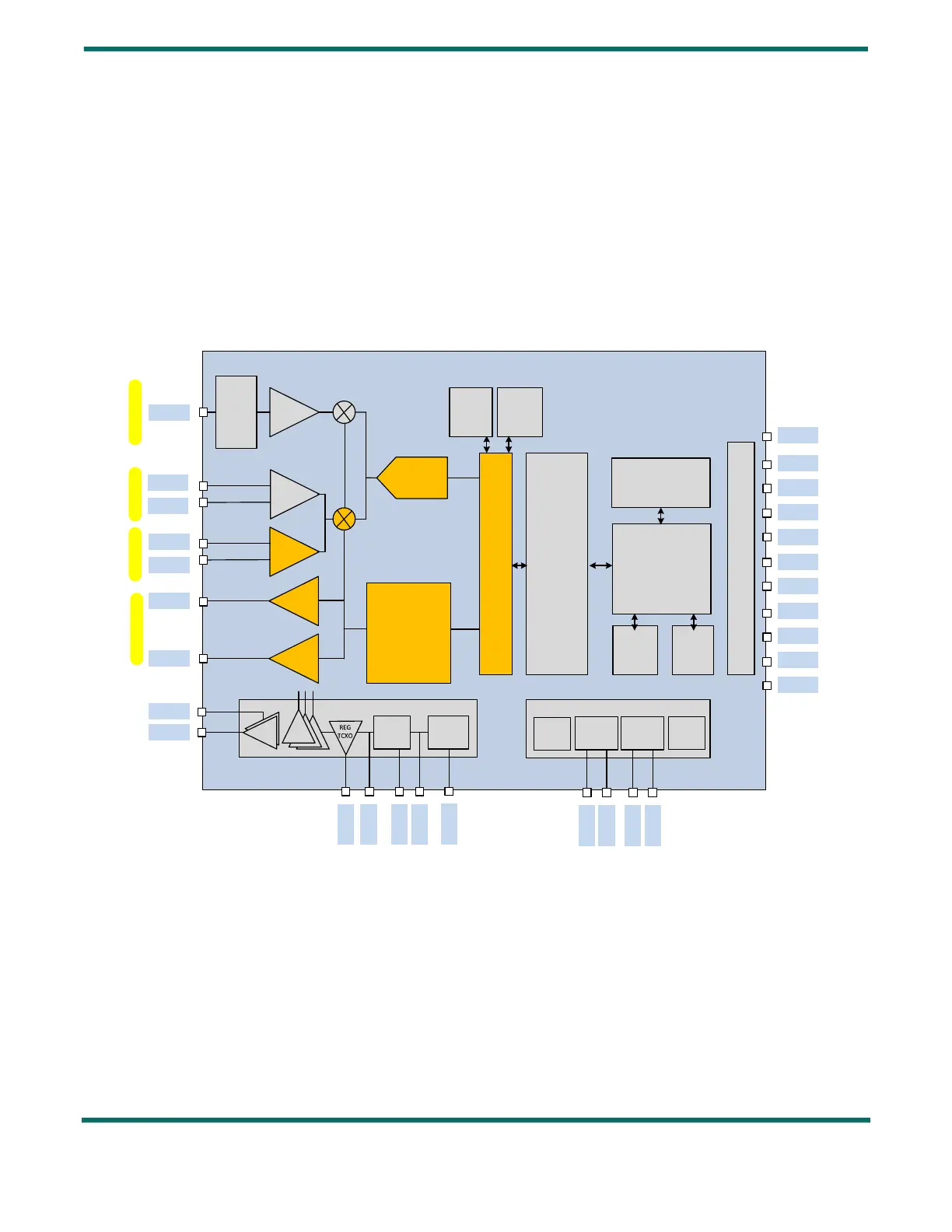

Figure 7-1: Sub-GHz Radio
The LR1110 frequency synthesizer allows a continuous operation in the 150 MHz-2700 MHz frequency range. It is shared
between the sub-GHz radio, the GNSS and the Wi-Fi scanning engines, therefore no simultaneous sub-GHz radio operation,
GNSS scanning, or Wi-Fi scanning is possible.
The LR1110 frequency synthesizer is clocked by a 32 MHz reference, provided by either a crystal oscillator, or a TCXO. Refer
to Section 6. "Clock Sources" on page 38 for details.
