Accessories

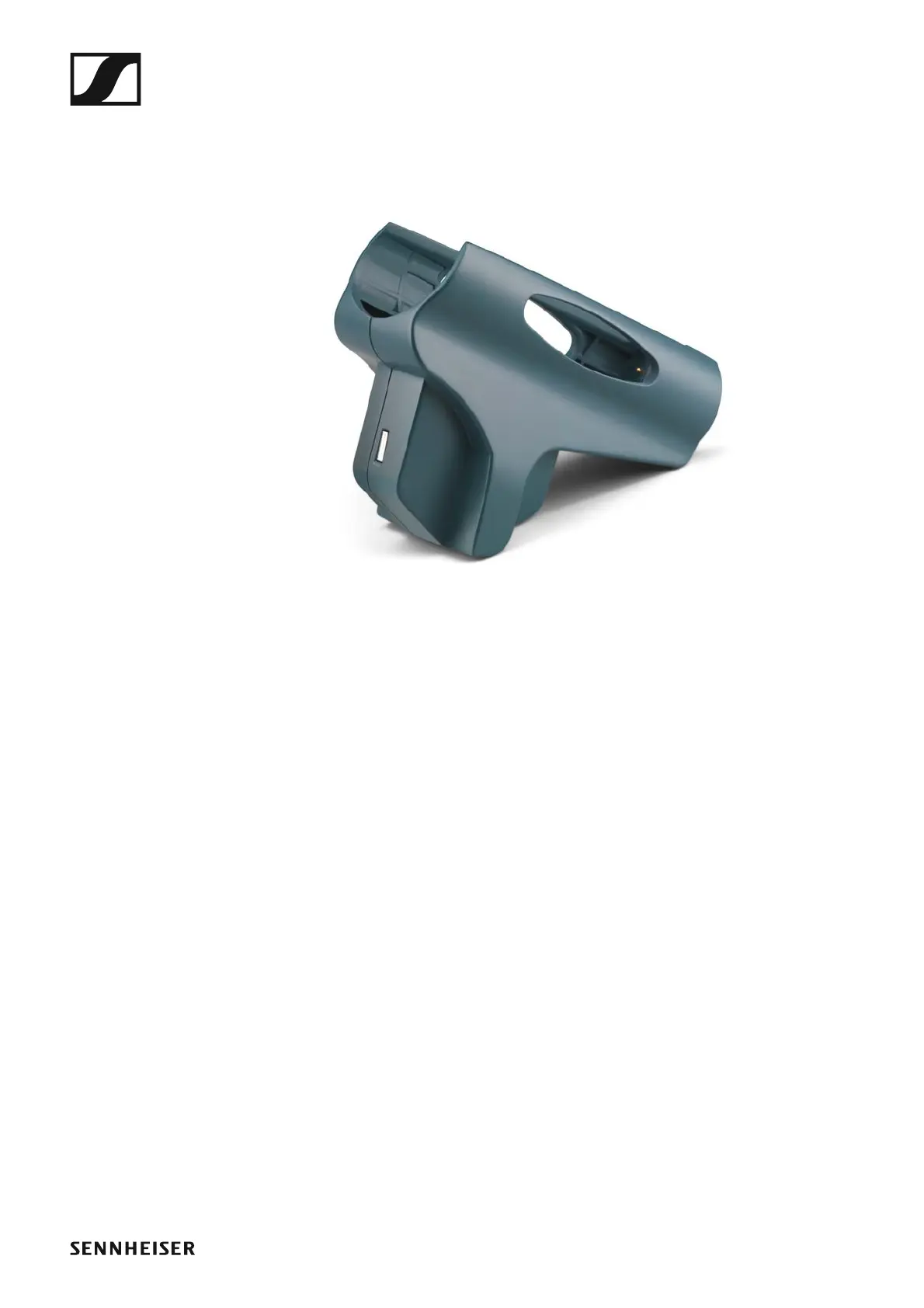

LA 2 charging adapter

Charging adapter for L 2015 charger for charging SKM G4 handheld trans-

mitters with installed BA 2015 rechargeable battery.

Article no. 503162

►
