Installing the EM 300-500 G4
35
Mounting two receivers side by side in a rack
When you mount two receivers side by side, it is only possible to front
mount antennas when you use the ASA 214 antenna splitter in com-
bination with the AM 2 front mounting kit and an additional GA 3 rack
mounting kit. See “Installing the ASA 214”.

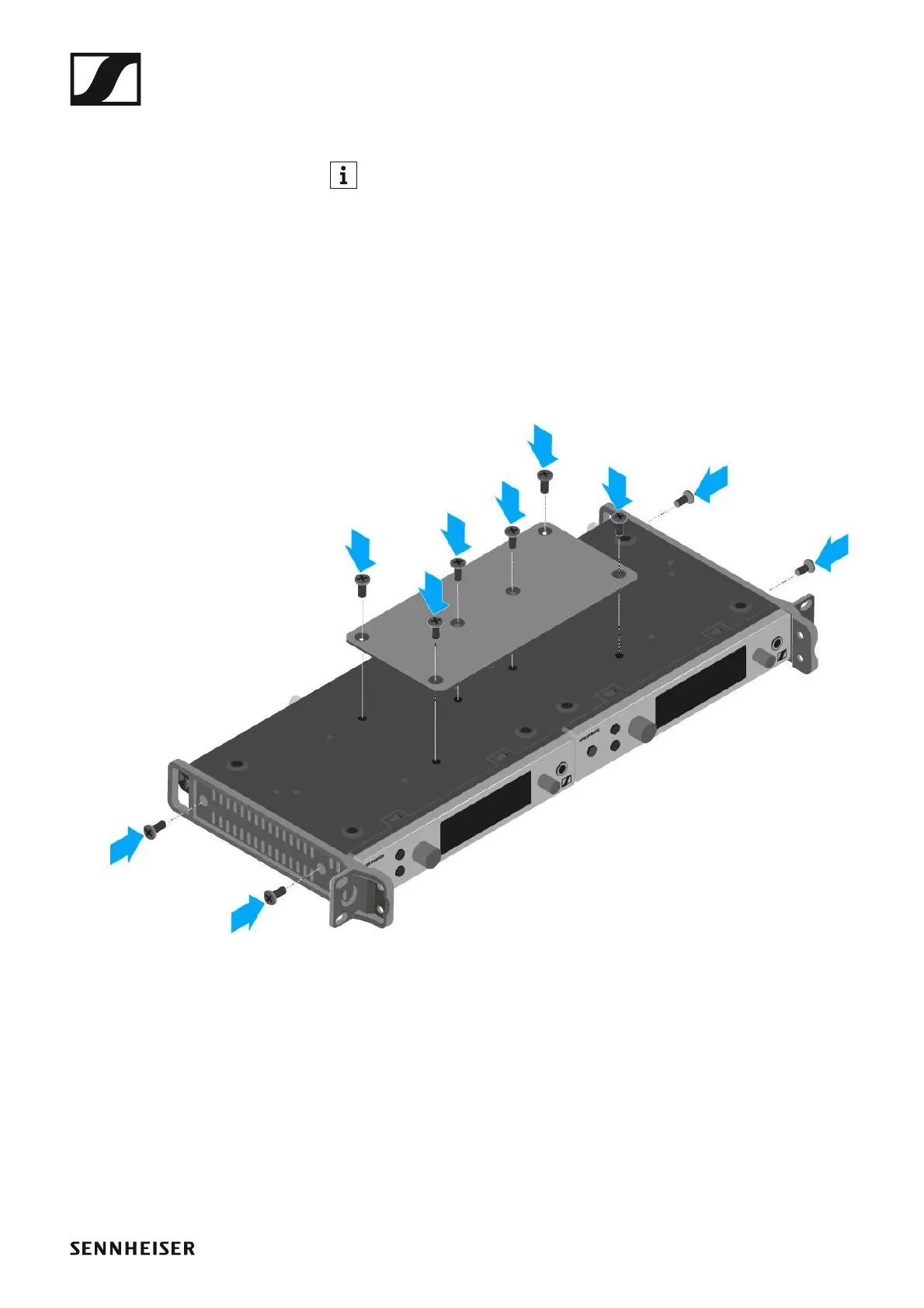

To mount the receiver using the GA 3 rack mounting kit (optional accesso-
ry):
▷ Place both receivers upside down and side by side on an even surface.
▷ Secure the jointing plate to the transmitters using the six recessed
head screws (M3x6).
▷ Secure the mounting angle.
