Installing the SK 500 G4
57
Connecting an instrument or line source to the
SK 500 G4
You can connect instruments or audio sources with a line level to the
bodypack transmitter.
To do this, you will need the Ci 1-N (6.3 mm jack plug on a lockable 3.5 mm
jack plug) or CL 2 (XLR-3F plug on lockable 3.5 mm jack plug) Sennheiser
cables.
To connect an instrument or line source to bodypack transmitter:

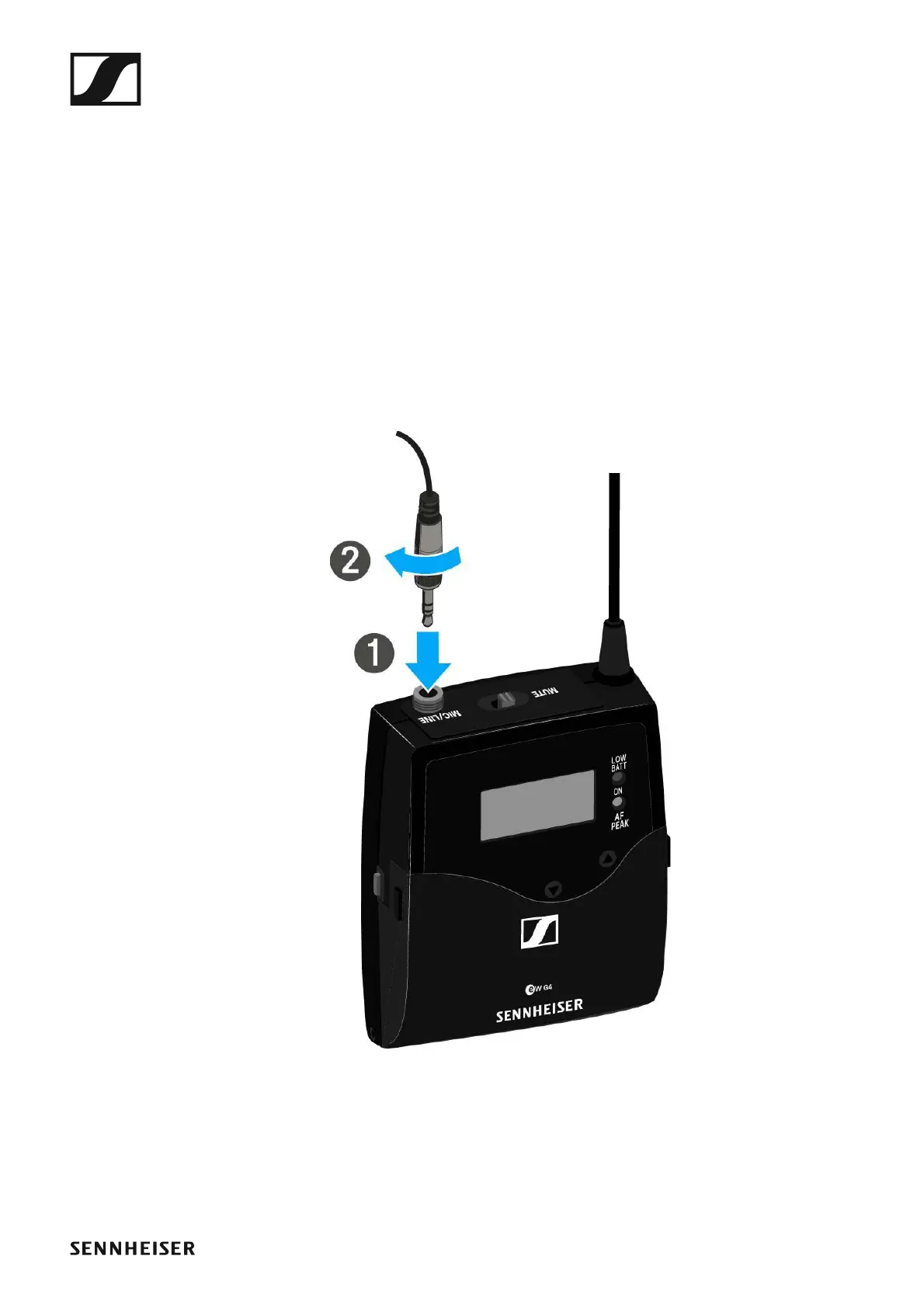

▷ Insert the cable’s 3.5 mm jack plug into the MIC/LINE socket on the
bodypack transmitter as shown in the diagram.
▷ Screw the plug’s coupling ring onto the audio socket thread of the
bodypack transmitter.
