Sennheiser evolution wireless G4 300 Series

To Next Page

To Previous Page

Accessories

Additional accessories

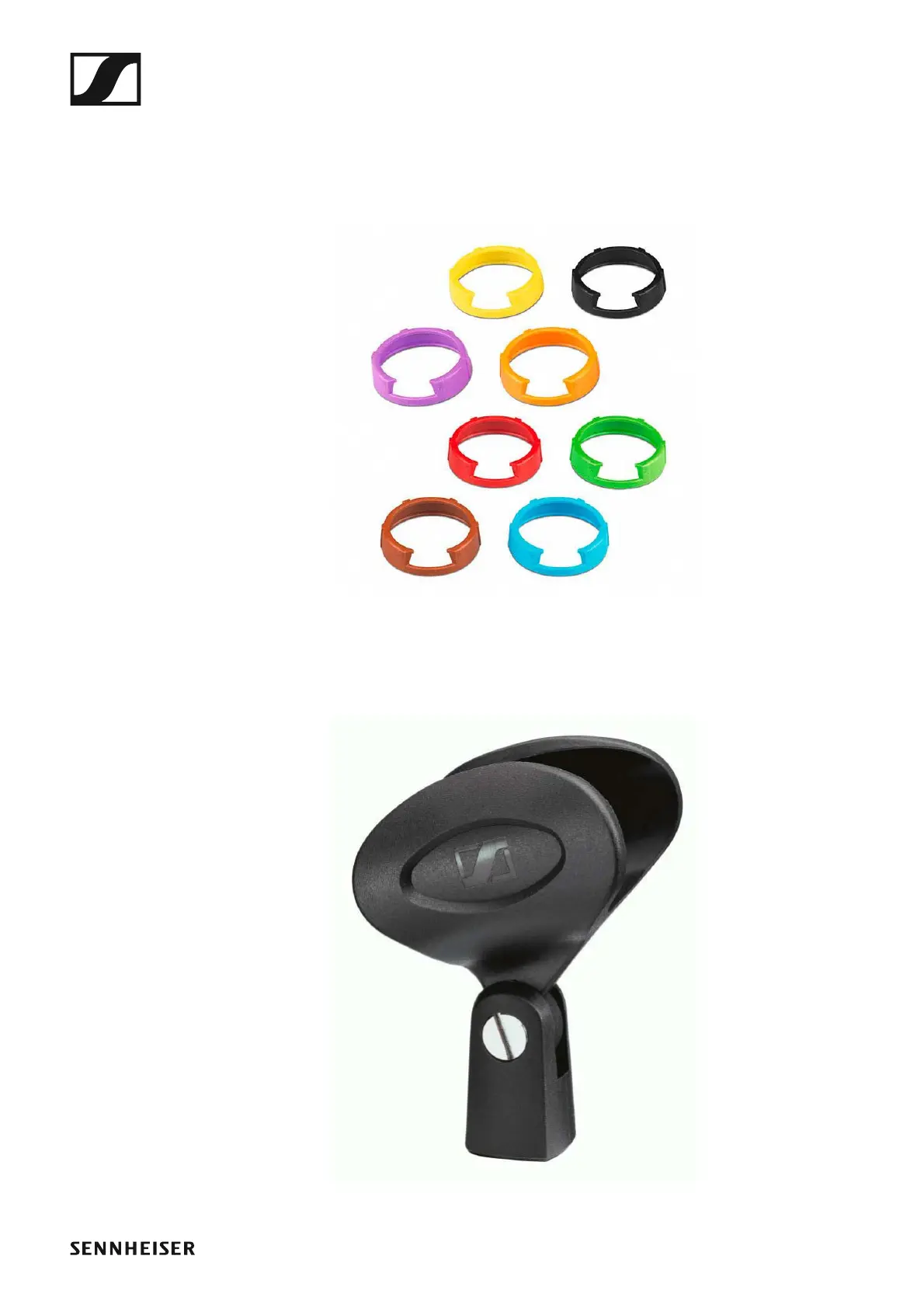

Color labeling set

• KEN 2, color labeling set for SKM handheld transmitters, article no.

530195

►

Microphone clamp

• MZQ 1, microphone clamp for SKM handheld transmitters, article no.

076670

►
