Using the EM 300-500 G4

Menu structure

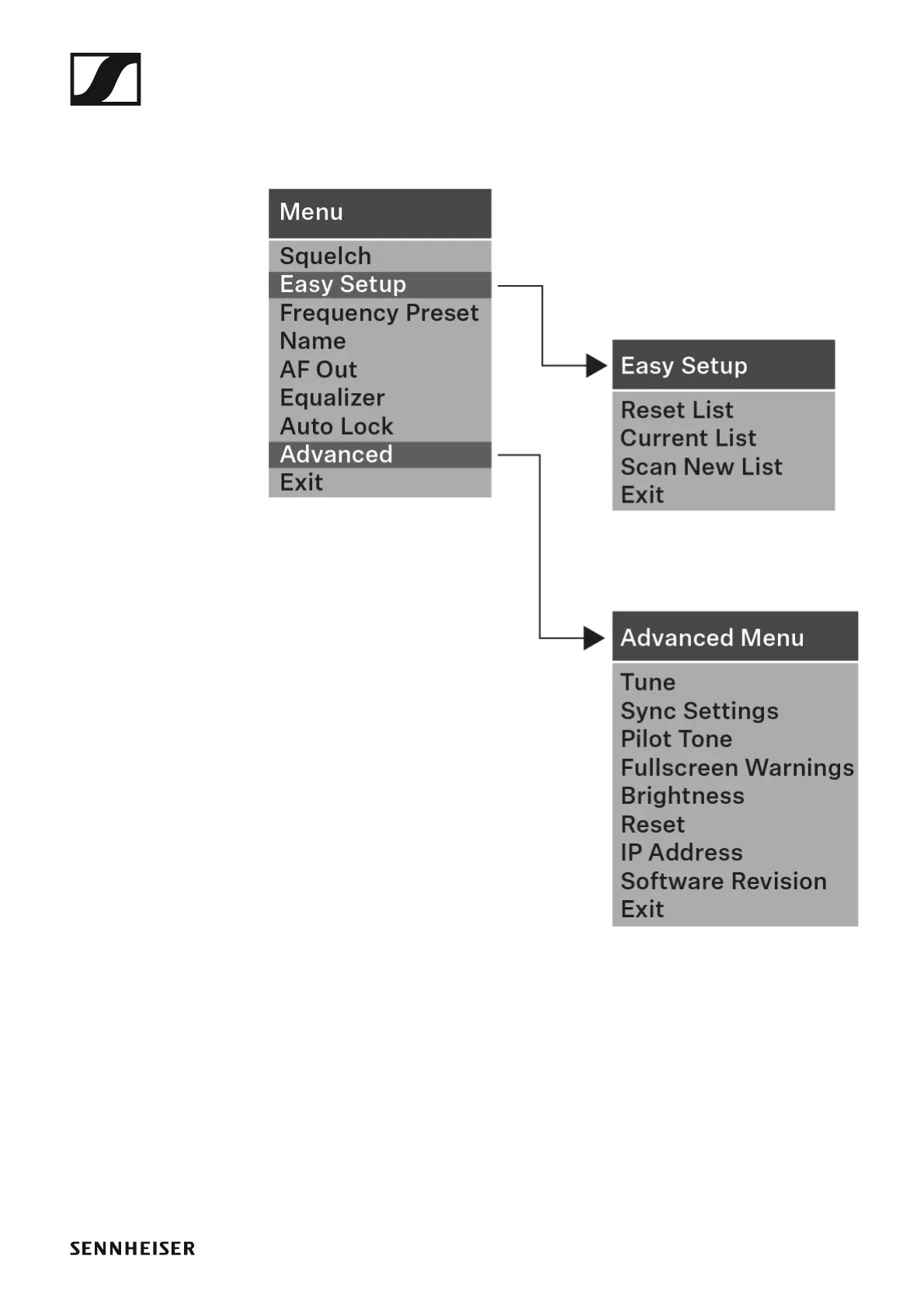

The figure shows the complete EM 300-500 G4 menu structure in an over-

view.

►
