Installing the SKM 500 G4

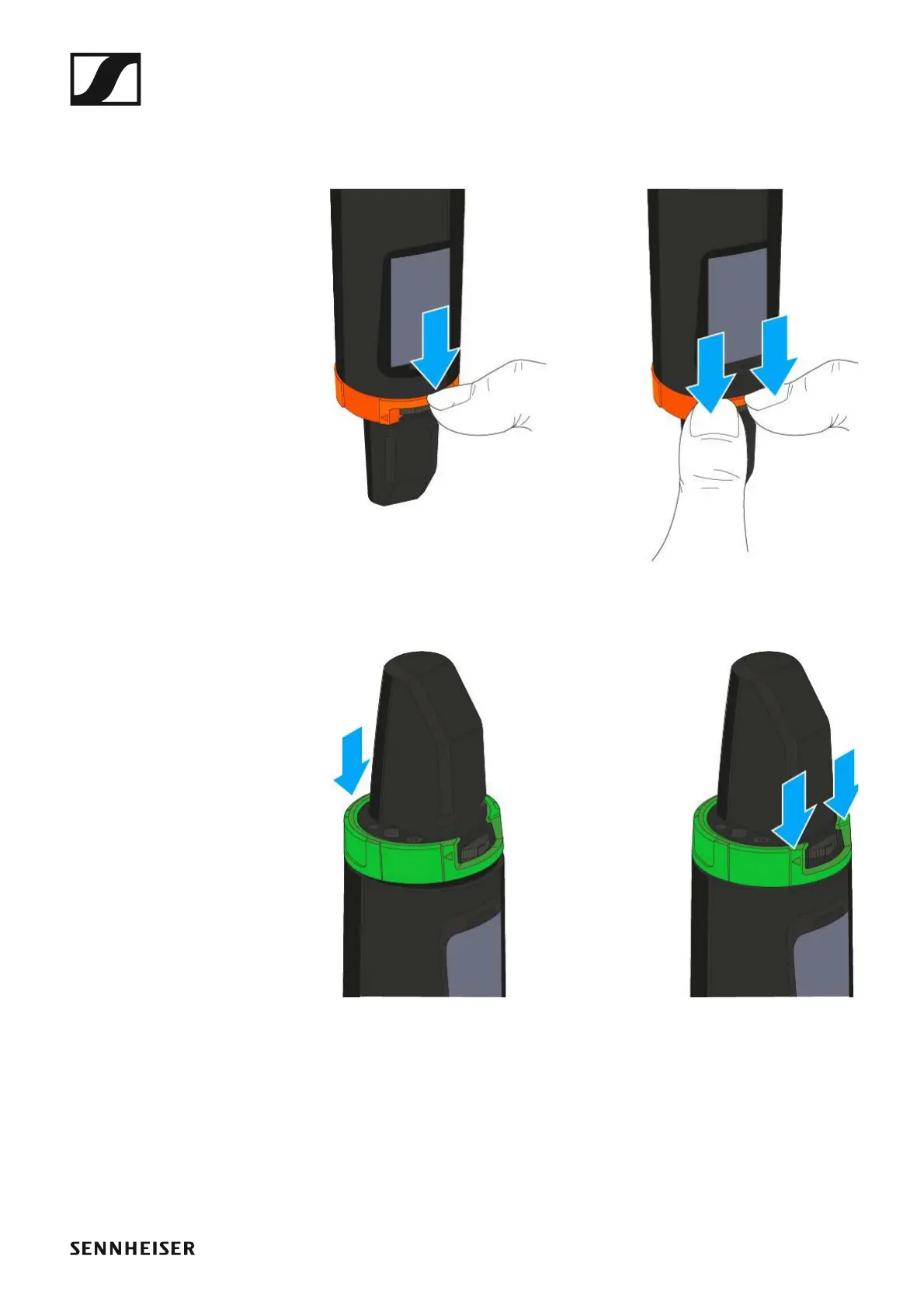

Changing the colored ring

To change the colored ring:

▷ Pull the colored ring off as shown in the diagram.

►

▷ Attached a colored ring in the color you want as shown in the diagram.

►
