• You can also enter the network address (the part of the IP address in which the bits
of the net mask are set) in the "Broadcast IP address" entry field when integrating the
MOVI-PLC
®
advanced DH.41B controller in an existing network, filled up with set bits
for sending broadcast messages in the specified network. In this case, no entry is re-
quired in the field "SMLP server IP addresses".
Example:
– IP address: 10.3.71.38
– Net mask: 255.255.255.0
– Broadcast IP address: 10.3.71.255

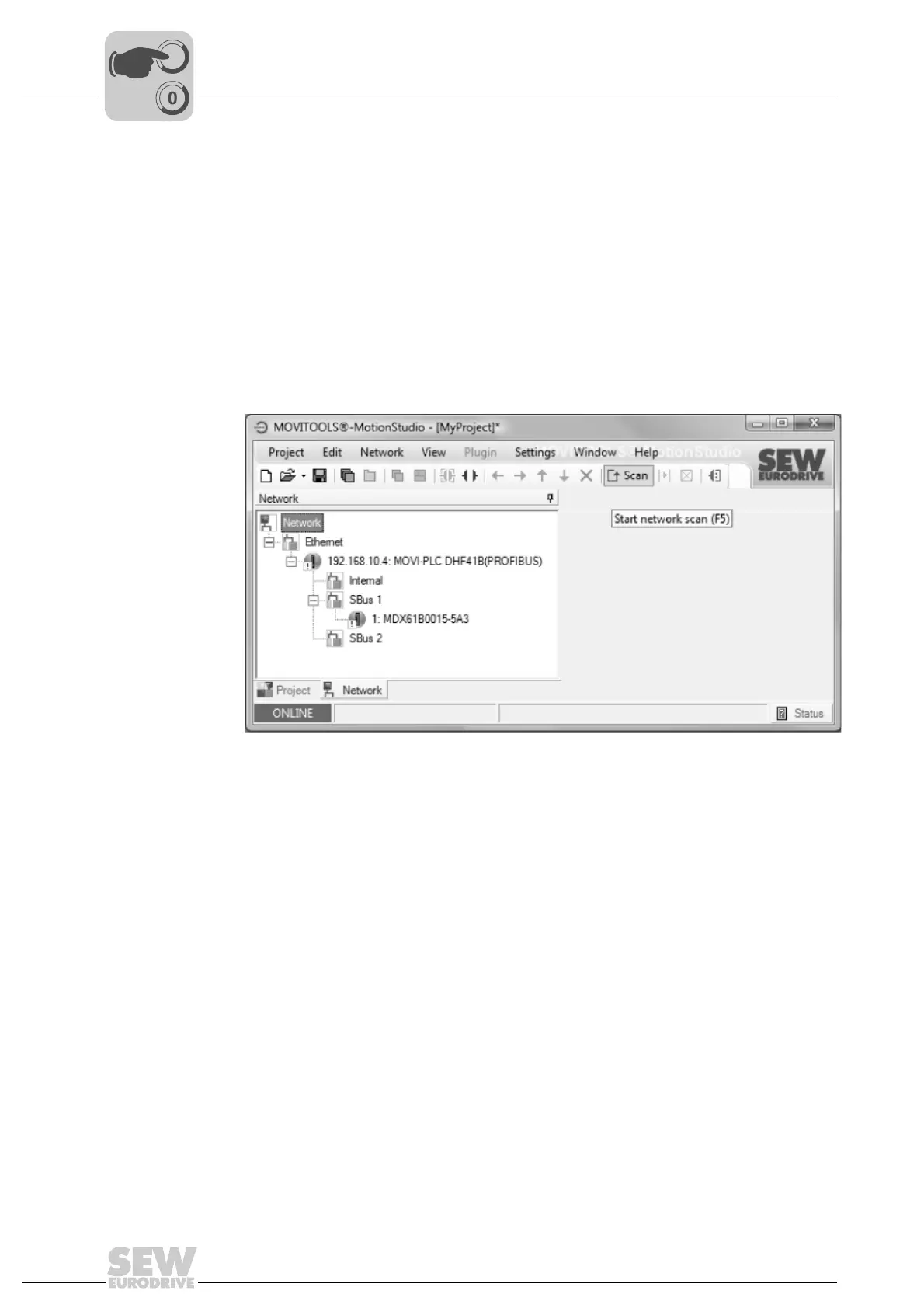

• Perform a network scan after this. To do so, click on the "Scan" symbol in
MOVITOOLS
®
MotionStudio (see following figure).
11951AXX
