Sharp AR-5726 - 2 Nd 駆動部 (2 Nd Drive Section)

– 55 –
Update : 2009/10/16
X

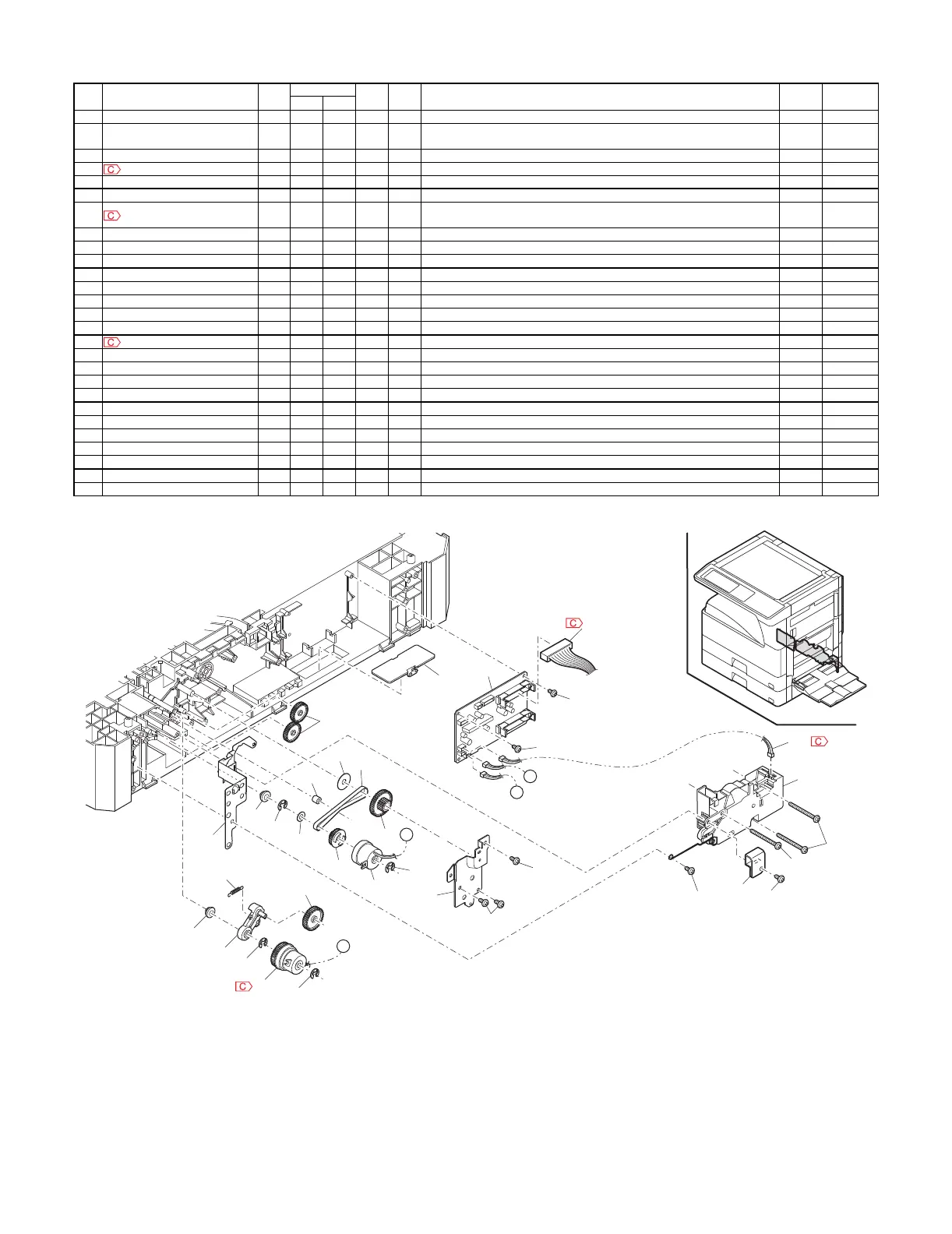

2nd 駆動部 (2nd drive section)
X
2nd 駆動部 (2nd drive section)
NO.
PARTS CODE
Inter-
change
PRICE RANK
NEW
MARK
PART
RANK
DESCRIPTION
TR No.
Effective
time
Ex. Ja.
1 PCO VP0 084QSZ Z AE DJ C
2nd bottom cover 2nd 底ｶﾊﾞｰ
2 CPW BF0 228QSE 1 AX FG E
2nd cassette interface PWB 2nd ｶｾｯﾄ中継
基板
3 XEB S73 0P0800 0 AC DD C
Screw(3×8) ﾋﾞｽ
4 DHA I-0 597QSP 1 -BFGN C
2nd multi step harness [Missing parts code] 2nd 多段ﾊｰﾈｽ
1st lot
5 NBR GC0 100FCZ 1 AC DJ C
Bearing 6 ﾍﾞｱﾘﾝｸﾞ 6
6 MAR MP0 018QSZ Z AD DJ C
Body joint arm 本体連結ｱｰﾑ
7 PCL C-0 031QSZ Z -AQEQ B
2nd paper feed clutch(42T) [Missing parts code] 2nd 給紙ｸﾗｯﾁ
(42T)
1st lot
8 XRE SP4 0-0600 0 AA DD C
E type ring(E4) E ﾘﾝｸﾞ
9 XRE SP5 0-0600 0 AA DD C
E type ring(E5) E ﾘﾝｸﾞ
10 MSP RT0203 QSZZ AC DJ C
Joint spring 連結ｽﾌﾟﾘﾝｸﾞ
11 NGE RH0119 QSZZ AD DJ C
Gear(36T) ｷﾞﾔ
12 NGE RH1207 FCZZ AF DS C
Joint gear(40T) 連結ｷﾞﾔ
13 CDA IU0024 RS58 AZ FQ E
2nd lift up unit 2ndﾘﾌﾄｱｯﾌﾟﾕﾆｯﾄ
14 XEB S740P3 0000 AC DD C
Screw(4×30) ﾋﾞｽ
15 XEB S740P1 2000 AA DD C
Screw(4×12) ﾋﾞｽ
17 DHA I-0474 QSP1 -BSMW C
LUM harness [Missing parts code] LUM ﾊｰﾈｽ
1st lot
20 LPL TM0203 QSZ1 AF DS C
Multi step drive plate 多段駆動ﾌﾟﾚｰﾄ
24 NGE RH0121 QSZZ AE DJ C
Gear(20T/45T/26P) ｷﾞﾔ
25 NBL TT0029 QSZZ AG DX B
Vertical transport belt 縦搬送ﾍﾞﾙﾄ
26 PCL C-0020 QSZZ AX FG B
Transport clutch 搬送ｸﾗｯﾁ
28 NPL YZ0027 QSZZ AD DJ C
Vertical transport pulley 縦搬送ﾌﾟｰﾘｰ
29 PSH EZ0250 QSZZ AB DJ C
Flange sheet ﾌﾗﾝｼﾞｼｰﾄ
30 NRO LP0008 QSZZ AD DJ C
Pulley ﾌﾟｰﾘｰ
31 PSH EZ0249 QSZZ AB DJ C
Flange sheet ﾌﾗﾝｼﾞｼｰﾄ
32 NBR GC0529 FCZZ AD DJ C
Bearing 軸受
33 LPL TM0176 QSZ1 AH EB C
Clutch earth plate ｸﾗｯﾁｱｰｽ板
34 PSH EZ0556 QSZZ AC DJ C
Harness holder sheet ﾊｰﾈｽ押えｼｰﾄ
a
a
b
b
10
5
6
9
8
12
14
PRP03928
1
2
3
3
14
13
15
15
15
20
8
26
28
31
9
32
30
29
25
24
33
15
11
34
4
7
17
55
