AR-5726/5731 MAINTENANCE 8 - 6

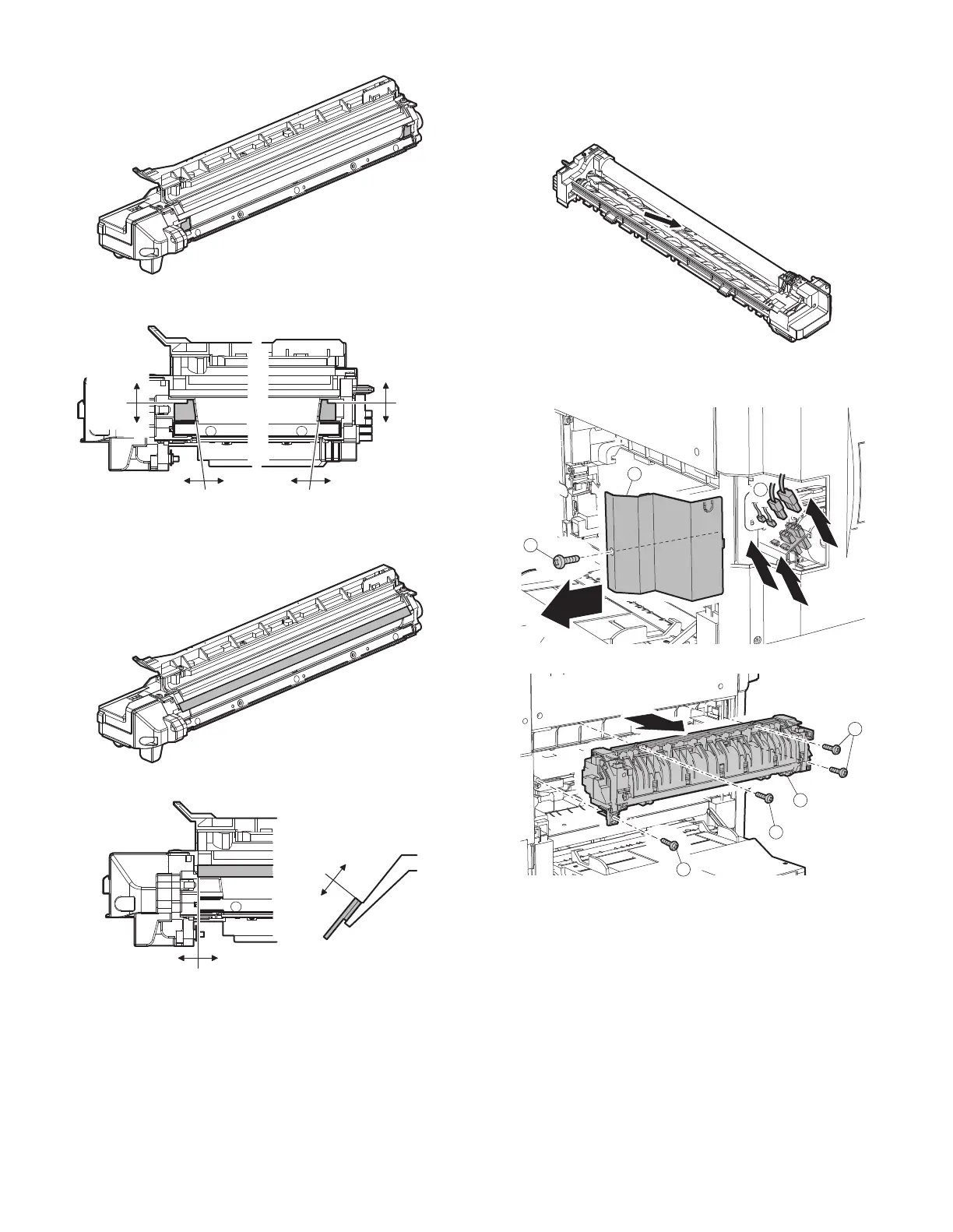

(3) DV side sheet F/ DV side sheet R
[DV side sheet F/ DV side sheet R attachment reference]
(4) DV blade
[DV blade attachment reference]
(5) Toner sensor
• Execution of cleaning the sensor must be made after discharging
used DV in DV replacement.
• Without removing the MG roller, use waste cloth to remove toner
from the sensor surface in the arrow direction.
• Clean the sensor only after removing used DV when replacing DV.
C. Fusing section
00.5 0 0.5
0
0.3
0
0.3
Projection edge
reference
Projection edge
reference
Molt
edge
reference
Molt
edge
reference
0
0.5
[Cross-section]
0
0.5
Bump
reference
Rib reference
3
1
2
1
1
1
2
