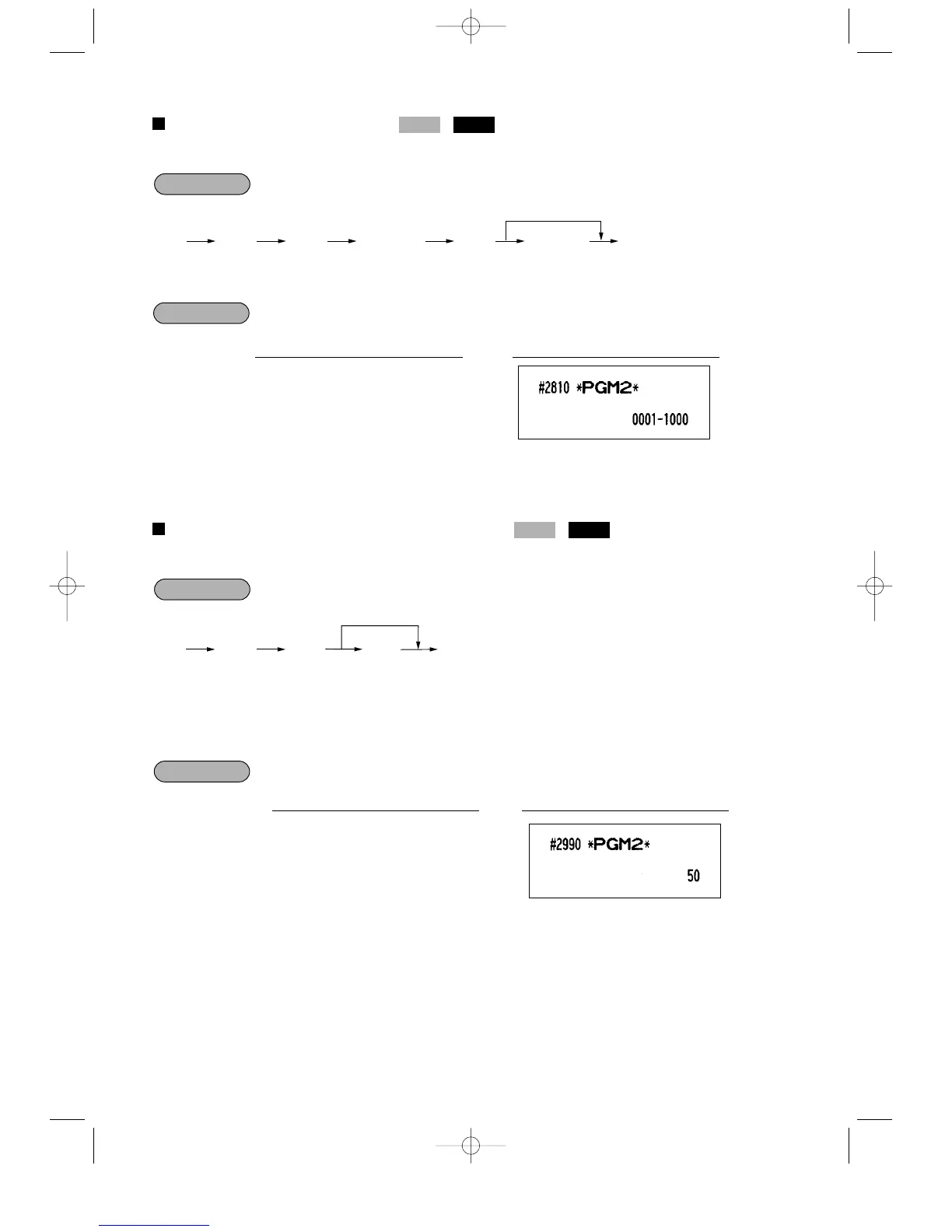

PBLU code programming

You can specify the range of PBLU codes available for the register.

Programming 1 for start code and 1000 for end code

Functional programming for the printer

You can program the printing density of the receipt/journal printer.

*AB: Printing density (00 – 99)

00 = 80% for standard density

50 = 90% for standard density

99 = 100% for standard density

Programming “90% for standard density”

2990

PrintKey operation

Example

2990

*AB

To program zero

Procedure

2990

PGM 2

2810

1000

PrintKey operation

Example

2810

@ @

Start code

(1 - 9999)

To program only one code

End code

(1 - 9999)

Procedure

2810

PGM 2
