139

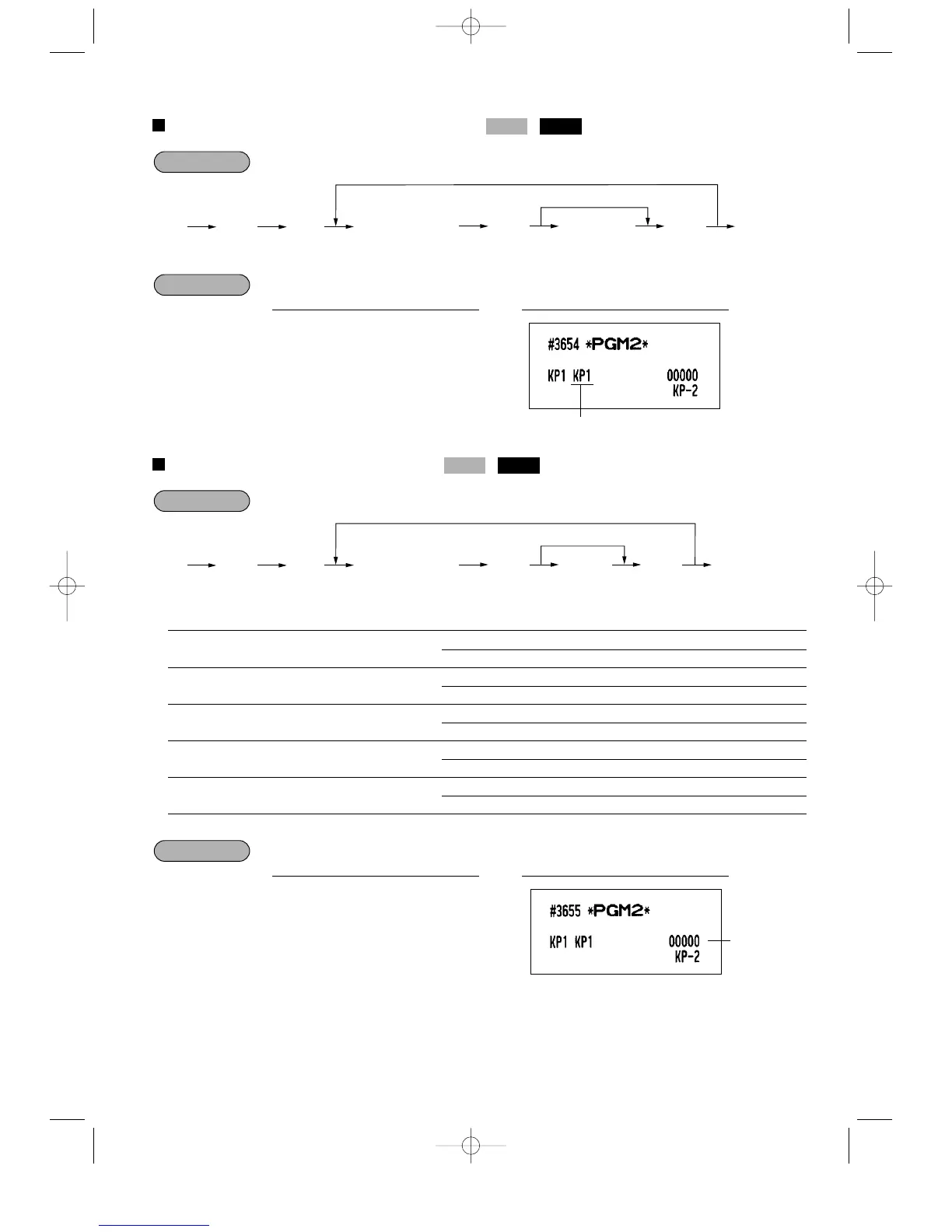

Remote printer name programming

Print format for remote printer

* Item: Selection: Entry:

A Taxable status print Not print 0

Print 1

B Q’ty print when q’ty is “1”. Not print 0

Print 1

C Dept./PLU/UPC code print Not print 0

Print 1

D Unit price print Not print 0

Print 1

E Amount print Not print 0

Print 1

ABCDE

3655

00000

PrintKey operation

Example

3655

Remote printer no.

(1 or 2)

*ABCDE

To program zero

Procedure

3655

PGM 2

Printer name

3654

KP1

PrintKey operation

Example

3654

Remote printer no.

(1 or 2)

Printer name

(max. 12 characters)

To program all spaces

Procedure

3654

PGM 2

ER-A410/A420(SEC)-4 03.12.22 0:20 PM Page 139
