138

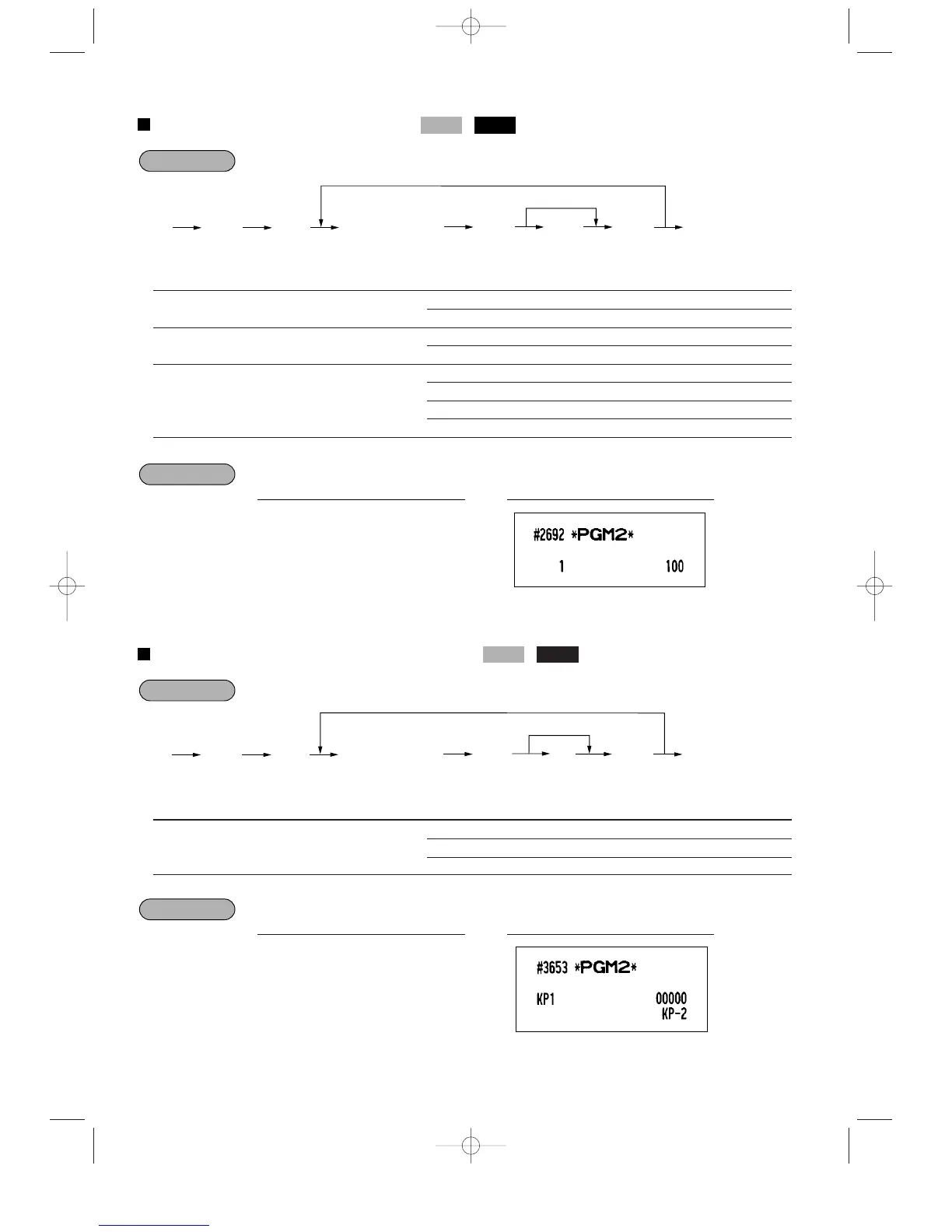

Remote printer programming

* Item: Selection: Entry:

A Logo text printing Not print 0

Print 1

B Auto cutter function Disable 0

Enable 1

C Type of the printer TM-U200 0

TM-U230 1

TM-T88(3) 2

TM-T88(3)+Logo 3

Second remote printer programming

* Item: Selection: Entry:

A Second remote printer Nothing 0

Remote printer 1 1

Remote printer 2 2

3653

PrintKey operation

Example

3653

Remote printer no.

(1 or 2)

To program zero

Procedure

3653

PGM 2

2692

100

PrintKey operation

Example

2692

Remote printer no.

(1 or 2)

*ABC

To program zero

Procedure

2692
