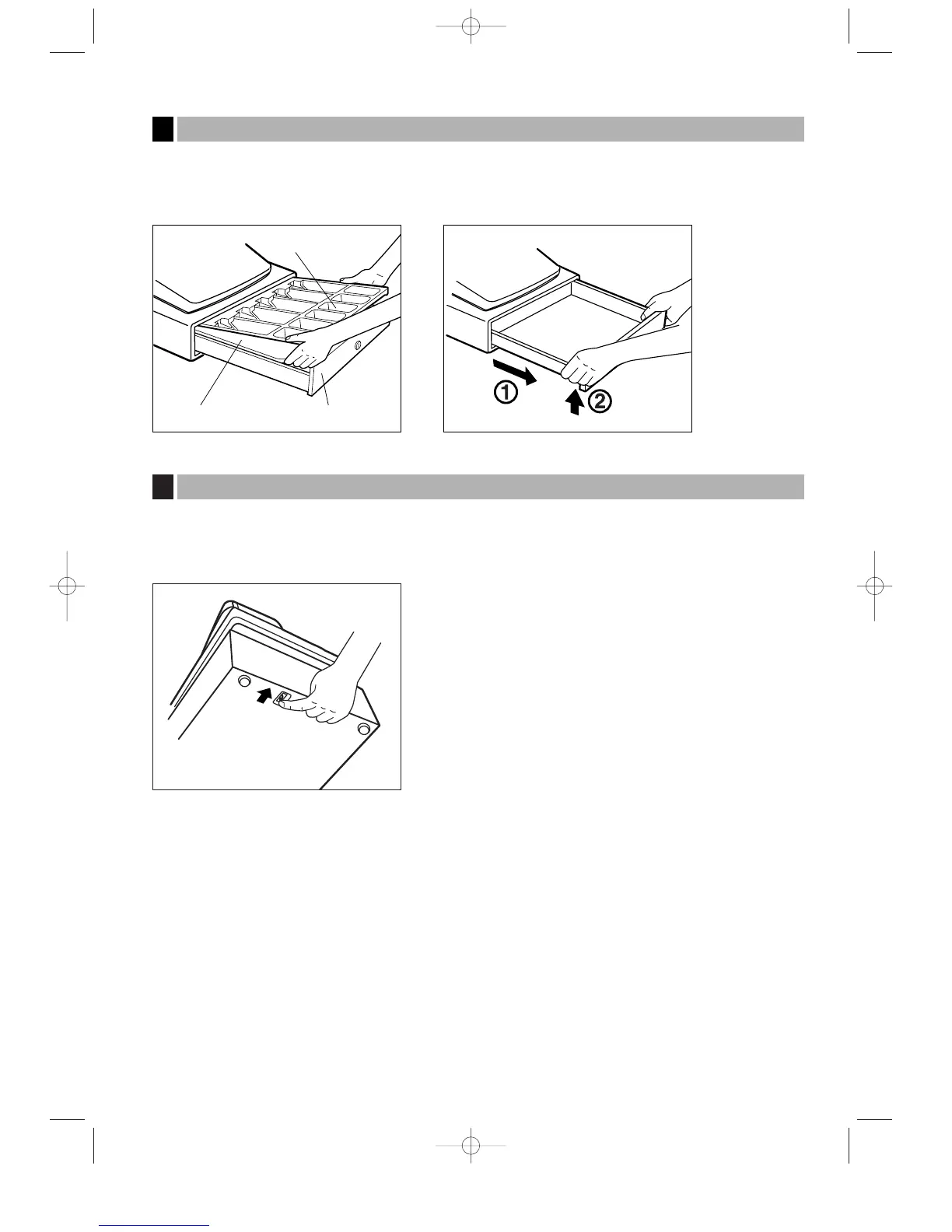

The till in the register is detachable. After closing your business for the day, remove the till from the drawer and

keep the drawer open. To detach the drawer, pull it forward fully with the till removed, and remove it by lifting it

up. The 6-denomination coin case is detachable.

The drawer automatically opens normally. However, when power failure is encountered or the machine

becomes out of order, slide the lever located on the machine bottom toward the rear. (See the figure below.)

The drawer will not open if it is locked with a drawer lock key.

Opening the drawer by hand

Removing the till and the drawer

Coin case

Drawer

Lever

183

Till

ER-A410/A420(SEC)-5 03.12.19 0:48 PM Page 183
