Tax rate

Lowest taxable

amount

Tax table

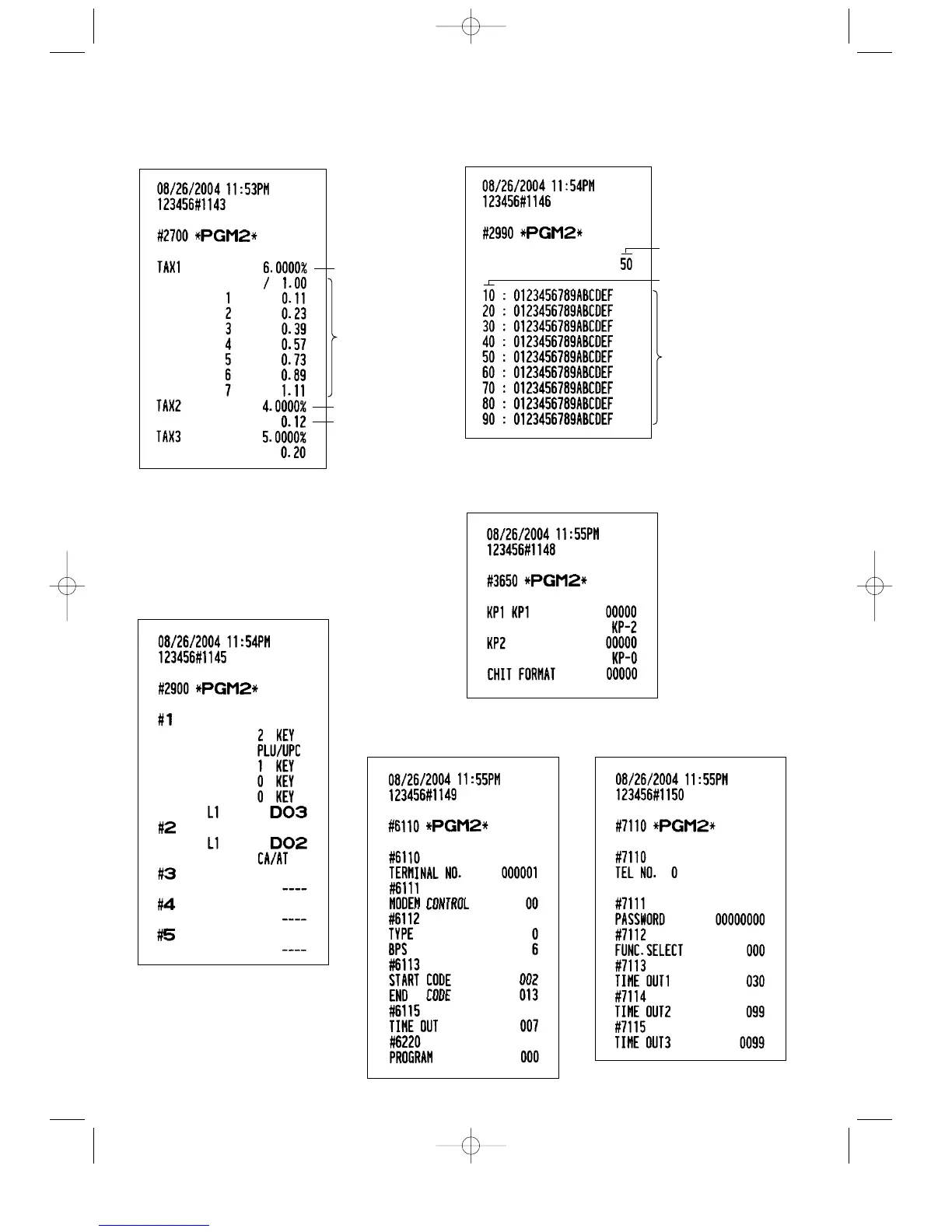

13 Reading of programmed tax tables and rates

(Reading in the PGM2 mode)

15 Reading of programmed items for the thermal

printer (Reading in the PGM2 mode)

Printing density

Entered Value

Printing density

example

17 Reading of ON-LINE preset

(Reading in the PGM2 mode)

14 Reading of programmed items

for auto keys

(Reading in the PGM2 mode)

18 Reading of CAT preset

(Reading in the PGM2 mode)
