SECTION 6 OPERATION
54
263-13228
6

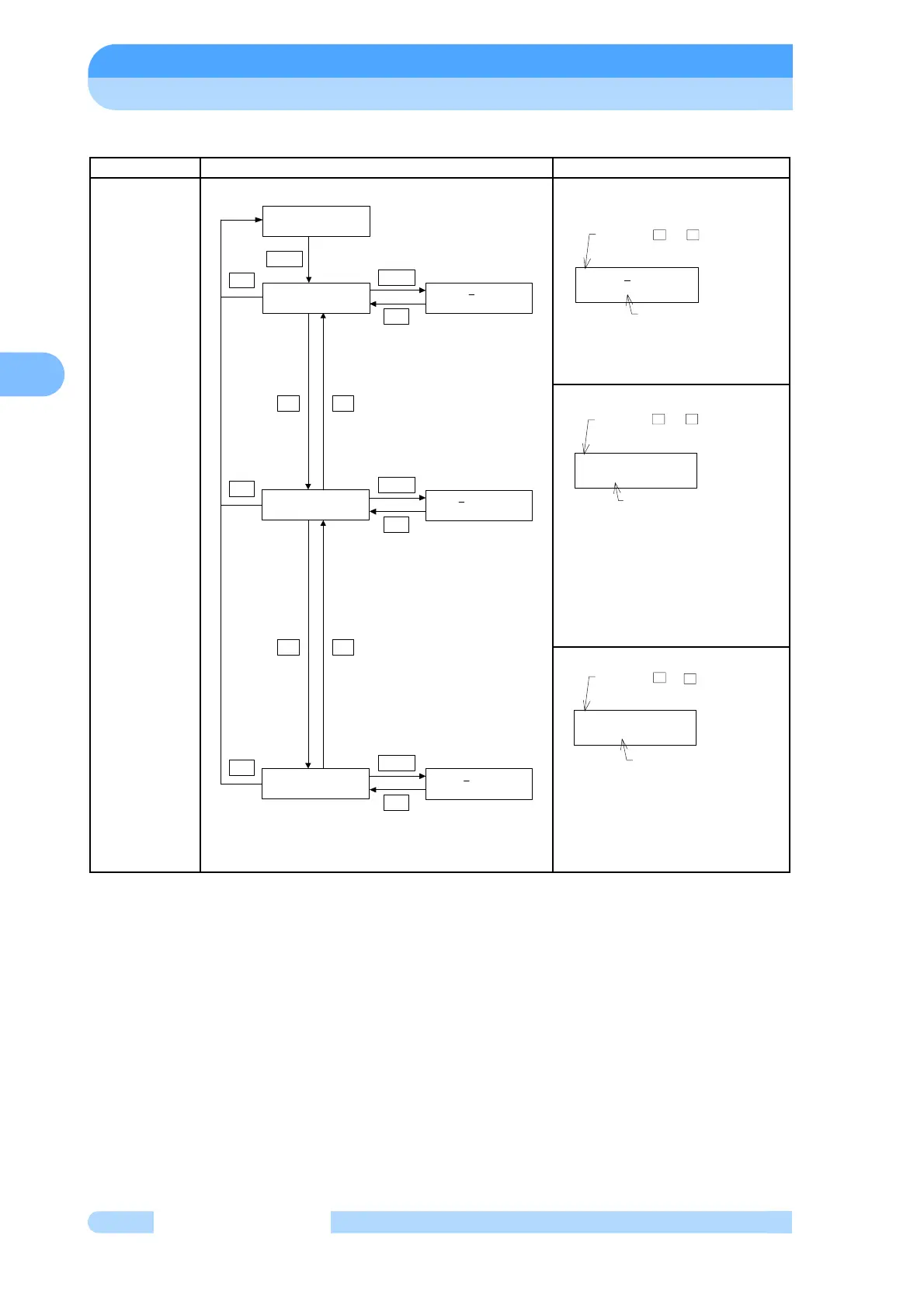

Mode Operation and LCD Display Description of Display
ROTATIONAL
SPEED
SETTINGS
Speed display setting
The format of the motor speed
display in the pump monitor mode is
changed.
Speed setting
The pump rotates at the rated
speed when NORMAL is selected.
The pump rotates at the speed set
with the low speed setting when
LOW SPEED is selected. See
Section 6.5 "Variable Speed
Operation" for details.
Low speed setting
When the speed setting is set to
LOW speed or the remote-control
signal designates low speed, the
pump continues operation at the
speed set by the low speed setting.
ROT.SPEED
SPEED=NORMAL
+-
ROT.SPEED
LOW SP=100.0%
+-
SET
SELECT
SETTINGS
ROT.SPEED
DISPLAY=%
(% )
ROT.SPEED
DISPLAY=%
SELECT
SET
SET
SET
SPEED=NORMAL
(NORMAL )
SELECT
SET
LOW SP=100.0%
(100.0%)
SELECT
SET
DISPLAY=%
(% )
Press the + or -
key to select between
%, rpm, or rps.
Previous Setting
SPEED=NORMAL
(NORMAL )
Press the + or - key
to select between normal
speed or low speed.
Previous Setting
LOW SP=100.0%
(100.0%)
Press the + or - key
to select a value
between 50 and 100.
Previous Setting
To Next Page
