Shimano STEPS E6000 - Saddle Height Adjustment: Quick-Release Skewer

EN-16 Original User Guide | Pedelec Shimano Steps E6000 Version 1
DANGER
Itshouldbesohardtoclosethequick-releaseskewerthatyouneed
tousetheballofyourhand(120N:correspondstoaweightforce
of12kg).Youshouldhavethemarkoftheleverimprintedonyour
hand. Otherwise, it could open when you are cycling, which could
lead to the seatpost coming loose and causing you to fall. If you close
the quick-release skewer too tightly, the seatpost can break; if this
happens when you are cycling, you could fall.
Quick-release
skeweristooeasy
to close
1. Turn the adjustment nut
clockwise.
2.
Swing the quick-release
skewer closed again.
Quick-release skewer
Adjustment nut
Quick-release skewer opened
Quick-release
skeweristoosti
to close
1. Turn the adjustment nut
anticlockwise.
2.
Swing the quick-release
skewer closed again.
3. Try to twist the saddle to check that it is rmly xed.

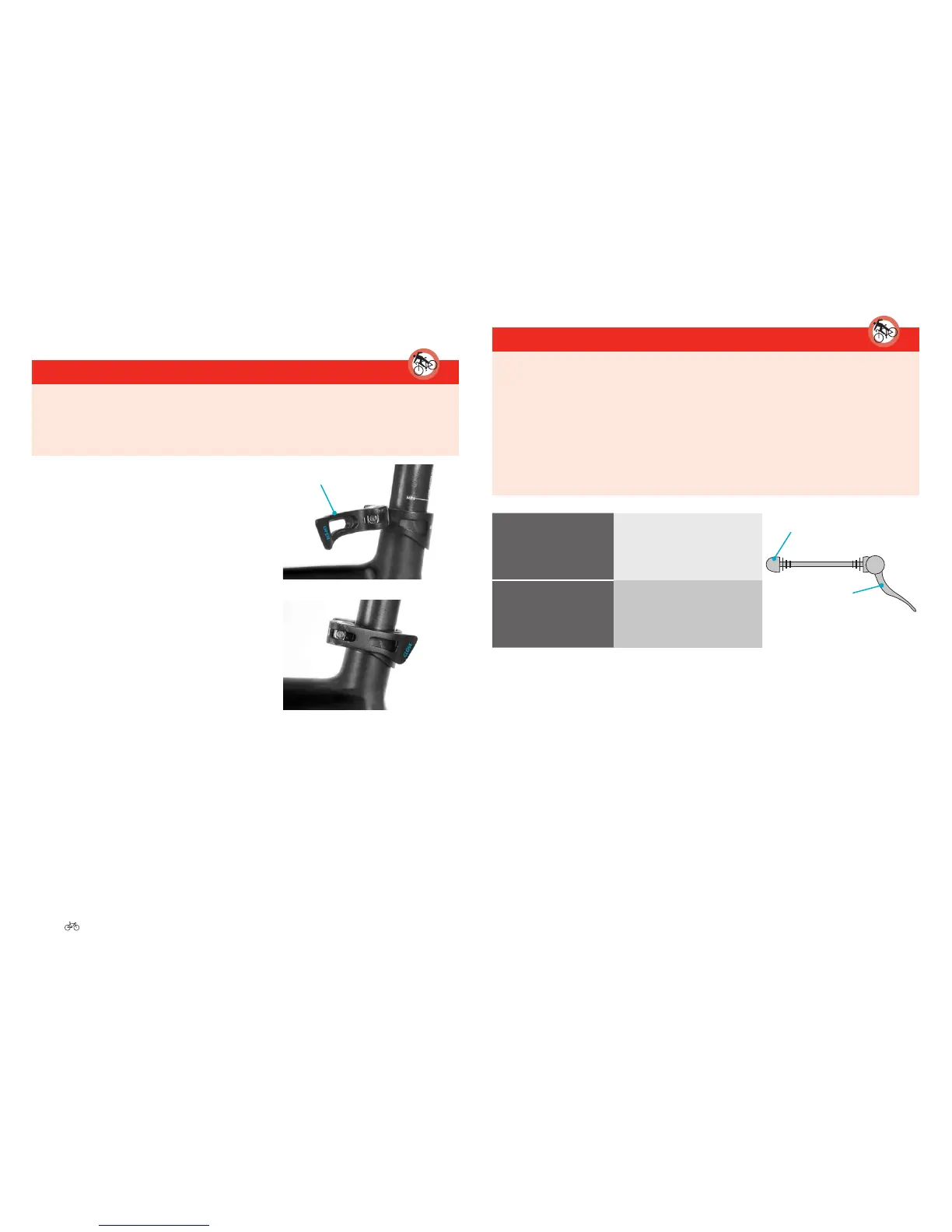

3.2.3 Adjustingthesaddleheight:Quick-releaseskewer
*
DANGER
Thequick-releaseskewermustbecorrectlyclosedbeforeyouseto.
Otherwise the seatpost can loosen or fracture – if that happens while
you are riding the bike you could fall o, resulting in serious injuries.
1. Open the quick-release skewer by
swinging the lever by 180˚. You will
now usually be able to see the word
‘OPEN’ on the inside of the lever.
2. Close the quick-release skewer by
swinging the lever by 180˚. You will
now usually be able to see the word
‘CLOSE’ on the outside of the lever.
Quick-release skewer
For1. Quick-release skewer open
For2.Quick-release skewer closed
*dependent on model
